Slow and Clean OM617 Turbo Complete Rebuild

Well, I can now say I understand why there are only a handful of people who dive deep down into the depths of these older Mercedes engines. I suppose its not worth spending thousands of dollars on a rebuild to most people when you can go buy a decent running engine for a couple hundred dollars. I suppose its most interesting to everyone to see the pictures and hear the struggles and successes of other peoples journeys. So here is a thread that is going to follow this build from the start to the beautiful moment where the key turns and the engine is running again. This is the exact opposite of a quick and dirty rebuild where it takes one weekend and $100 in used parts. Be warned, this will be EXTREMELY Picture heavy. but that is what everyone wants isn't it? Hopefully this can end up being a very helpful and informative thread to all the wrench-ers out there! I also hope that this isn't the last of my threads, and by the time im done with this car I will have yielded many helpful and informative threads on all the cars systems. So.... Here we go.

Obviously, the first step was to remove the engine. An engine puller is 100% absolutely necessary, with a leveler being extremely helpful to lean it back so you can get the tranny leaned back. This step is fairly simple and doesn't have too many tricks... The oil pressure gauge is always a tricky line to get off... and don't forget the ground cables. Other than that though, label everything and that's the easy part. I'm sure most people have the issue of their engines leaking EVERYWHERE, and honestly, that was one of the main reasons for starting this project.... So once the source of the leak was removed to be fixed, it was necessary to clean up all its mess... It took about 2 days, and the pictures don't really even do it justice, (see attachment. Sorry no before picture, switched cameras 3 times throughout this whole project) but after many bottles of different cleaners and rolls of paper towels the engine bay was a beauty. Simple Green seems to be a praised product by many of the people on this forum, but when it came down to it, it didn't really cut it. I made a secret potion that was a mixture of simple green, and like 3 different cleaners. It worked good for the light stuff, but anywhere that was flat there was a very thick layer of dirt oil mixture.. Oddly enough, foam oven cleaner did a great job. sprayed it on thick, let sit overnight, and it literally wiped off the next day.
Next was the disassembly of the grotesque engine... I will write that up soon. There isn't very many pictures from the beginning of the project, but gets heavier as time goes on. Please leave your comments and questions below!
Attached Thumbnails
Slow and Clean OM617 Turbo Complete Rebuild-enginebay.jpg

Last edited by Mersadie; 01-02-2014 at 09:55 PM.
Reply With Quote
  #2
Old 01-01-2014, 10:02 AM
oldsinner111's Avatar
love all animals

Join Date: Nov 2008
Location: bristol,tn
Posts: 5,444
thats what i use oven cleaner to strip grease and paint so I just have to repaint
__________________
usaf vet,dumb ass,repukes love the wealthy,dems use to protect working citizens.Both sides are parasites
Reply With Quote
  #3
Old 01-01-2014, 10:09 AM
mach4's Avatar
Registered User

Join Date: Jul 2011
Location: San Diego County, CA
Posts: 2,736
Looking forward to future episodes documenting the process.
__________________
Current Stable
  • 380SL (diesel)
  • Corvette C5
  • Manx
  • Baja Bug
  • F350 Powerstroke
  • Auburn Boattail Speedster replica
Reply With Quote
  #4
Old 01-02-2014, 01:31 AM
Colorado220's Avatar
Registered User

Join Date: Dec 2006
Location: COLORADO
Posts: 631
Looking forward to the project!
Reply With Quote
  #5
Old 01-02-2014, 10:53 PM
Registered User

Join Date: Dec 2013
Location: Atlanta, Georgia
Posts: 25
Engine Dissasembly

Ok, so I uploaded to the Engine Bay picture on the last post. It didn't upload last time. Sorry there was no "before" pic.... but im sure everyone has seen a disgusting greasy and grimy engine bay. You should be able to get an idea of just how bad it was with this picture of the engine before cleaning... it was horrid. I've decided to not paint the engine bay because I don't want to do a crappy job with a color that doesn't even match.... I plan to get a paint job within the next year hopefully, so that can be done then.

So, there are no pictures of the engine fully assembled, but once again, if you're reading this thread you've probably seen an om617 with all the pumps on etc. The engine is overall extremely easy to disassemble. There are just a few quirks that you have to be aware about before you begin so that you don't end up breaking things.... And yes, I might be speaking from experience. It is 100% MANDATORY to label every part that you take off. have a big fat box of ziplocs and a sharpie and you will be so happy when it comes time to assemble. I suggest putting a piece of masking tape on the bag and writing on that because now that i am back to the assembly point i am seeing that some of the writing has rubbed off and that could become disastrous. After all the pumps and brackets are removed (see first photos) you hit your first difficult thing. All the timing chain rails, which are usually in major need to be replaced, are attached by pins that are threaded on the inside. They have to be removed via slide hammer. It can be tricky but if you get the right bolt/washer/socket(or tube) combo it should be fairly effortless. Make sure the bolt has plenty of threads in the pin so you don't just shear the first few threads off... A tap and die set is very helpful throughout this whole build but especially here if they are really caked. Next is the harmonic balancer. I pulled this with a generic pulley/ balancer puller which worked fine, except for the fact i used the balancer bolt and washer to rest the tip of the puller on so it didn't mess up the threads in the crank. Well, to my surprise, the balancer keys are round (see picture). so when i started cranking down and pulling with the puller and that bolt, it sheared the keys .... Don't make that mistake. watch what you use to protect the threads... make sure it doesn't cover the keys. When removing the head it is beyond necessary to make sure you get the proper triple square twelve point bit for the head bolts. You will strip them if you try to use anything else. I drew out the diagram of the head and head bolts (see pic) so I could place them in it. This is necessary if you plan to reuse head bolts, but nothing more than storage if you're buying new ones.

I'm sure that some veterans out there know all of this stuff, but i really hope my experiences can help some of you guys out there so you don't go through the same hassle as me WHEN you tackle your projects

As you can see this engine was horrific as far as dirtiness goes. I think that the majority of the leaks came from the turbo drain tube, the oil cooler lines, and many valve jobs without replacement of the valve cover gasket... I dread the day when she starts leaking oil again.....
Attached Thumbnails

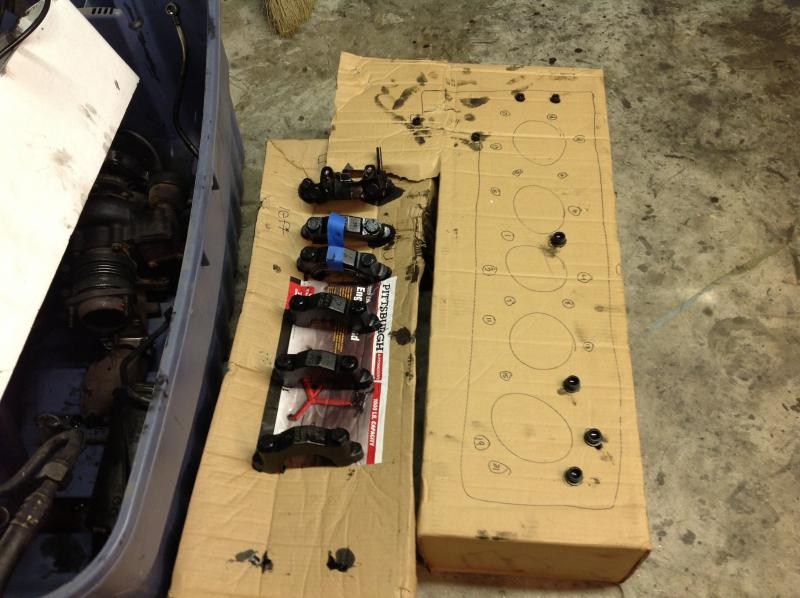

Slow and Clean OM617 Turbo Complete Rebuild-img_0501.jpg   Slow and Clean OM617 Turbo Complete Rebuild-img_0502.jpg   Slow and Clean OM617 Turbo Complete Rebuild-om617_harmonic-balancer-graphic_6170300530_qwxpozl.jpg   Slow and Clean OM617 Turbo Complete Rebuild-img_0499.jpg
