Product review - Hantek 1008C

G'day Folks,

With the purchase of a petrol engined monstrosity I've found the need for an oscilloscope to set up the ignition system and fuel injection system.

At first I thought I could pick up a conventional oscilloscope for a few quid (well here it is euros) and see how things go. Unfortunately in my neck of the woods two channel pieces of junk with round 1950s screens seem to be fetching serious money for what they are...

...shopping around for the same money (just under 85 euros) I found a Hantek 1008C USB oscilloscope that plugs into ye olde laptoppe



It runs on ****dows (XP / 7 / 8) which for me is a serious down side but if I can boot up ****dows and leave it for half an hour to sort itself out (so there's a bit of forward thinking needed here!) I reckon I might be able to get some measurements done on the W201.

Here's a rough breakdown of what this little box of tricks has

It has a signal generator - I won't be needing this for W201 work but could come in handy later on

It has eight analogue input channels

It came with four BNC connectors and wires connected to crocodile clips

It came with one inductance probe that you can clip onto a spark plug wire (only on the insulation!!!) so you can do timing jiggery pokery

The system is designed for "Automotive" use so the bandwidth isn't quite like a normal Oscilloscope but seems pretty much ideal for what I think I can use it for.

So far I haven't used it in anger but I intend to be giving it a go quite soon.

I'll report back and say how I'm getting along with it and perhaps show some pictures of it in use.

If anyone has either this model or something similar I'm interested in hearing from you!
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #2
Old 01-04-2015, 12:00 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,453
Slow progress - bit of a steep learning curve trying to figure out the dodgy translated owners manual (the only other option is Chinese)

Note to self the attenuation for the HT25 probe (that fits on the insulation of the HT leads) is CC65 - CC1100 <= pain in the arse finding that in the documentation

I've got some measurements made but at the moment I don't know what they mean - oh well...

...here's what I'm trying to measure

I've got the HT probe fitted on the lead for cylinder #1



The connections to the X11 socket are well dodgy at the moment => welding wire and crocodile clips is not ideal. (I'm in the process of getting a solution sorted here though => Plug for small X11 diagnostic socket? )



Pin 1 is for the flywheel sensor
Pin 3 is for the O2 / lambda
Pin 4 is on the low tension -tve side of the coil
Pin 7 is the TDC sensor on the front of the engine



I've saved some data from a rough measurement. I'll show that later once I've worked out what it means and where I've gone wrong.
Attached Thumbnails
Product review - Hantek 1008C-hantek-wiring1.jpg   Product review - Hantek 1008C-hantek-wiring2.jpg   Product review - Hantek 1008C-hantek-wiring3.jpg
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #3
Old 01-04-2015, 01:54 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,453
Examples of some measurements

Right I think this data is believable

The vertical resolution is pretty dreadful - far too close to the quantisation step sizes - so I need to work out how to get that a bit better. I hope I don't have to amplify the signals before they go into the scope (shouldn't have to - but hey this is cheap stuff)

All the horizontal plots are in seconds

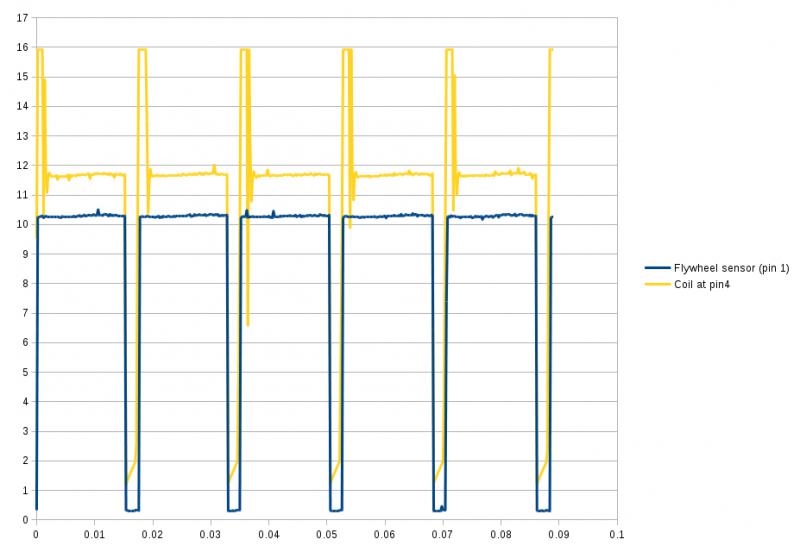

Rough measurements at idle (didn't measure the O2 output because those pins were gonna touch)

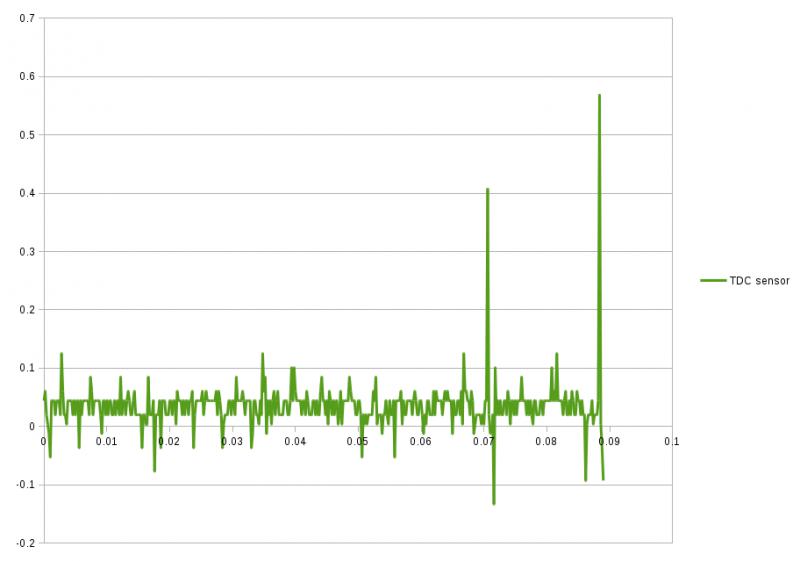

This is a strange one - front TDC sensor looks like it "blips" twice.

I'll have to check this out to be sure - the length of the measurement isn't long enough to really see that here.



This has the worst vertical resolution - I couldn't find the calibration value of the inductance probe (found it now - see above)



I got lucky seeing this one pulse on cylinder #1 within this measurement length.

If you look at the top graph you can see the four blips that come off the lumps on the flywheel on the M102. Four blips = one whole revolution of the crank.

Looking at the time of those blips you can see they happen within 0.7 seconds - that's about 14Hz (so 14 crank revolutions in a second) - that's about 840 rpm - idle speed which is what I did the measurement at...
Attached Thumbnails
Product review - Hantek 1008C-first-hantek-results1.jpg   Product review - Hantek 1008C-first-hantek-results2.jpg   Product review - Hantek 1008C-first-hantek-results3.jpg
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #4
Old 02-21-2015, 05:58 PM
Registered User

Join Date: Feb 2015
Location: Ireland
Posts: 16
This is interesting Stretch, please keep posting even if there aren't replies! I'm always interested in ways of peeking into the invisible stuff that's going on.
Does the 'scope unit run off the USB power, or is there a separate power supply for it?
Reply With Quote
  #5
Old 03-03-2015, 02:48 PM
Registered User

Join Date: Nov 2010
Location: TX
Posts: 3,606
Im also planning to buy this same unit, its a nice tool to own to look into ignition problems on coil over plug setup cars.
__________________
2012 BMW X5 (Beef + Granite suspension model)

1995 E300D - The original humming machine (consumed by Flood 2017)
2000 E320 - The evolution (consumed by flood 2017)
Reply With Quote
  #6
Old 03-04-2015, 02:24 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,453
Quote:
Originally Posted by pryantcc View Post
This is interesting Stretch, please keep posting even if there aren't replies! I'm always interested in ways of peeking into the invisible stuff that's going on.
Does the 'scope unit run off the USB power, or is there a separate power supply for it?
I sure will. I've recently been moving house and have just made a big leap westwards => I'm currently staying with my brother on the edge of Pembrokeshire...

...when I get to grips with the functionality of the thing I'll post up some more information.

Quote:
Originally Posted by Zulfiqar View Post
Im also planning to buy this same unit, its a nice tool to own to look into ignition problems on coil over plug setup cars.
I thought so too. But I'm not really sure if it is going to be as useful and I thought. I'd like to be able to change the X-axis to show degrees of crank revolution based on TDC trigger pulses which would then help with timing => so far I haven't managed it. It is all very well looking at seconds (or milliseconds) but it doesn't mean all that much for an automotive mechanic's perspective.
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #7
Old 04-13-2015, 05:31 PM
TnBob's Avatar
Registered User

Join Date: Dec 2009
Location: Shelbyville, Tn
Posts: 1,907
If you cant adjust the height and horizontal with this... might consider picking up an old O scope and hooking that up. I picked up a dual trace for $15 here.
__________________
1985 300D 198K sold
1982 300D 202K
1989 300E 125K
1992 940T

"If you dont have time to do it safely, you dont have time to do it"

"The democracy will cease to exist when you take away from those who are willing to work and give to those who would not."
Reply With Quote
  #8
Old 04-14-2015, 01:29 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,453
Quote:
Originally Posted by TnBob View Post
If you cant adjust the height and horizontal with this... might consider picking up an old O scope and hooking that up. I picked up a dual trace for $15 here.
That was exactly what I wanted in the first place but unfortunately round here there's a one in front of the 15...
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #9
Old 04-14-2015, 02:10 PM
TnBob's Avatar
Registered User

Join Date: Dec 2009
Location: Shelbyville, Tn
Posts: 1,907
Here ya just gotta love ebay and CL at times.
My scope came from ebay and was calibrated
about a yr before I got it.
__________________
1985 300D 198K sold
1982 300D 202K
1989 300E 125K
1992 940T

"If you dont have time to do it safely, you dont have time to do it"

"The democracy will cease to exist when you take away from those who are willing to work and give to those who would not."
Reply With Quote
  #10
Old 04-14-2015, 02:46 PM
TnBob's Avatar
Registered User

Join Date: Dec 2009
Location: Shelbyville, Tn
Posts: 1,907
Lots of user tips on youtube https://www.youtube.com/watch?v=f7dgZJ3mM_o

You mentioned the attenuation doc issue. This link take you to a pretty nice set.
www.hantek.com/Product/Hantek1008/Hantek1008_Manual.pdf
__________________
1985 300D 198K sold
1982 300D 202K
1989 300E 125K
1992 940T

"If you dont have time to do it safely, you dont have time to do it"

"The democracy will cease to exist when you take away from those who are willing to work and give to those who would not."
Reply With Quote
  #11
Old 04-16-2015, 09:15 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,453
Thanks Bob,

I'll have a look at that later on when I've got me ducks back in a straight line
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #12
Old 04-24-2015, 11:46 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,453
Well this isn't going too well!

Look what I needed to buy in a panic =>



To be fair(ish) to the Hantek it is in Wales and I'm in Holland at the moment - though figuring out duty cycle on that silly Windows computer interface was something I'm glad I don't have to worry about just yet.

I will continue with the Hantek thing later on once I get my living circumstances re-arranged.
Attached Thumbnails
Product review - Hantek 1008C-new-dvm.jpg
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #13
Old 04-24-2015, 10:06 PM
TnBob's Avatar
Registered User

Join Date: Dec 2009
Location: Shelbyville, Tn
Posts: 1,907
The Extech seems to be a decent meter.
__________________
1985 300D 198K sold
1982 300D 202K
1989 300E 125K
1992 940T

"If you dont have time to do it safely, you dont have time to do it"

"The democracy will cease to exist when you take away from those who are willing to work and give to those who would not."
