  #151
Old 10-03-2008, 10:44 AM
JayRash's Avatar
DON'T PANIC

Join Date: Jun 2005
Location: Beirut, Lebanon
Posts: 1,278
thank you tons ED as ever your a helpful Sir.
will keep u posted
__________________
Jay,
-----------------
-1995 Blue W202 C36 AMG (M) SOLD ;(
-1995 Black W140 S500 (Lady)
-1992 Black W124 E300 (Dima) (Ex-Mosselman
Twin turbo Kit).
-1988 Black W124 300 E 4-Matic.(Nadeen)
-1983 Brown W126 500SEL.(Old Lady)(Sold)
-1981 Gold W123 280CE.(Dareen)(Sold)
http://www.youtube.com/user/jayrasheed
Reply With Quote
  #152
Old 11-18-2008, 01:40 AM
JayRash's Avatar
DON'T PANIC

Join Date: Jun 2005
Location: Beirut, Lebanon
Posts: 1,278
Guys, i should have my dog first 5 speed man delivered mid next week cant wait. ANy way car is running gr8, but am still working around a few issues with the way am fuelin my car, all until i have the time to really do a new setup, either S/A or at least RBYCC way.
__________________
Jay,
-----------------
-1995 Blue W202 C36 AMG (M) SOLD ;(
-1995 Black W140 S500 (Lady)
-1992 Black W124 E300 (Dima) (Ex-Mosselman
Twin turbo Kit).
-1988 Black W124 300 E 4-Matic.(Nadeen)
-1983 Brown W126 500SEL.(Old Lady)(Sold)
-1981 Gold W123 280CE.(Dareen)(Sold)
http://www.youtube.com/user/jayrasheed
Reply With Quote
  #153
Old 11-23-2008, 11:22 AM
JayRash's Avatar
DON'T PANIC

Join Date: Jun 2005
Location: Beirut, Lebanon
Posts: 1,278

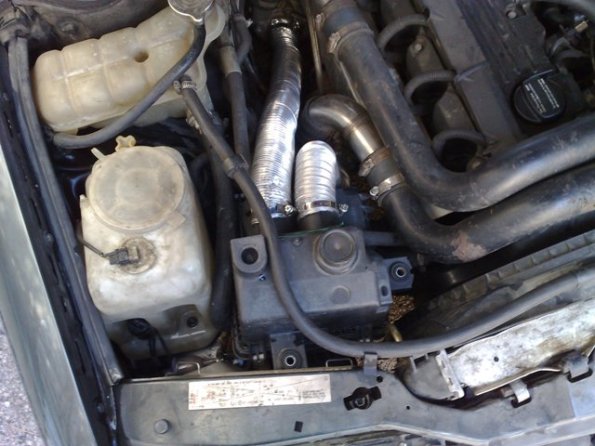

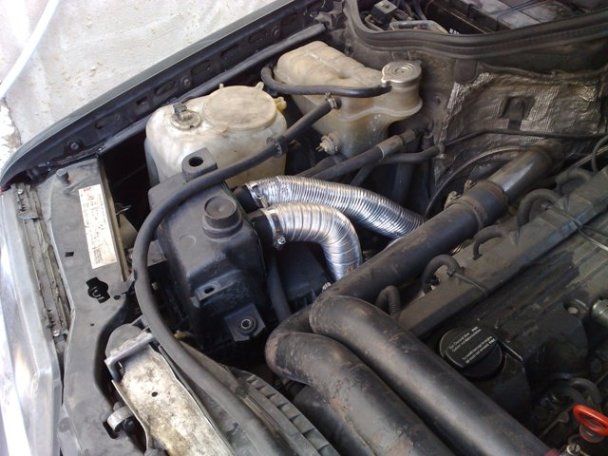

Finally i have installed a proper air box, its off a Mitsubshi EVO9 but installed upside down so that its feeds ar from under the right light. That box is good for some 350 hp on an EVO so it has enough in it for my setup. Boy its better pick up, top end, and even on noise. and best thing is it could almost pass as a stock part. Now making hard intake pipes is even easier. here are some pix on how it looks.
My w124 M103 e300 finally has the mosselman kit istalled-js-n95-photo2095.jpg

My w124 M103 e300 finally has the mosselman kit istalled-js-n95-photo2097.jpg

My w124 M103 e300 finally has the mosselman kit istalled-js-n95-photo2098.jpg
__________________
Jay,
-----------------
-1995 Blue W202 C36 AMG (M) SOLD ;(
-1995 Black W140 S500 (Lady)
-1992 Black W124 E300 (Dima) (Ex-Mosselman
Twin turbo Kit).
-1988 Black W124 300 E 4-Matic.(Nadeen)
-1983 Brown W126 500SEL.(Old Lady)(Sold)
-1981 Gold W123 280CE.(Dareen)(Sold)
http://www.youtube.com/user/jayrasheed
Reply With Quote
  #154
Old 11-24-2008, 09:24 AM
RBYCC's Avatar
Registered User

Join Date: Mar 2007
Location: DELAWARE
Posts: 1,041
Quote:
Originally Posted by JayRash View Post
Finally i have installed a proper air box, its off a Mitsubshi EVO9 but installed upside down so that its feeds ar from under the right light. That box is good for some 350 hp on an EVO so it has enough in it for my setup. Boy its better pick up, top end, and even on noise. and best thing is it could almost pass as a stock part. Now making hard intake pipes is even easier. here are some pix on how it looks.
Attachment 61257

Attachment 61258

Attachment 61259
Looks good...much better then the original Mosselmann design !!!
__________________
http://i19.photobucket.com/albums/b1...c/GOWIDE-1.jpg
1971 280SL ROADSTER
1988 300CE TWIN TURBO WIDEBODY
1994 E320 CABRIOLET
1999 C43 AMG
2005 G55K AMG
2008 CLK63 AMG BLACK SERIES
Reply With Quote
  #155
Old 11-24-2008, 11:13 AM
JayRash's Avatar
DON'T PANIC

Join Date: Jun 2005
Location: Beirut, Lebanon
Posts: 1,278
Quote:
Originally Posted by RBYCC View Post
Looks good...much better then the original Mosselmann design !!!
ya thanx man, its working gr8, i used to lose boost as i went up the mountain, now it just holds no matter what. my old filter was a cheap chinese 10$ one.

Had to use that one just cause it could fit there and still take only cold air..

any way, i still have some to go, like open the hood oer the intercooler, and fix my tuning once and for alll.
__________________
Jay,
-----------------
-1995 Blue W202 C36 AMG (M) SOLD ;(
-1995 Black W140 S500 (Lady)
-1992 Black W124 E300 (Dima) (Ex-Mosselman
Twin turbo Kit).
-1988 Black W124 300 E 4-Matic.(Nadeen)
-1983 Brown W126 500SEL.(Old Lady)(Sold)
-1981 Gold W123 280CE.(Dareen)(Sold)
http://www.youtube.com/user/jayrasheed
Reply With Quote
  #156
Old 11-25-2008, 04:42 PM
JayRash's Avatar
DON'T PANIC

Join Date: Jun 2005
Location: Beirut, Lebanon
Posts: 1,278
finally my mid-range fueling is solve, where the car used to run too lean unless u rev past 4300RPM or floor it all the way so as to activate the full load switch. its simple really, just have the full load switch trigered even on part thrott when there is boost (0.05 bar point).
Now the car feels like it has a big v8 pushing you, and i dont need to kick down every time i need the car to get going.
__________________
Jay,
-----------------
-1995 Blue W202 C36 AMG (M) SOLD ;(
-1995 Black W140 S500 (Lady)
-1992 Black W124 E300 (Dima) (Ex-Mosselman
Twin turbo Kit).
-1988 Black W124 300 E 4-Matic.(Nadeen)
-1983 Brown W126 500SEL.(Old Lady)(Sold)
-1981 Gold W123 280CE.(Dareen)(Sold)
http://www.youtube.com/user/jayrasheed
Reply With Quote
  #157
Old 11-27-2008, 10:20 PM
Registered User

Join Date: Oct 2008
Location: Canada / Lebanon
Posts: 223
pretty much impressive! you are making my way on turbocharging my W124 easier but i wont go bi-turbo, it will be an EVO 6 turbo.
will you be getting the normal W124 5 gang manual ? what about the clutch?
I will waiting for a new video run from your car! lol
PS: any dyno recently? and where are you doing it in Leb?
Reply With Quote
  #158
Old 11-28-2008, 01:44 AM
JayRash's Avatar
DON'T PANIC

Join Date: Jun 2005
Location: Beirut, Lebanon
Posts: 1,278
Quote:
Originally Posted by Chlippo View Post
pretty much impressive! you are making my way on turbocharging my W124 easier but i wont go bi-turbo, it will be an EVO 6 turbo.
will you be getting the normal W124 5 gang manual ? what about the clutch?
I will waiting for a new video run from your car! lol
PS: any dyno recently? and where are you doing it in Leb?
Hey,
My advise man when u take everything off to install the turbo kit, do take ur intake manifold off too. 2 things need to be done to make ur life easy. first there is a rubber boot (some pix posted in this thread few pages back) which u need to reinforce. I did it with a fiberglass cast. Any way while doing this try and incorporate two additional injectors either to fin into the boot just above the throttle body, or have ur manifold machined to take the injectors just below the throttle body,

Believe me man, it is not worth it trying to work around the CIS and its complications, like i have been doing for the last 7 months.
Every time i think i cracked an issue i find another. Now that i have worked around the low RPM fueling am only to find out that for some reason the car now is still running lean at around 3000 till 4000 rpm if boost is 0.5 bar.

any way if i recall right you live in Canada, try and get the split second controller for additional injectors on your way here.

as for where am doing the car, well am working on it in my free time at home.
Installing the copper HG was done at my mechanic's shop
as well as installing the turbos and the exhaust manifolds was done there.

the rest and all the fueling fixes are my doings, i dont think any understand how to work around the CIS.

keep us posted man
__________________
Jay,
-----------------
-1995 Blue W202 C36 AMG (M) SOLD ;(
-1995 Black W140 S500 (Lady)
-1992 Black W124 E300 (Dima) (Ex-Mosselman
Twin turbo Kit).
-1988 Black W124 300 E 4-Matic.(Nadeen)
-1983 Brown W126 500SEL.(Old Lady)(Sold)
-1981 Gold W123 280CE.(Dareen)(Sold)
http://www.youtube.com/user/jayrasheed
Reply With Quote
  #159
Old 11-28-2008, 10:51 AM
Registered User

Join Date: Oct 2008
Location: Canada / Lebanon
Posts: 223
i was reading the whole thread....a lot of things in here!
my car is waiting so i can complete all the kit and parts i need before i start working on it, basicly i am going evo turbo, C230 Kompressor intercooler and as you are suggesting two more injection.
i am not in a hurry since my daily drive is a 350hp C32 amg.

what happened to your EHA?

i will be in leb for xmas, if u need anything from here let me know
maybe ill give you a call to come and see your car if you dont mind.
Reply With Quote
  #160
Old 12-08-2008, 02:34 AM
JayRash's Avatar
DON'T PANIC

Join Date: Jun 2005
Location: Beirut, Lebanon
Posts: 1,278
Chlippo,

will be glad to see u here, and i demand a ride in the c32. will catch up with u here then.
__________________
Jay,
-----------------
-1995 Blue W202 C36 AMG (M) SOLD ;(
-1995 Black W140 S500 (Lady)
-1992 Black W124 E300 (Dima) (Ex-Mosselman
Twin turbo Kit).
-1988 Black W124 300 E 4-Matic.(Nadeen)
-1983 Brown W126 500SEL.(Old Lady)(Sold)
-1981 Gold W123 280CE.(Dareen)(Sold)
http://www.youtube.com/user/jayrasheed
Reply With Quote
  #161
Old 12-23-2008, 03:06 PM
Willow's Avatar
Registered User

Join Date: Dec 2008
Location: Chicago
Posts: 2
Smile 1986 300 E Mosselman Twin turbo

Quote:
Originally Posted by RBYCC View Post
No problem with the .55 bar boost on a stock engine in sound condition.
The turbos supplied in the Mosselman kit were fixed at around .5 bar boost.
Did you install the full kit including the supplied electronics?
You want to make sure through the Mosselman engine/fuel management that you set your air fuel ratios to around .85 Lambda as you don't want to lean out under boost.

There was an article in the August 17, 1987 Autoweek written about the man who did my recent TurboTechnics install.
Willy Mosselman stated in that article that the USA installer made the M103-12V go faster then he could.
With a 3.64:1 rear the 0-60 was 4.96 and the 0-100 was 11.98.

My TT 300CE M103-12V TT with the stock 3.07:1 rear runs 0-60 in the low to mid 5 second range and two weeks ago in 40F ran a 14.39/98.68 1/4 mile with no traction off the line.
With traction I should see mid 13's and 100mph +

Who needs a V8 when you can have a 3.0L torque monster ?
I bot the 1986 300 E that was written up in the Aug 17 1987 Autoweek article from a friend 2 years ago. It had 69K on it... now has 80K. It continues to be servived by the orginal tuner, Brian Murphy of Willow Automotive in Chicago, IL. Fortunately for me, I have little reason to "visit" with Brian as the car has been very reliable. I drive it May thru November and really enjoy it. It's quite fun .... and quick. I am considering rebuilding the turbos this year, more as a precaution than out of necessity. I really enjoyed reading thru this post. I will post a few pics after the holidaze....
Reply With Quote
  #162
Old 12-23-2008, 03:53 PM
JayRash's Avatar
DON'T PANIC

Join Date: Jun 2005
Location: Beirut, Lebanon
Posts: 1,278
Quote:
Originally Posted by Willow View Post
I bot the 1986 300 E that was written up in the Aug 17 1987 Autoweek article from a friend 2 years ago. It had 69K on it... now has 80K. It continues to be servived by the orginal tuner, Brian Murphy of Willow Automotive in Chicago, IL. Fortunately for me, I have little reason to "visit" with Brian as the car has been very reliable. I drive it May thru November and really enjoy it. It's quite fun .... and quick. I am considering rebuilding the turbos this year, more as a precaution than out of necessity. I really enjoyed reading thru this post. I will post a few pics after the holidaze....

cooool, well my car has just crossed the 237kmiles today, and with that some 13k miles atleast after the kit install.
and am still on the original autobox and engine bar the head gasket issue,.

waiting ur pics
__________________
Jay,
-----------------
-1995 Blue W202 C36 AMG (M) SOLD ;(
-1995 Black W140 S500 (Lady)
-1992 Black W124 E300 (Dima) (Ex-Mosselman
Twin turbo Kit).
-1988 Black W124 300 E 4-Matic.(Nadeen)
-1983 Brown W126 500SEL.(Old Lady)(Sold)
-1981 Gold W123 280CE.(Dareen)(Sold)
http://www.youtube.com/user/jayrasheed
Reply With Quote
  #163
Old 12-27-2008, 01:48 PM
JayRash's Avatar
DON'T PANIC

Join Date: Jun 2005
Location: Beirut, Lebanon
Posts: 1,278
Merry X-mass all, whish u all the best.
Well an update is due I guess

I have decided to go with an alcohol injection system and should be ordering the coolingmist kit with the Vari-cool and smart injector controller this kit has gr8 potential and several features other than just the alcohol injection. The kit can read several inputs to generate a map for how much and when to inject.

Ill be using rpm vs. boost in setting up the map, my intention to use alcohol is based on several factors. First alcohol has 2 features; it raises octane and thus resistance for detonation and it cools the intake charge which helps in my case with my top mount intercooler and the lack of oil squirt under my pistons. Thus I need to cool my pistons down a tad. Secondly I need the extra alcohol in tuning the few lean spots I have in my tune.

second feature the kit has is the programmable out put triggers, ill use that to trigger the full throttle switch when running on part throttle. The controller can be set to trigger the switch when boost is present and rpm is below say 4500, above that its off. In my case I run lean when on part throttle in that range but fine above 4500 rpm but if I keep the enrichment on car gets very rich above 4500 on.


any way I should be getting the kit here by the 6th of jan 09, and will post the results once installed and running.
kit also has a flow sensor to detect clogged injector and it has several fail safe options, btw with alcohol I should be able to advance my spark which will yield more hp on same boost.

PS now in the cold of winter here (morning temps 7 degrees Celsius) my car is running 0.6 bar boost instead of the usual 0.5 bar
__________________
Jay,
-----------------
-1995 Blue W202 C36 AMG (M) SOLD ;(
-1995 Black W140 S500 (Lady)
-1992 Black W124 E300 (Dima) (Ex-Mosselman
Twin turbo Kit).
-1988 Black W124 300 E 4-Matic.(Nadeen)
-1983 Brown W126 500SEL.(Old Lady)(Sold)
-1981 Gold W123 280CE.(Dareen)(Sold)
http://www.youtube.com/user/jayrasheed

Last edited by JayRash; 12-30-2008 at 01:46 AM.
Reply With Quote
  #164
Old 12-29-2008, 04:11 PM
JayRash's Avatar
DON'T PANIC

Join Date: Jun 2005
Location: Beirut, Lebanon
Posts: 1,278

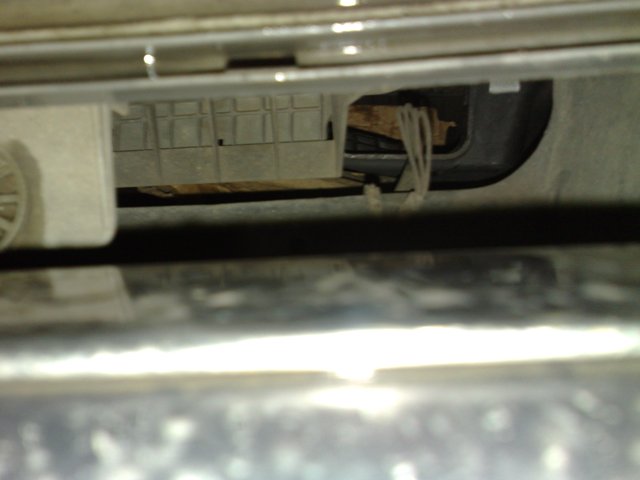

Well waiting for the kit to arrive, i needed to keep my self busy . so i went out got me a used washer pump for less than 10usd connected its power to the already existing pump and now i have intercooler sprays


http://www.youtube.com/watch?v=IpU6RON5wAQ
My w124 M103 e300 finally has the mosselman kit istalled-js_n95_photo2177.jpg

My w124 M103 e300 finally has the mosselman kit istalled-js_n95_photo2178.jpg
__________________
Jay,
-----------------
-1995 Blue W202 C36 AMG (M) SOLD ;(
-1995 Black W140 S500 (Lady)
-1992 Black W124 E300 (Dima) (Ex-Mosselman
Twin turbo Kit).
-1988 Black W124 300 E 4-Matic.(Nadeen)
-1983 Brown W126 500SEL.(Old Lady)(Sold)
-1981 Gold W123 280CE.(Dareen)(Sold)
http://www.youtube.com/user/jayrasheed
Reply With Quote
  #165
Old 01-07-2009, 04:41 PM
Registered User

Join Date: Jan 2009
Posts: 1
^Brilliant work been reading this thread for a while-but only just joined this site.
I have a M103 Mosselman TT aswell, the original management has packed up so using the same Split Second unit as RBYCC as recommended by him.(thanks Ed)
Need to source a 2nd hand plenum to get machined to mount the injectors.
How long did it take you to make your plenum out of fibreglass? also what injectors are you using?
and once again brilliant work!
Reply With Quote
Reply

Bookmarks

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On




All times are GMT -4. The time now is 12:01 AM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2019, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.0
Copyright 2018 Pelican Parts, LLC - Posts may be archived for display on the Peach Parts or Pelican Parts Website -    DMCA Registered Agent Contact Page
