FS - CAT 1R-7050 Fuel Filter Upgrade Kits for OM61X

Five complete turnkey CAT 1R-7050 filter upgrade kits are for available for purchase.

This is a one-time offer.
I have no plans to fabricate any additional kits because of the time required and high cost of materials.

Cost per kit is $150 including CONUS shipping via USPS.
The kit will fit any OM61X that uses the 6172360330 power steering bracket and a “01” or “02” fuel filter head.






Each kit consists of:
1) one 14M X 1.5mm to 1” X 14tpi stainless steel threaded adapter,
2) one 17mm X 23mm X 1.5mm aluminum crush washer
3) one CAT 1R-7050 fuel filter,
4) one reconditioned “02” fuel filter head with its hollow bolt (24mm hex head),
5) three upper 2.5mmX 14mm Viton o-rings, (one to install and two spares) for the hollow bolt on the “02” fuel filter head
6) three lower 2mm X 10mm Viton o-rings, (one to install and two spares) for the hollow bolt on the “02” fuel filter head,
7) one aluminum relocating plate (approximately 0.25” X 2.5” X 4”),
8) one clamping bar/spacer (approximately 1" X 1” X2.5”),
9) two used M8 X 1.25mm X 45mm (6mm Allen hex head) bolts to mount the reconditioned "02" fuel filter head to the relocating plate,
10) two used spring washers,
11) two M8 X 1.25mm (12mm hex) copper coated split ring lock nuts,
12) two 14mm X 18mm X 1.5mm aluminum crush washers,
13) eight 12mm X 16mm X 1.5mm aluminum crush washers,
14) one Hebmuller primary fuel filter (0014777901),
15) one 16mm X 20mm X 1.5mm aluminum crush washer for the primer pump.


Send me a PM if interested.
Link to the Fuel filter upgrade thread

__________________
79 300SD 'Stormcloud' new as of 10/22/2017
78 300SD 'Desert Rose' new as of 01/26/2014
83 300SD 'Rena 2.0' with engine from 82 300SD 'Rena' (SOLD & crushed 11-20-2017)
Reply With Quote
  #2
Old 10-05-2018, 06:48 PM
Registered User

Join Date: Oct 2018
Posts: 1
Are any of these still available?
Reply With Quote
  #3
Old 06-25-2019, 12:00 AM
Registered User

Join Date: Nov 2013
Location: San Mateo, CA
Posts: 887
Update to kit

Based on feedback from the first person to purchase a kit, the relocating plate has been modified to provide improved clearance of AC lines.

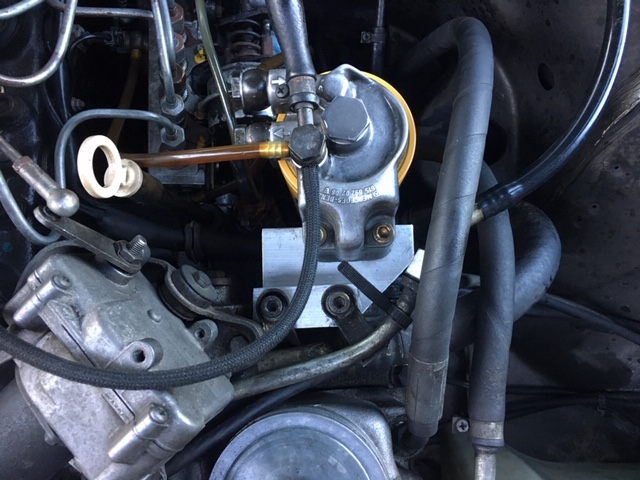

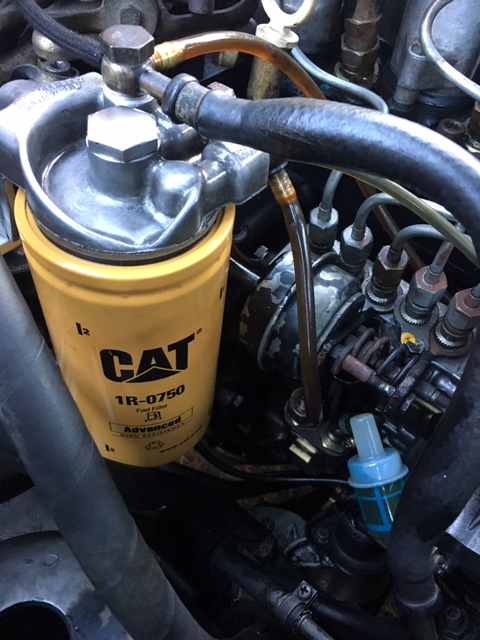

Image 1, 2 and 3 are installation photos provided by the first person to purchase a kit and is used with their permission.

I placed a larger radius on the five corners of the modified relocating plate, to lessen the likelihood of getting scraped.
See the 4th thumbnail photo.

Three kits are still available at the same pricing.
Send a PM if interested.
Attached Thumbnails
FS - CAT 1R-7050 Fuel Filter Upgrade Kits for OM61X-image1.jpeg   FS - CAT 1R-7050 Fuel Filter Upgrade Kits for OM61X-image2.jpeg   FS - CAT 1R-7050 Fuel Filter Upgrade Kits for OM61X-image3.jpeg   FS - CAT 1R-7050 Fuel Filter Upgrade Kits for OM61X-updated-relocation-plate.jpg
__________________
79 300SD 'Stormcloud' new as of 10/22/2017
78 300SD 'Desert Rose' new as of 01/26/2014
83 300SD 'Rena 2.0' with engine from 82 300SD 'Rena' (SOLD & crushed 11-20-2017)
Reply With Quote
  #4
Old 06-25-2019, 07:21 AM
Registered User

Join Date: Jul 2007
Posts: 3
What is the purpose of the replacement kit? Is there a fault with the OE system?
Thanks
Reply With Quote
  #5
Old 06-25-2019, 07:57 AM
greazzer's Avatar
dieselfuelinjector.guru

Join Date: Sep 2010
Location: 2021 - The Great Florida Count-down
Posts: 5,618
Alec - would this work with my set-up which is manual steering?
