CLK430 '99 blower motor repair help???

Can anyone tell me how complicated replacing the blower motor is? It has been making alot of noise and has finally given out. I don't even know where to begin.

Thanks. I am grateful for any help.....

Reply With Quote
  #2
Old 05-23-2006, 06:16 PM
Registered User

Join Date: May 2006
Posts: 6
CLK430 '99 Blower motor help......

Not sure where to post this; so please forgive me for re-posting. I have a CLK430 the blower motor was making ALOT of noise and has finally given out. Can anyone tell me how complicated the job is and where to begin. Any help would be greatly appreciated.
Reply With Quote
  #3
Old 05-23-2006, 09:33 PM
Registered User

Join Date: Feb 2003
Location: Ontario, Canada
Posts: 3,160
IF it is like my car, should take about 20 minutes to change it.
Here is what it looks like ;
http://catalog.eautopartscatalog.com/mercedesshop/sophio/wizard.jsp?partner=mercedesshop&clientid=catalog.mercedesshop&baseurl=http://catalog.peachparts.com/&cookieid=1R510G7PR1T51A1I1B&year=1999&make=MB&model=CLK-430-001&category=R&part=Blower+Motor
The motor should be located just to the right of the cabinfilter, 5 screws holding it up.
http://w202cabindustfilter.homestead.com/
May as well change the filter too, while you're down there.
__________________
2007 C 230 Sport.

Last edited by manny; 05-23-2006 at 09:40 PM.
Reply With Quote
  #4
Old 05-25-2006, 09:14 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,359
Moved for better answer

Moved for better answer
Reply With Quote
  #5
Old 05-25-2006, 09:51 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,359
Answer

Quote:
Originally Posted by canmbfan
Can anyone tell me how complicated replacing the blower motor is? It has been making a lot of noise and has finally given out. I don't even know where to begin.

Thanks. I am grateful for any help.....

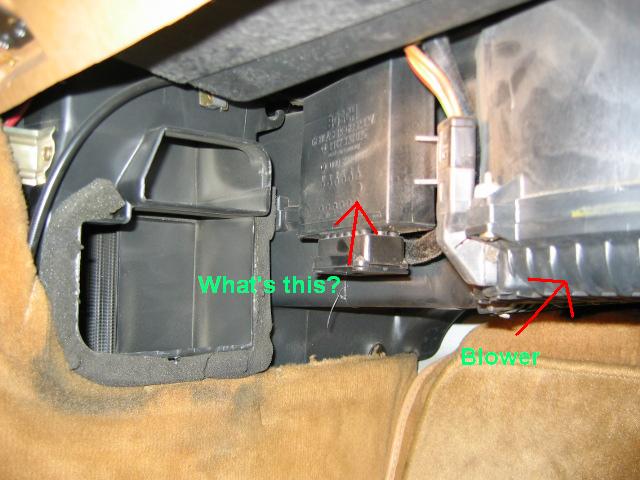

CLK 430 Coupe

Passenger side under dash.
This is an easy DIY.

http://www.peachparts.com/shopforum/attachments/diesel-discussion/29517d1131838512-name-these-parts-help-new-members-s-.jpg

There are brush kits available for the blower.

Climate Control:
Climate Control:
Reply With Quote
  #6
Old 05-30-2006, 10:05 AM
Registered User

Join Date: May 2006
Posts: 6
CLK430 - blower still not working.

Ok I changed both the blower fan and the regulator and nothing is happening. The fan is not engaging at all. I put a volt meter to the 3 pronged clip and there is no voltage. I don't know where the fuse is for the blower motor I checked under the hood but there is nothing.

I appreciate all your help and replies.


THanks a million.
Canmbfan

Last edited by canmbfan; 05-30-2006 at 11:19 AM.
Reply With Quote
  #7
Old 05-30-2006, 11:32 AM
Registered User

Join Date: May 2006
Posts: 6
Thanks Manny for the help...

Thanks I was able to change it just today. I replaced both the regulator and the fan, but there is no action. I put a volt meter to the 3 pronged plug and there was no voltage. Do you know where the fuse is for the blower motor? I checked under the hood but couldn't find one.

Thanks in advance. I really appreaciate it.

Canmbfan
Reply With Quote
  #8
Old 05-30-2006, 11:40 AM
GVB GVB is offline
Registered User

Join Date: May 2006
Posts: 178
I think it is in the trunk. If memory serves me correct.
Reply With Quote
  #9
Old 05-30-2006, 11:45 AM
Registered User

Join Date: May 2006
Posts: 6
tried the trunk but no luck...CLK 430 blower motor help

Thanks for the reply.

I tried the trunk but it is not there either. Most of the fuses in the trunk are for the power seats. Unless there is more than one box in the trunk.

There is another box by the driver door that is mostly for the lights.

Thanks and reagards,
Canmbfan
Reply With Quote
  #10
Old 05-30-2006, 02:16 PM
Registered User

Join Date: May 2006
Posts: 6
Ok I finally found it. It was fuse 25 in the front fuse box.

Thanks for all your replies.
canmbfan
Reply With Quote
  #11
Old 05-30-2006, 04:38 PM
Registered User

Join Date: Feb 2003
Location: Ontario, Canada
Posts: 3,160
Quote:
Originally Posted by canmbfan
Ok I finally found it. It was fuse 25 in the front fuse box.
canmbfan
Was the fuse blown ?

__________________
2007 C 230 Sport.
Reply With Quote
