  #16
Old 04-15-2007, 08:09 PM
skiier3_9's Avatar
Registered User

Join Date: Jan 2005
Location: Minnesota
Posts: 975
Cool - I think I'm going to take it to a local auto parts store that has a machine shop.

Here are some pics of the mess...

One more question - I made small tear in the rubber boot on the tie rod end (or toe link as MB Doc refers to above) - I assume that this part should be replaced (see pic) -- are there any other suspension parts that I should consider replacing while I've got this entire assembly off?

Should the lower control arm bushing be replaced on principle?
Attached Thumbnails

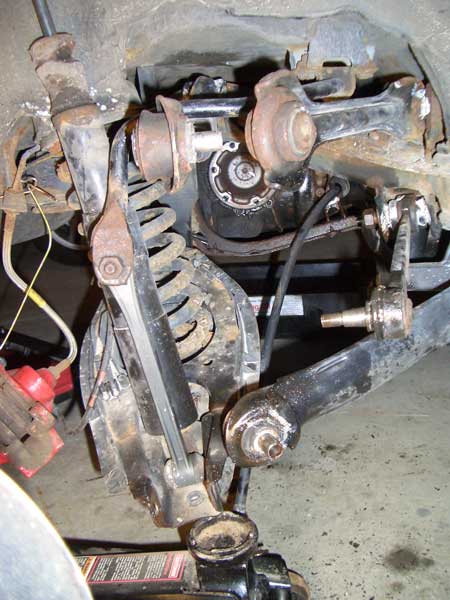

Removing 124 rear hub assembly - MB Doc?-toe_link.jpg   Removing 124 rear hub assembly - MB Doc?-lca_bushing.jpg   Removing 124 rear hub assembly - MB Doc?-no_wheel_carrier.jpg   Removing 124 rear hub assembly - MB Doc?-hub_axle.jpg
__________________
Daily Driver: 02 E430 4MATIC
In the family: '03 E500 // '04 ML500 // 64 220SE
Reply With Quote
  #17
Old 04-16-2007, 09:10 AM
Moderator

Join Date: Mar 1999
Location: Tucker, Ga USA
Posts: 12,153
You should replace that link...will require alignment!

That lower bushing/bearing should be replaced if it is too loose OR tight.
__________________
MERCEDES Benz Master Guild Technician (6 TIMES)
ASE Master Technician
Mercedes Benz Star Technician (2 times)
44 years foreign automotive repair
27 Years M.B. Shop foreman (dealer)
MB technical information Specialist (15 years)
190E 2.3 16V ITS SCCA race car (sold)
1986 190E 2.3 16V 2.5 (sold)
Retired Moderator
Reply With Quote
  #18
Old 04-16-2007, 10:12 AM
skiier3_9's Avatar
Registered User

Join Date: Jan 2005
Location: Minnesota
Posts: 975
How would one determine if the LCA bushing was too loose or too tight?

Thanks again MB Doc!
__________________
Daily Driver: 02 E430 4MATIC
In the family: '03 E500 // '04 ML500 // 64 220SE
Reply With Quote
  #19
Old 09-01-2008, 01:23 AM
Registered User

Join Date: May 2003
Location: Atlanta
Posts: 398
jeepers creepers. too bad this thread is a year old. I am planning to pull the wheel carrier on my 95 e320 wagon. i need to replace the drivers side rear wheel bearing. but I'm just gonna take it to a shop to have them press out the old and in with a new. I may be coming back to this once my hands get dirty.

the general concept I have in mind is:
pull the wheel
remove the rotor
disconnect all links, arms, rods etc
undo nut in hub (what size? left hand thread?)
pull off carrier


that's the idea anyways.
Reply With Quote
  #20
Old 09-09-2008, 03:43 PM
Registered User

Join Date: May 2003
Location: Atlanta
Posts: 398
update.

I removed the various arms and then the wheel/bearing carrier. pretty straight forward actually. took the carrier to a shop and had the bearing replaced. I also found that the outer control arm bushing was shot and had a new one pressed in at the same time. I'd say this is the best way to change bearings. leave it to the pros with the presses.
Reply With Quote
