  #1
Old 04-30-2007, 11:41 PM
meltedpanda's Avatar
Certified Benzaholic

Join Date: Mar 2003
Location: Central Ky
Posts: 6,032
1992 190E AC Question

very cold for the first 5 minutes of operation, once the car warms up - compressor stops working, does not cycle on off - sound like low freon or compressor woes or niether - hot here and need the air, why oh why don't I check these things out before I actually need them
__________________
Ron
99 E320 THE Queen Mary
62 220b - Dolly - Finally my Finny!
72 450SL, Pearl-SOLD
16 F350 6.7 Diesel -THOR
07 Lexus RX 350 - Lexi
14 38HP John Deere 3038E Tractor -Mean Green
84 300SD, Benjamin -SOLD
71 220 - W115-Libby ( my first love) -SOLD
73 280 - W114 "Organspende" Rest in Peace
81 380 SL - Rest in Peace
Reply With Quote
  #2
Old 05-01-2007, 12:19 AM
Registered User

Join Date: Dec 2000
Location: AL
Posts: 1,219
Have you verified the belt tension is correct? If the belt slips, the compressor will shut down to protect the belt.
__________________
2012 E350
2006 Callaway SC560
Reply With Quote
  #3
Old 05-03-2007, 11:37 PM
meltedpanda's Avatar
Certified Benzaholic

Join Date: Mar 2003
Location: Central Ky
Posts: 6,032
belt tension OK , freon level good, the guy wh checked it indicated "probably electrical, just what I need to chase an electrical gremlin

Any common areas to look at here, fuses good as far as I can tell, it does come on. COuld it be the temperature ACC control ( blue /red dial ) ?
All input welcome!
__________________
Ron
99 E320 THE Queen Mary
62 220b - Dolly - Finally my Finny!
72 450SL, Pearl-SOLD
16 F350 6.7 Diesel -THOR
07 Lexus RX 350 - Lexi
14 38HP John Deere 3038E Tractor -Mean Green
84 300SD, Benjamin -SOLD
71 220 - W115-Libby ( my first love) -SOLD
73 280 - W114 "Organspende" Rest in Peace
81 380 SL - Rest in Peace
Reply With Quote
  #4
Old 05-03-2007, 11:51 PM
slk230red's Avatar
WECO Installer

Join Date: Jul 2006
Location: Tampa, FL
Posts: 801
Quote:
Originally Posted by meltedpanda View Post
very cold for the first 5 minutes of operation, once the car warms up - compressor stops working, does not cycle on off - sound like low freon or compressor woes or niether - hot here and need the air, why oh why don't I check these things out before I actually need them
When my 190 was doing what you are describing, it was because the auxillary fan was not operating. The compressor was working, but the high pressure side got too high and the high pressure switch on the drier/receiver was turning off the compressor just like it was designed to do.
It turned out to be a blown fuse for the aux. fan. I replaced the fuse and the aux. fan operated. That was a few years ago and it is still working.

Dave
__________________

1993 190E 2.3
2001 SLK230
1971 LS5 (454) Corvette Convertible
Reply With Quote
  #5
Old 05-04-2007, 09:50 AM
meltedpanda's Avatar
Certified Benzaholic

Join Date: Mar 2003
Location: Central Ky
Posts: 6,032
I will check that out, thanks, where might this fuse be?
Should the fan come on when the AC is on?
Is there a way to check operation of the fan independent of the AC?

How does the main fan work and is it related, can it be tested? Is there a temp switch relay and where might that be.... so many questions so little time
Thanks for any input
__________________
Ron
99 E320 THE Queen Mary
62 220b - Dolly - Finally my Finny!
72 450SL, Pearl-SOLD
16 F350 6.7 Diesel -THOR
07 Lexus RX 350 - Lexi
14 38HP John Deere 3038E Tractor -Mean Green
84 300SD, Benjamin -SOLD
71 220 - W115-Libby ( my first love) -SOLD
73 280 - W114 "Organspende" Rest in Peace
81 380 SL - Rest in Peace

Last edited by meltedpanda; 05-04-2007 at 10:03 AM.
Reply With Quote
  #6
Old 05-04-2007, 10:30 AM
slk230red's Avatar
WECO Installer

Join Date: Jul 2006
Location: Tampa, FL
Posts: 801
Quote:
Originally Posted by meltedpanda View Post
I will check that out, thanks, where might this fuse be?
Should the fan come on when the AC is on?
Is there a way to check operation of the fan independent of the AC?

How does the main fan work and is it related, can it be tested? Is there a temp switch relay and where might that be.... so many questions so little time
Thanks for any input
The fuse is in the fuse box located behind power brake booster, (red fuse). There is a temp switch located on head behind thermostat housing. I think the aux. fan should come on when the A/C is on....I'll have to check.
__________________

1993 190E 2.3
2001 SLK230
1971 LS5 (454) Corvette Convertible
Reply With Quote
  #7
Old 05-04-2007, 01:00 PM
meltedpanda's Avatar
Certified Benzaholic

Join Date: Mar 2003
Location: Central Ky
Posts: 6,032
More stuff

AC Condenser
AC/Refrigerant Temperature Sensor
AC Cutoff Switch
AC Evaporator
AC Expansion Valve
AC High/Low Switch
AC Relay


So which of these could be a culprit and once again , how do I check them?
__________________
Ron
99 E320 THE Queen Mary
62 220b - Dolly - Finally my Finny!
72 450SL, Pearl-SOLD
16 F350 6.7 Diesel -THOR
07 Lexus RX 350 - Lexi
14 38HP John Deere 3038E Tractor -Mean Green
84 300SD, Benjamin -SOLD
71 220 - W115-Libby ( my first love) -SOLD
73 280 - W114 "Organspende" Rest in Peace
81 380 SL - Rest in Peace
Reply With Quote
  #8
Old 05-04-2007, 01:39 PM
Registered User

Join Date: Oct 2004
Location: Baton Rouge La
Posts: 2,621
sounds much like aux fans..

with the engine off....see if you can spin it freely with your hand... it could have locked up and fried a fuse...
__________________
1989 300ce 129k
( facelifted front,updated tail lights, lowered suspension,bilstein sports, lorinser front spoiler, MOMO steering wheel, remus exhaust,stainless steel brake lines). (Gone)

1997 s320 154k (what a ride)

1994 e320 Cabriolet 98k (finally)



1972 280se 4.5 153k Owned for 12 yrs, sorry I sold it


[/SIGPIC]
Reply With Quote
  #9
Old 05-04-2007, 03:02 PM
slk230red's Avatar
WECO Installer

Join Date: Jul 2006
Location: Tampa, FL
Posts: 801
Quote:
Originally Posted by meltedpanda View Post
AC Condenser
AC/Refrigerant Temperature Sensor
AC Cutoff Switch
AC Evaporator
AC Expansion Valve
AC High/Low Switch
AC Relay


So which of these could be a culprit and once again , how do I check them?
DON'T touch those items unless your aux. fan is working properly. Put a set of A/C gauges on your A/C system, you will see the high pressure side go up and the compressor will shut off if the aux. fan doesn't operate. The aux. fan cools the A/C condensor to keep the high pressure side in proper range.

So, step number one is to verify correct operation of aux fan.

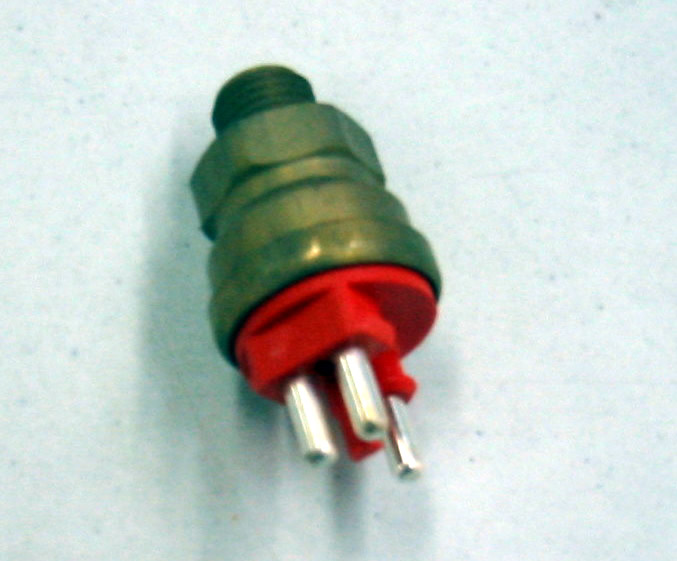

You should have a 3 prong Temp. Switch that looks something like this. If you unplug the connector that goes on the 2 prongs and short them out at the connector, the aux. fan should operate. In theory, that is what the temp. sw. does...the 2 pins make continuity when the temp. reaches 110 degrees C.
Attached Thumbnails
1992 190E AC Question-106115b.jpg
__________________

1993 190E 2.3
2001 SLK230
1971 LS5 (454) Corvette Convertible

Last edited by slk230red; 05-04-2007 at 03:10 PM.
Reply With Quote
  #10
Old 05-04-2007, 04:23 PM
meltedpanda's Avatar
Certified Benzaholic

Join Date: Mar 2003
Location: Central Ky
Posts: 6,032
Will do this weekend, I will post back findings
__________________
Ron
99 E320 THE Queen Mary
62 220b - Dolly - Finally my Finny!
72 450SL, Pearl-SOLD
16 F350 6.7 Diesel -THOR
07 Lexus RX 350 - Lexi
14 38HP John Deere 3038E Tractor -Mean Green
84 300SD, Benjamin -SOLD
71 220 - W115-Libby ( my first love) -SOLD
73 280 - W114 "Organspende" Rest in Peace
81 380 SL - Rest in Peace
Reply With Quote
  #11
Old 05-09-2007, 09:44 AM
meltedpanda's Avatar
Certified Benzaholic

Join Date: Mar 2003
Location: Central Ky
Posts: 6,032
slk230red

you were right on, thanks for the advice, it was the temp switch for the aux fan
all well and cool............
__________________
Ron
99 E320 THE Queen Mary
62 220b - Dolly - Finally my Finny!
72 450SL, Pearl-SOLD
16 F350 6.7 Diesel -THOR
07 Lexus RX 350 - Lexi
14 38HP John Deere 3038E Tractor -Mean Green
84 300SD, Benjamin -SOLD
71 220 - W115-Libby ( my first love) -SOLD
73 280 - W114 "Organspende" Rest in Peace
81 380 SL - Rest in Peace
Reply With Quote
  #12
Old 05-09-2007, 10:40 AM
slk230red's Avatar
WECO Installer

Join Date: Jul 2006
Location: Tampa, FL
Posts: 801
Quote:
Originally Posted by meltedpanda View Post
slk230red

you were right on, thanks for the advice, it was the temp switch for the aux fan
all well and cool............
Great, glad things worked out.

Dave
__________________

1993 190E 2.3
2001 SLK230
1971 LS5 (454) Corvette Convertible
Reply With Quote
  #13
Old 05-09-2007, 10:50 AM
Registered User

Join Date: Sep 2004
Location: DFW / Collin County Texas
Posts: 1,882
Just a tip, you might want to check your pressures because if the system runs for a while without the aux fans spinning it can lose some refrigerant out the pressure relief valve. As a result, though your aux fan now works, your charge might be a few oz. low. You won't notice until it's about a hundred degrees out...
__________________
08 W251 R350
97 W210 E320
91 W124 300E
86 W126 560SEL
85 W126 380SE Silver
85 W126 380SE Cranberry
79 W123 250
78 W123 280E
75 W114 280
Reply With Quote
  #14
Old 05-11-2007, 11:00 PM
meltedpanda's Avatar
Certified Benzaholic

Join Date: Mar 2003
Location: Central Ky
Posts: 6,032
CRAP! Hot again!

So here is the deal, I thought I had it fixed…….
I replaced switch after the shorting out method worked and much to my chagrin now it does not work .
Here are the symptoms
I do know the aux fan is working
With plug shorted everything works, fan, aux fan, compressor cycles on and off, responds to the temp dial, aux fan even shuts off after a time, turn it to max cool and it works fine
Connect to the switch and the electric fan stops, compressor cycles occasionally but not enough to cool
Now I am lost, all connections are secure, no bubbles in sight glass.
I need to take it on a trip, can I just short it out and make it work , is this a bad thing?
Could my pressures be the issue, It would seem that it should still work at least the electrical part.
Are there other switches I should check
Here is the other issue, the temp gauge never really goes above 85-90C, could that also be an issue, I thought the aux fan worked when the compressor got hot or pressure was high
HELP
__________________
Ron
99 E320 THE Queen Mary
62 220b - Dolly - Finally my Finny!
72 450SL, Pearl-SOLD
16 F350 6.7 Diesel -THOR
07 Lexus RX 350 - Lexi
14 38HP John Deere 3038E Tractor -Mean Green
84 300SD, Benjamin -SOLD
71 220 - W115-Libby ( my first love) -SOLD
73 280 - W114 "Organspende" Rest in Peace
81 380 SL - Rest in Peace

Last edited by meltedpanda; 05-11-2007 at 11:09 PM.
Reply With Quote
  #15
Old 05-12-2007, 05:17 PM
meltedpanda's Avatar
Certified Benzaholic

Join Date: Mar 2003
Location: Central Ky
Posts: 6,032
please
__________________
Ron
99 E320 THE Queen Mary
62 220b - Dolly - Finally my Finny!
72 450SL, Pearl-SOLD
16 F350 6.7 Diesel -THOR
07 Lexus RX 350 - Lexi
14 38HP John Deere 3038E Tractor -Mean Green
84 300SD, Benjamin -SOLD
71 220 - W115-Libby ( my first love) -SOLD
73 280 - W114 "Organspende" Rest in Peace
81 380 SL - Rest in Peace
Reply With Quote
