  #16
Old 05-23-2007, 01:52 AM
Registered User

Join Date: May 2007
Location: Arizona
Posts: 760
Skybound: Nevermind. I think it stands for Over Voltage Protection relay. Correct me if I'm wrong. Where is that located on the 400E and could that be the cause of a continuous engine stumble or miss? Thanks.

__________________
1993 400E, 256,000 miles (totaled)
1994 E420, 200,000+ miles
1995 E420, 201,000 miles
Reply With Quote
  #17
Old 05-23-2007, 05:54 AM
Pete Geither's Avatar
Half Fast Moderator

Join Date: Feb 2002
Location: Western Pa.
Posts: 2,417
[QUOTE=emerydc8;1513722]Pete: I have a 1993 400E with 229,000 miles on it. During the recent process of replacing the water pump and power steering pump, I think I may have disturbed the wiring harness, because it's got a miss now. I ordered the harness from MercedesShop today and hopefully it will arrive by 2nd day air by the long holiday weekend. Any tips on where to start with the harness replacement? Thanks.

Take the air cleaner assembly off and everything will be abundantly clear. All you will need in the way of tools is an allen wrench and a phillips screwdriver.
__________________
95 SL500 Smoke Silver, Parchment 64K
07 E350 4matic Station Wagon White 34K
02 E320 4Matic Silver/grey 80K
05 F150 Silver 44K
Reply With Quote
  #18
Old 05-23-2007, 10:25 AM
Registered User

Join Date: May 2007
Location: Arizona
Posts: 760
Thanks, Pete!
__________________
1993 400E, 256,000 miles (totaled)
1994 E420, 200,000+ miles
1995 E420, 201,000 miles
Reply With Quote
  #19
Old 05-23-2007, 10:54 PM
Moderator

Join Date: Dec 2001
Location: Southern California, U.S.A.
Posts: 8,538
400E's do not have an OVP.
__________________
Paul S.

2001 E430, Bourdeaux Red, Oyster interior.
79,200 miles.

1973 280SE 4.5, 170,000 miles. 568 Signal Red, Black MB Tex. "The Red Baron".
Reply With Quote
  #20
Old 05-24-2007, 01:37 AM
Registered User

Join Date: May 2007
Location: Arizona
Posts: 760
Thanks. After reading other posts, I see that it was integrated into where the computer cards sit.
__________________
1993 400E, 256,000 miles (totaled)
1994 E420, 200,000+ miles
1995 E420, 201,000 miles
Reply With Quote
  #21
Old 05-25-2007, 11:37 PM
Registered User

Join Date: May 2007
Location: Arizona
Posts: 760

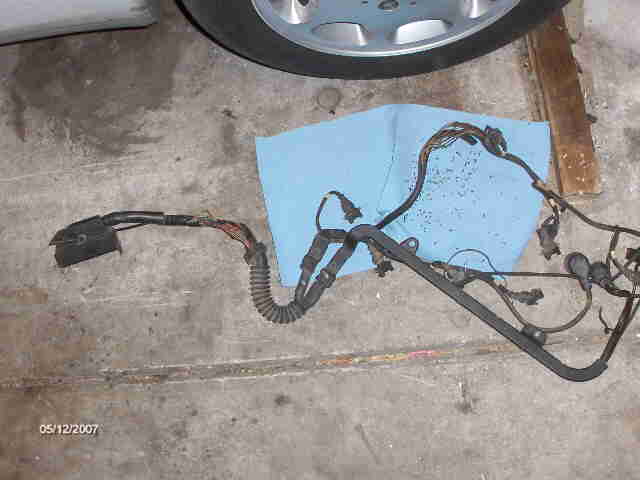

Just got my wiring harness today and replaced it in about an hour. As someone previously mentioned, the hardest part--and it wasn't even that hard--was to remove the harness end (canon plug) where it plugs in behind the firewall. There is a breather hose on the right rear side of my valve cover and the beautifully-engineered canon plug wouldn't fit by that hose. I either had to remove the hose and risk cracking it, or go the other direction and pull the wires out towards the back, which is what I chose to do.

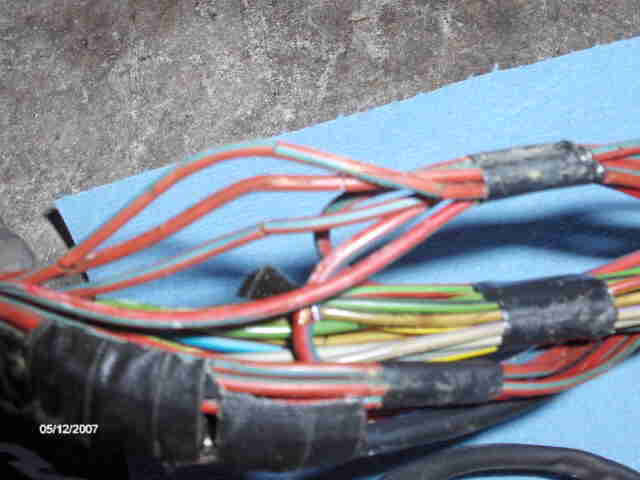

As you can see the insulation flaked off as soon as I touched it. The main line, closer to the canon plug, was not in good shape either, but it certainly wasn't as bad as where the wires were exposed to all the engine compartment heat. I will repeat what someone else said: it's hard to believe the car even ran with the old harness. I guess I was lucky after 229,000 miles.
Attached Thumbnails
400E wiring harness update-wiringharnessgeneral.jpg   400E wiring harness update-wiringharnessmain.jpg   400E wiring harness update-wiringharness.jpg
__________________
1993 400E, 256,000 miles (totaled)
1994 E420, 200,000+ miles
1995 E420, 201,000 miles
Reply With Quote
  #22
Old 05-26-2007, 07:15 AM
Pete Geither's Avatar
Half Fast Moderator

Join Date: Feb 2002
Location: Western Pa.
Posts: 2,417
As Mercedes says "There's nothing to see here,,, keep on moving."

__________________
95 SL500 Smoke Silver, Parchment 64K
07 E350 4matic Station Wagon White 34K
02 E320 4Matic Silver/grey 80K
05 F150 Silver 44K
Reply With Quote
