Both rear windows no longer go up/down.

None of the buttons make either of them go up and down. When I got the car, just the rear right side didn't work, but last week the left side has given up too.

Is this the window regulator that has failed?

Anything else it could be?

Got some time this weekend (first in a long time) so I'm gonna be as productive as I can.

Much appreciated.

__________________
2016 Monsoon Gray Audi Allroad - 21k
2008 Black Mercedes E350 4Matic Sport - 131k
2014 Jeep Wranger Unlimited Sahara - 62k
2003 Gray Mercedes ML350 - 122k
Reply With Quote
  #2
Old 10-10-2008, 09:26 PM
93_300E2.8's Avatar
Registered User

Join Date: Oct 2008
Location: wi
Posts: 63
The regulater might be bad, the switch might be, or there could be a break in the wire in the door jam's. that would be my guess.
__________________
Jake

93 300E 2.8L

72 Chevy Nova
74 Chevy Nova Custom W/Corvette Motor 70K
Reply With Quote
  #3
Old 10-10-2008, 10:14 PM
J.HIDALGO's Avatar
Registered User

Join Date: Jul 1999
Location: Jax, FL
Posts: 1,785
Are there any noises, any movement, etc.?

That should be your clues. Try this: Shut the door while pressing the up or down button. This may "unfreeze" the motor, long shot but, nothing to loose.
__________________
J.H.
'86 300E
Reply With Quote
  #4
Old 10-11-2008, 01:35 AM
Registered User

Join Date: Sep 2002
Location: Allentown, PA
Posts: 482

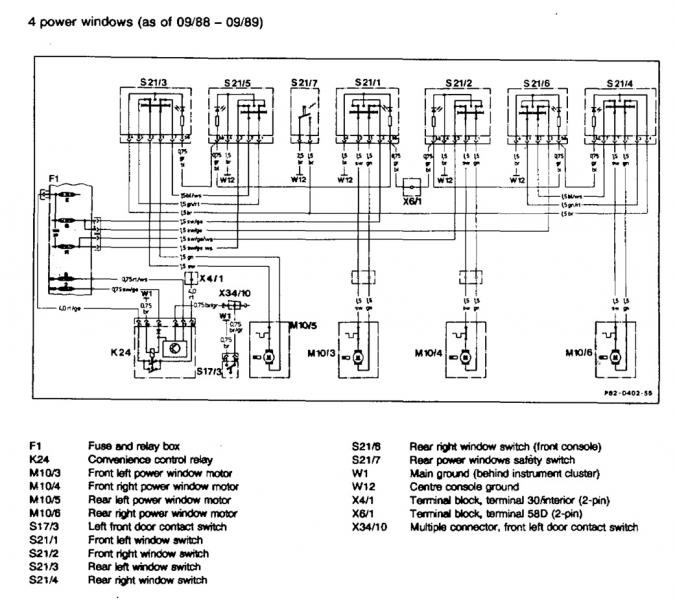

Hopefully you'll find the electrical commonality in the attached schematic. Unfortunately the wire color codes are fuzzy on my original. This schematic is from [2 cd] 124 manual.

Because both rears don't work, I'd rule out motors & regulators.
Attached Thumbnails
Both rear windows no longer go up/down.-windows-elec-p3.jpg
Reply With Quote
  #5
Old 10-11-2008, 07:14 AM
TAG's Avatar
TAG TAG is offline
1987 300E

Join Date: May 2008
Location: Central NJ
Posts: 60
On my 300E it was the wires in the door pillar. It's probably the easiest thing to check. Pop the rubber boot. Mine had pushed through a small rip in the wrapping. I did pull the door panel and rerouted the wires a little bit so they didn't flex in the same spot.
Reply With Quote
  #6
Old 10-11-2008, 07:52 AM
Registered User

Join Date: Jan 2003
Location: Matthews, NC
Posts: 1,356
Don't rule out anything yet. Try this. Open a door so the interior lights come on. Ign on, engine off. Look at the interior lights very carefully while hitting the window switch for one of the good windows. You should see the light flicker ever so slightly. Now try one of the bad windows. If it does the same, then it is a regulator or motor most likely. If it doesn't flicker the same as a good window then it is an electrical (switch, wire, etc) problem most likely. When looking for an electrical problem on the rear windows remember that the front OR rear switch could be the problem.
__________________
84 500 SEL (307,xxx miles)
Reply With Quote
  #7
Old 10-11-2008, 10:17 AM
ps2cho's Avatar
Registered User

Join Date: Jun 2006
Location: Chandler, Arizona
Posts: 3,525
Ok thanks guys I'll test the door close while holding the button and see if the lights dim slightly when pressing the buttons too.
__________________
2016 Monsoon Gray Audi Allroad - 21k
2008 Black Mercedes E350 4Matic Sport - 131k
2014 Jeep Wranger Unlimited Sahara - 62k
2003 Gray Mercedes ML350 - 122k
Reply With Quote
  #8
Old 10-11-2008, 11:40 AM
cdplayer's Avatar
Just my Jeep and my S500

Join Date: Aug 2006
Location: Sacramento, Calif.
Posts: 581
Rear windows

I realize you had some trouble with one of the rear windows recently. And now both. I am trying to help another member with problems in the driver's switch. And it occurred to me the child lockout switch died. Have you ruled this out? How does this switch lock both rear windows at the same time. If it is dying, could it lock one then the other down the road?
__________________


Selling used Mercedes parts on Ebay...always changing...
cdplayer51 take a look!
____________
Reply With Quote
  #9
Old 10-11-2008, 07:55 PM
ps2cho's Avatar
Registered User

Join Date: Jun 2006
Location: Chandler, Arizona
Posts: 3,525
Quote:
Originally Posted by cdplayer View Post
I realize you had some trouble with one of the rear windows recently. And now both. I am trying to help another member with problems in the driver's switch. And it occurred to me the child lockout switch died. Have you ruled this out? How does this switch lock both rear windows at the same time. If it is dying, could it lock one then the other down the road?
Interesting...How could I rule that out?


Quote:
Originally Posted by J.HIDALGO View Post
That should be your clues. Try this: Shut the door while pressing the up or down button. This may "unfreeze" the motor, long shot but, nothing to loose.
Tried it for the heck of it, but no success.

-----

I tested the buttons and the interior lights dim so it must be getting power. How can I tell if its a regulator or motor problem?
__________________
2016 Monsoon Gray Audi Allroad - 21k
2008 Black Mercedes E350 4Matic Sport - 131k
2014 Jeep Wranger Unlimited Sahara - 62k
2003 Gray Mercedes ML350 - 122k
Reply With Quote
  #10
Old 10-12-2008, 09:40 AM
J.HIDALGO's Avatar
Registered User

Join Date: Jul 1999
Location: Jax, FL
Posts: 1,785
At this point, you have to remove the door skin and see...

You can test power with a voltmeter. You can rule everything else once the door skin is removed.
__________________
J.H.
'86 300E
Reply With Quote
  #11
Old 10-12-2008, 12:01 PM
cdplayer's Avatar
Just my Jeep and my S500

Join Date: Aug 2006
Location: Sacramento, Calif.
Posts: 581
Quote:
Originally Posted by cdplayer View Post
I realize you had some trouble with one of the rear windows recently. And now both. I am trying to help another member with problems in the driver's switch. And it occurred to me the child lockout switch died. Have you ruled this out? How does this switch lock both rear windows at the same time. If it is dying, could it lock one then the other down the road?
Providing the switch plugs on the W124 are similar to W126( I am implying that same side front and back switches on said vehicle are using same style plugs), lift the console that holds the switches. Unplug one of the rear switches. Unplug the front switch on the same side. Right now you know the front switch 'works' because only the back windows are inop.
Plug the front switch into the rear plug(same side of vehicle).
If the lockout switch is causing your problem, the 'front' switch plugged into the rear plug will still not make the window move.

Another member was having a similar issue with his W123. Lockout switch was the problem as well. Just FYI
__________________


Selling used Mercedes parts on Ebay...always changing...
cdplayer51 take a look!
____________

Last edited by cdplayer; 10-12-2008 at 12:02 PM. Reason: info
Reply With Quote
  #12
Old 10-13-2008, 08:35 AM
Registered User

Join Date: May 2007
Posts: 114
I'll just throw in my 2cents. This happened w/ my 300E. A friend and I took the door apart and lubricated the window regulator (they were somewhat frozen up by the metal wire). This worked well for one. On the other, the motor failed with the window in the down position. Long story short, I ended up replacing the window regulator and motor (you have to replace both at the same time), but had to drive around w/ the window held up by a piece of wood.

My advice is to leave the back windows alone. The window regulators are a terrible design and them not working doesn't affect the driver at all.

__________________
87 300E
202k on the clock
Reply With Quote
