M103/126 leftover parts

I just put together my 91 300SE after pulling the head for a gasket change and the lower front cover for timing chain tensioners and crankshaft seal.

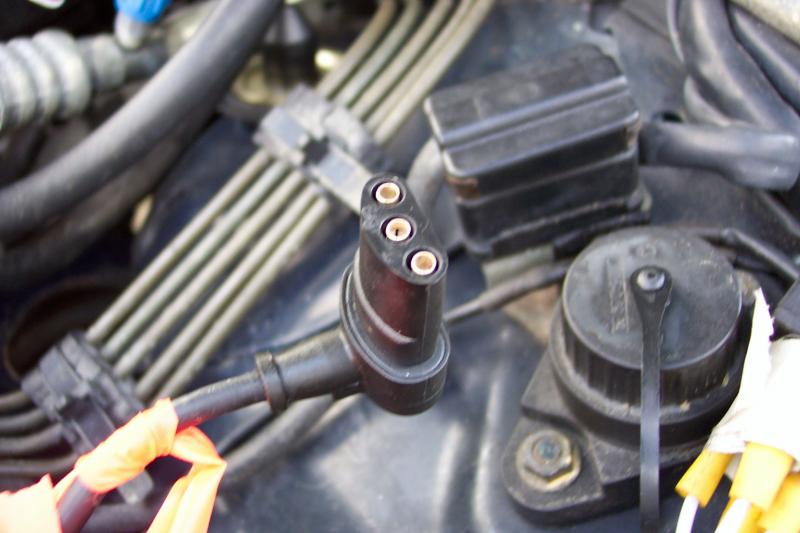

I can't find where to connect the three socket electrical connector from the TDC sensor on the front of the crankshaft.
I have an extra vacuum line from the forward vacuum unit on the r/h fwd engine bay, I thought it went to the air pump but I can't find a connection.
I have an extra shim? I think it's from the area of the belt tensioner.
Any assistance appreciated. Embarrassing but true.


Attached Thumbnails
M103/126 leftover parts-fwd-vacuum.jpg   M103/126 leftover parts-shim.jpg   M103/126 leftover parts-tdc-sensor-connector.jpg
Reply With Quote
  #2
Old 04-15-2009, 01:20 PM
Registered User

Join Date: Oct 2004
Posts: 4,194
The connector plugs into the bottom of the round lambda test port seen in the picture. You have to take the two 10mm nuts up to get to the bottom of the connector.

You have two vac lines on the right side. One is for the egr valve, the other for the air injection diverter valve.

That shim I don't recognise, don't think it belongs to the car.

__________________

90 300TE 4-M
Turbo 103, T3/T04E 50 trim
T04B cover .60 AR
Stage 3 turbine .63 AR
A2W I/C, 40 LB/HR
MS2E, 60-2 Direct Coil Control
3" Exh, AEM W/B O2
Underdrive Alt. and P/S Pulleys,
Vented Rear Discs, .034 Booster.
3.07 diffs 1st Gear Start

90 300CE
104.980
Milled & ported head, 10.3:1 compression
197 intake cam w/20 advancer
Tuned CIS ECU
4 ignition advance
PCS TCM2000, built 722.6
600W networked suction fan
Sportline sway bars
V8 rear subframe, Quaife ATB 3.06 diff
Reply With Quote
  #3
Old 04-15-2009, 01:39 PM
Registered User

Join Date: Feb 2009
Location: East Central Florida
Posts: 28
diverter valve

thanks,
where is the diverter valve?
Reply With Quote
  #4
Old 04-15-2009, 05:23 PM
Registered User

Join Date: Feb 2009
Location: East Central Florida
Posts: 28
Thanks

Found the diverter valve, thank you.
Reply With Quote
  #5
Old 04-15-2009, 05:37 PM
Registered User

Join Date: Mar 2009
Posts: 75
That shim looks like it's for either a door alignment or frontend alignment shim. I don't believe it was part of your head gasket job.
