check engine light pls help

Got code 12 exhaust gas recirculation temperature sensor. Or Absolute pressure valves from ELZ ignition control unit
Those 2 descriptions are from 2 different code lists.
I cleaned my egr and cleaned the tube. It was clogged but sprayed lot of carb cleaner and air in there and finally the air went into the intake. took for a test drive still got the light but it took longer to turn on.
Were is this sensor
pls help I need to smog the car.

Its a 91 300te 4 matic ca edition with blinker for code reader 3.0 engine

Reply With Quote
  #2
Old 09-29-2009, 08:05 AM
Moderator

Join Date: Mar 1999
Location: Tucker, Ga USA
Posts: 12,153
Code listed is for the 2nd problem.

Look for broken vacuun line at the EZL.
__________________
MERCEDES Benz Master Guild Technician (6 TIMES)
ASE Master Technician
Mercedes Benz Star Technician (2 times)
44 years foreign automotive repair
27 Years M.B. Shop foreman (dealer)
MB technical information Specialist (15 years)
190E 2.3 16V ITS SCCA race car (sold)
1986 190E 2.3 16V 2.5 (sold)
Retired Moderator
Reply With Quote
  #3
Old 09-29-2009, 12:59 PM
Registered User

Join Date: Jul 2009
Location: Foresthill
Posts: 212
What is the ezl? I was guessing it was those 2 vaccume sensors thats pluggerd in on the left inner fender.
ty for reply
Reply With Quote
  #4
Old 09-29-2009, 03:17 PM
Moderator

Join Date: Mar 1999
Location: Tucker, Ga USA
Posts: 12,153
EZL = ignition control module located on left inner fender.
__________________
MERCEDES Benz Master Guild Technician (6 TIMES)
ASE Master Technician
Mercedes Benz Star Technician (2 times)
44 years foreign automotive repair
27 Years M.B. Shop foreman (dealer)
MB technical information Specialist (15 years)
190E 2.3 16V ITS SCCA race car (sold)
1986 190E 2.3 16V 2.5 (sold)
Retired Moderator
Reply With Quote
  #5
Old 09-29-2009, 04:29 PM
Registered User

Join Date: Jul 2009
Location: Foresthill
Posts: 212
Might be a dumb question. do u mean the left side driver or passanger. I look at the engine compartment left side (passanger)

Are you talking about the driver side were the coil is? Its got 2 sccrew things on it and vacuum line going to it?
Reply With Quote
  #6
Old 09-30-2009, 03:23 AM
Registered User

Join Date: Jul 2009
Location: Foresthill
Posts: 212
Heres the passanger side engine would those cause an issue? will the blue things go bad (check valve?)



Driver side red or blue?



Is it true at 2000rpm all those sensors open and all should have vacuum. Theres vaccum to red (from engine) Not from other side. Theres also vacuum on blue. (one line with elbow)
Reply With Quote
  #7
Old 09-30-2009, 07:29 AM
Cal Learner's Avatar
Registered User

Join Date: Aug 2006
Location: Marysville, CA
Posts: 781

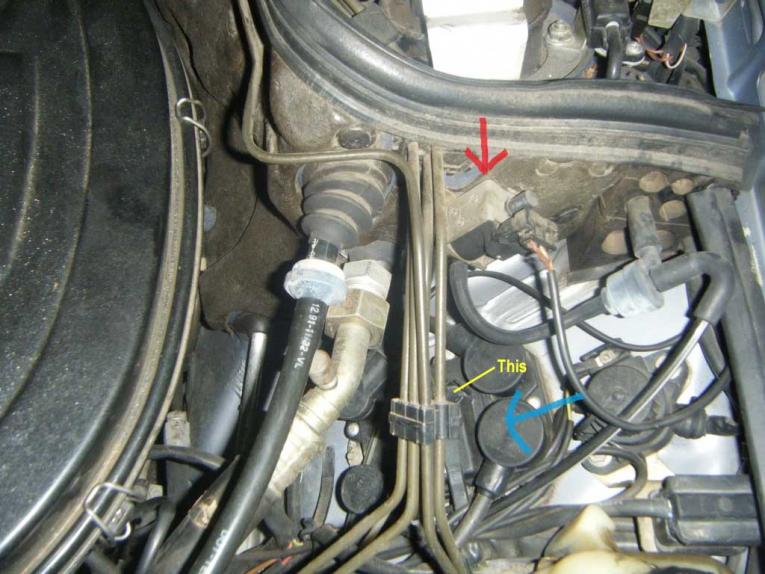

See photo
Attached Thumbnails
check engine light pls help-untitled.jpg

__________________
1988 California version 260E (W124)
Anthracite Grey/Palomino
Owned since new and still going strong and smooth
MBCA member

Past Mercedes-Benz:
1986 190E Baby Benz
1967 230 Inherited from mom when she downsized
1959 220S Introduced me to the joys of keepin' 'em goin'

There are only 10 kinds of people in the world--those who understand binary and those who don't
