#1
12-14-2009, 09:12 PM
|
||||
|
||||
|
I JUST noticed THIS :eek:

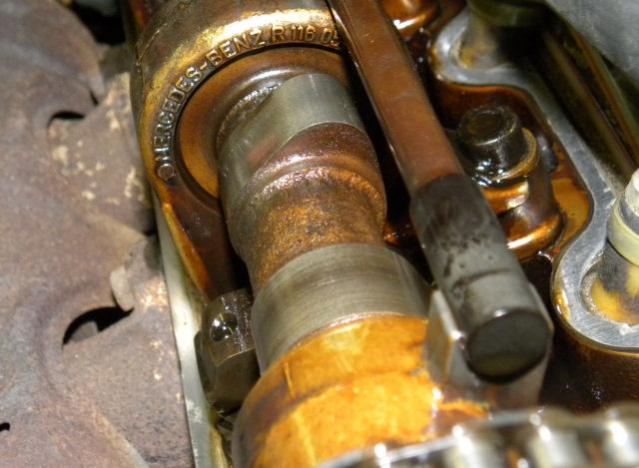

This is a photo of my Valve train in the SEL. Notice the ABSENCE of rocker retainer springs....
This IS a hydraulic lifter valve train, someone please tell me that they aren't missing at all ...
__________________
RIP: 80 300SD RIP: 79 450SEL 2002 E430 4matic (212,000km) 2002 ML500 'sport'  ____________________________ FACEBOOK: PANZER450
|
|
#2
12-15-2009, 06:30 AM
|
|||
|
|||
|
I don't quite understand what you mean...
The 'rockers' on these engines are only held in by the pressure of the valve spring, pushing up against the cam lobes, and pivoting around the ball end of the hydraulic element.
|
|
#3
12-15-2009, 09:04 AM
|
|||
|
|||
|
Quote:
Looks normal to me. What am I missing here?
__________________
08 W251 R350 97 W210 E320 91 W124 300E 86 W126 560SEL 85 W126 380SE Silver 85 W126 380SE Cranberry 79 W123 250 78 W123 280E 75 W114 280
|
|
#4
12-15-2009, 10:51 AM
|
|||
|
|||
|
Other than being a little too oil-free, it looks OK to me. What "rocker retaining springs" are you referring to?
__________________
A.S.E Tech A1,A6,A7,A8 & MVAC 609 + EPA 608 Unless stated otherwise, any question I ask is about my greymarket 1985 380SEL.
|
|
#5
12-15-2009, 12:34 PM
|
||||
|
||||
|
When I removed the cams and rockers and stuff from my donor engine, I had to remove some retaining spring clips from the rocker that attached to the ball stud. (See below photos)
Item number 3 in the first image is the spring location, and the second image shows the variance between engine types. I took photos of my camshafts when I was diagnosing a noise, and at the time wasn't aware of the springs, then later I was looking at the images again and noticed the absence of the springs.
__________________
RIP: 80 300SD RIP: 79 450SEL 2002 E430 4matic (212,000km) 2002 ML500 'sport' ____________________________ FACEBOOK: PANZER450
|
|
#6
02-19-2010, 01:42 PM
|
||||
|
||||
|
bump
__________________
RIP: 80 300SD RIP: 79 450SEL 2002 E430 4matic (212,000km) 2002 ML500 'sport' ____________________________ FACEBOOK: PANZER450
|
|
#9
02-19-2010, 06:33 PM
|
||||
|
||||
|
This relates to a camshaft replacement that is upcoming. cams from a 74 Djet, into my K-jet 4.5. I'm swapping the works, cams, towers, ball studs (non-hyd) and valve caps. I will regain my air/exhaust flow, and gain 10-15HP
__________________
RIP: 80 300SD RIP: 79 450SEL 2002 E430 4matic (212,000km) 2002 ML500 'sport' ____________________________ FACEBOOK: PANZER450
|
 |
