A few photos of parts I can't identify

Hi, I was wondering if someone (s) could help identify a few parts on my
W115 300D.

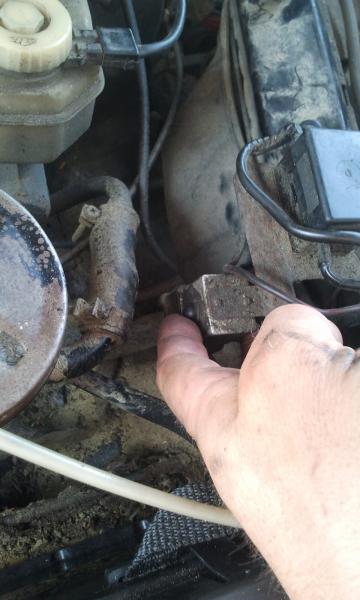

The first one is a box on the driver's front fender. It has a rubber push button switch.

The second one is just in front of the passenger on the firewall.

The third is a round pedal.

Thanks!

Mark

Attached Thumbnails
A few photos of parts I can't identify-2011-08-07-14.12.14.jpg   A few photos of parts I can't identify-2011-08-07-14.13.25.jpg   A few photos of parts I can't identify-2011-08-07-14.21.54.jpg
Reply With Quote
  #2
Old 08-08-2011, 08:23 AM
Moderator

Join Date: Mar 1999
Location: Tucker, Ga USA
Posts: 12,153
1) relay
2) a/c drier
3) foot operated washer pomp
__________________
MERCEDES Benz Master Guild Technician (6 TIMES)
ASE Master Technician
Mercedes Benz Star Technician (2 times)
44 years foreign automotive repair
27 Years M.B. Shop foreman (dealer)
MB technical information Specialist (15 years)
190E 2.3 16V ITS SCCA race car (sold)
1986 190E 2.3 16V 2.5 (sold)
Retired Moderator
Reply With Quote
  #3
Old 08-08-2011, 03:47 PM
1975300D's Avatar
Registered User

Join Date: Aug 2011
Location: Newmarket, Ontario
Posts: 273
Thanks doc, can you tell me what the relay is for, and why the button, and what does the AC drier do?

Mark
