M116/W126 Exhaust Manifolds

I would like to have pictures, drawings, or verifiable descriptions of US SPEC '81-'83 380 SE/SEL (W126) exhaust manifolds. I have an old aftermarket exhaust parts catalog that indicates the possibility of rear exit logs with the crossover pipe being under the trans. Although there is much talk on various forums about "Euro" manifolds, I have yet to see any information (especially pics) of the earliest US M116/W126 manifolds.

Any info on this matter would be appreciated.

Frank

Reply With Quote
  #2
Old 05-07-2012, 09:05 AM
Dr. Sternschnuppe's Avatar
Registered User

Join Date: May 2012
Location: CH
Posts: 566
Exhaust manifolds:
  • up to 08.1981 (116.961/117.961):

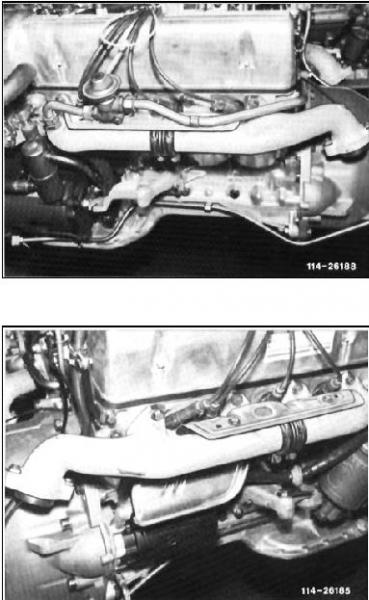

  • from 09.1981 (standart-version (LHD and RHD) and AUS-/J-/S-versions):

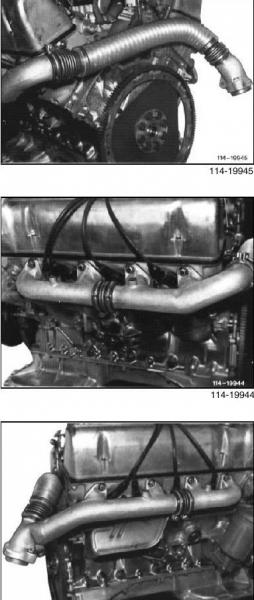

  • J-/USA-versions from 1981 and CH-version from 09.1983 (CH-version with EGR):
Attached Thumbnails
M116/W126 Exhaust Manifolds-.961-up-08.1981-type-126.jpg   M116/W126 Exhaust Manifolds-.963-09.1981-type-126.jpg   M116/W126 Exhaust Manifolds-up-08.1981.jpg   M116/W126 Exhaust Manifolds-09.1981.jpg   M116/W126 Exhaust Manifolds-j-usa-1981-ch-03.1983.jpg

Reply With Quote
  #3
Old 05-07-2012, 04:05 PM
Registered User

Join Date: Feb 2011
Location: Modesto CA
Posts: 2,888
Thanks much "Dr. S"; those drawings and pics do tend to confirm the common wisdom that dual outlet configurations were supplied only outside the US.
Frank
Reply With Quote
  #4
Old 05-07-2012, 05:16 PM
Dr. Sternschnuppe's Avatar
Registered User

Join Date: May 2012
Location: CH
Posts: 566
Post

Mufflers and tubes.
Attached Thumbnails
M116/W126 Exhaust Manifolds-auspuff.jpg
Reply With Quote
  #5
Old 05-08-2012, 12:32 AM
Hit Man X's Avatar
I LOVE BRUNETTES

Join Date: Sep 2004
Location: FUNKYTOWN
Posts: 9,085
Thumbs up

Euro dual logs are around if you look around and ask. I picked up the set for my M117 5.6L for $100. Judging by how pathetic the factory exhaust is on the US M116 3.8L (and the M117 5.0L), I would expect a large jump in power with a full dual system.

I would grab the muffler and resonator section off a second generation car, 420/560. Install the true dual manifolds with downpipes, and hook it all together. Running a cat is up to you, if you are exempt skip it. If you need one, Magnaflow makes a nice dual 2" in and dual 2" out with an integral O2 bung... they are about $100 last I looked.

Do not forget you can scrap your OE cats for large money currently and would probably offset the cost of the retrofit big time. This is my plan with my 560, but to retain the OE cat until exempt.
