I just replace a broken connecting rod with a new one after installing new hub carriers on my 1988 190E. The car drove fine for like 40 miles or so then I heard a clunk. The new connecting rod broke again!!!!!
What would contribute to such failure?

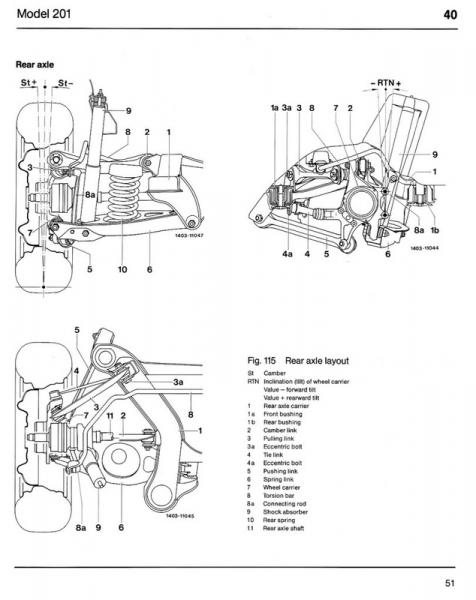

The connecting rod is part 8a on this picture

Attached Thumbnails



Did you use a OE MB part OR aftermarket China part?

__________________
MERCEDES Benz Master Guild Technician (6 TIMES)
ASE Master Technician
Mercedes Benz Star Technician (2 times)
44 years foreign automotive repair
27 Years M.B. Shop foreman (dealer)
MB technical information Specialist (15 years)
190E 2.3 16V ITS SCCA race car (sold)
1986 190E 2.3 16V 2.5 (sold)
Retired Moderator

I would replace those with ones from a 300TE. They are all metal. The only thing you'll need to do is shave bushing down a little bit so that it fits into the arm.

I snap one of these plastic ones once. ONCE. In a high speed turn. Not fun.

__________________
Cruise Control not working? Send me PM or email (jamesdean59@gmail.com). I might be able to help out.
Check here for compatibility, diagnostics, and availability!

(4/11/2020: Hi Everyone! I am still taking orders and replying to emails/PMs/etc, I appreciate your patience in these crazy times. Stay safe and healthy!)


82 300SD 145k
89 420SEL 210k
89 560SEL 118k
90 300SE 262k RIP 5/25/2010
90 560SEL 154k
91 300D 2.5 Turbo. 241k
93 190E 3.0 235k
93 300E 195k

Thank you for the reply!
After further inspection, this turned out to be a false alarm.
The noise sounded exactly as if the link was broken, just like the old one was making before.
Upon further inspection I suspect the exhaust system in the rear is banging against the car or part of the subframe. I will try to look more carefully this weekend.
Anyway, I suspected the torsion bar could have shifted hence pushed the link against the hub and broke the link that way. Luckily the sway bar is centered and its bushings are in place.

I was gonna say..."breaking" the sway bar link is pretty tough thing to do, let alone twice....lol.

__________________
http://i193.photobucket.com/albums/z...-RESIZED-1.jpg
1991 300E - 212K and rising fast...
