Smog pump removal

I am getting new manifolds (and exhaust) for my W126 420SE, and there is no way I am going to bolt that ugly smog pump to my new shiny manifolds. I looked at it closely, and a line goes up under my air cleaner from that disc shaped thing, but a stiff metal pipe goes behind my motor....so what is involved in removing the smog pump and all components involved? Also, my state does not do emissions tests, but if I ever had to do one, would this make me fail (still with a cat)? Thanks for any help.
__________________
'86 420SE Euro
904 Midnight Blue, Gray Velour
Dad bought it new, now I own it.

"A Mercedes-Benz is like a fine wine, it only gets better with age."
Reply With Quote
  #2
Old 04-01-2002, 06:28 PM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 19,759
Are you talking about the smog pump or the EGR valve? I thought it was the EGR system that had a hard line around the left cylinder head and under the intake manifold.

Sixto
91 300SE
87 300SDL
81 300SD
Reply With Quote
  #3
Old 04-01-2002, 11:07 PM
dpetryk's Avatar
Electrons can do anything

Join Date: Sep 2001
Location: Houston, Texas
Posts: 1,071
sixto, you are right, he is confusing the EGR system with the air injection system.

Good luck removing the EGR tube. You have to remove the intake manifold to get to it. But since you are getting new manifolds, you will have the intake manifold off. Should be easy then.

To remove the air (smog) pump simply remove it and plug all the connections.
__________________
I got too many cars!! Insurance eats me alive. Dave

78 Corvette Stingray - 3k
82 242 Turbo Volvo - Manual - 270k
86 300e 5 speed manual - 210k
87 420sel - 240k
89 560sl - 78k
91 420sel - 205k
91 560sel - 85k
94 GMC Suburban - 90k
97 Harley Davidson Heritage Softail - 25k
00 GMC Silverado 1 ton 30k
Reply With Quote
  #4
Old 04-02-2002, 12:18 AM
Registered User

Join Date: Feb 2002
Location: Orlando, FL
Posts: 788
OK...hmmm...well let me try to clear this up a little The thing that makes a hard turn around the left cylinder bank is hooked to the thing bolted to the top of my left manifold. So I want to get rid of whatever the thing is called that bolts into the left manifold with that little disc shaped thing sitting on top and everything else included. So that long pipe that makes a turn around the head goes into the intake manifold? How hard is the fitting to get to? Thanks for the info.
__________________
'86 420SE Euro
904 Midnight Blue, Gray Velour
Dad bought it new, now I own it.

"A Mercedes-Benz is like a fine wine, it only gets better with age."
Reply With Quote
  #5
Old 04-02-2002, 12:19 AM
Registered User

Join Date: Feb 2002
Location: Orlando, FL
Posts: 788
Wait wait wait...I just missed this and have to ask...I will have to take off the intake manifold to replace the exhaust manifolds??
__________________
'86 420SE Euro
904 Midnight Blue, Gray Velour
Dad bought it new, now I own it.

"A Mercedes-Benz is like a fine wine, it only gets better with age."
Reply With Quote
  #6
Old 04-02-2002, 03:11 AM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 19,759
I checked the manual and it does look like you at least have to remove the air flow sensor from the intake manifold since the pipe that goes from the EGR valve to the throttle body is one piece. The pictures aren't very descriptive so it's possible that you even have to separate the top and bottom pieces of the intake manifold.

It might be easier to cut and cap the pipe somewhere behind the cylinder head.

Sixto
91 300SE
87 300SDL
81 300SD
78 450SEL (sold)

Last edited by sixto; 04-02-2002 at 03:25 AM.
Reply With Quote
  #7
Old 04-02-2002, 06:45 AM
Registered User

Join Date: Feb 2002
Location: Orlando, FL
Posts: 788
Thanks....I am guessing that capping this pipe is not going to affect the operation of my motor in any way, right?
__________________
'86 420SE Euro
904 Midnight Blue, Gray Velour
Dad bought it new, now I own it.

"A Mercedes-Benz is like a fine wine, it only gets better with age."
Reply With Quote
  #8
Old 04-02-2002, 09:19 AM
dpetryk's Avatar
Electrons can do anything

Join Date: Sep 2001
Location: Houston, Texas
Posts: 1,071

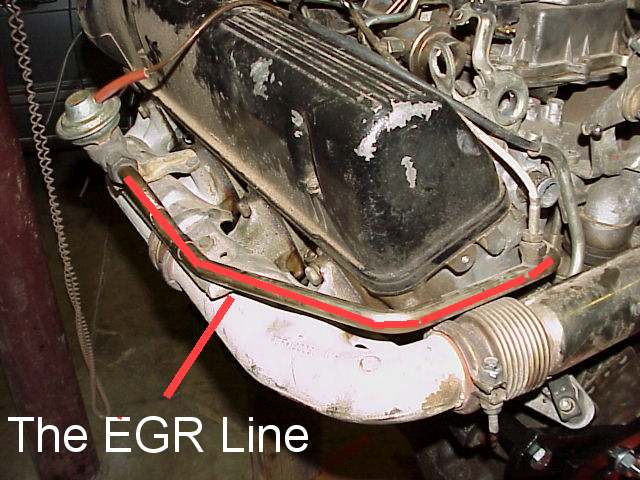

It will affect the operation of the engine. How much I cannot say. But you can see that it is going to be difficult to remove. The air mas flow plate and upper manifold must be removed to disconnect it.
Attached Thumbnails
Smog pump removal-mvc-581f.jpg
__________________
I got too many cars!! Insurance eats me alive. Dave

78 Corvette Stingray - 3k
82 242 Turbo Volvo - Manual - 270k
86 300e 5 speed manual - 210k
87 420sel - 240k
89 560sl - 78k
91 420sel - 205k
91 560sel - 85k
94 GMC Suburban - 90k
97 Harley Davidson Heritage Softail - 25k
00 GMC Silverado 1 ton 30k
Reply With Quote
  #9
Old 04-02-2002, 09:20 AM
dpetryk's Avatar
Electrons can do anything

Join Date: Sep 2001
Location: Houston, Texas
Posts: 1,071
See how it dissapears under the upper manifold. Even if you could disconnect it at its source, if the engine is in the car, you would not be able to slide it out. It would hit the firewall. Good luck to you.
Attached Thumbnails
Smog pump removal-mvc-582f.jpg
__________________
I got too many cars!! Insurance eats me alive. Dave

78 Corvette Stingray - 3k
82 242 Turbo Volvo - Manual - 270k
86 300e 5 speed manual - 210k
87 420sel - 240k
89 560sl - 78k
91 420sel - 205k
91 560sel - 85k
94 GMC Suburban - 90k
97 Harley Davidson Heritage Softail - 25k
00 GMC Silverado 1 ton 30k

Last edited by dpetryk; 04-02-2002 at 09:25 AM.
Reply With Quote
  #10
Old 04-02-2002, 09:24 AM
dpetryk's Avatar
Electrons can do anything

Join Date: Sep 2001
Location: Houston, Texas
Posts: 1,071
Just for fun here is one of the air pump.
Attached Thumbnails
Smog pump removal-mvc-576x.jpg
__________________
I got too many cars!! Insurance eats me alive. Dave

78 Corvette Stingray - 3k
82 242 Turbo Volvo - Manual - 270k
86 300e 5 speed manual - 210k
87 420sel - 240k
89 560sl - 78k
91 420sel - 205k
91 560sel - 85k
94 GMC Suburban - 90k
97 Harley Davidson Heritage Softail - 25k
00 GMC Silverado 1 ton 30k
Reply With Quote
  #11
Old 04-02-2002, 10:14 AM
Registered User

Join Date: Feb 2002
Location: Orlando, FL
Posts: 788
Well first of all, let me thank you for the great pictures! Just a few more questions. 1) Do you know how it will adversely affect my motor? 2) Does this thing sap any HP while in operation? 3) Would I just be better off to leave it on? My new manifolds have the hook up and all, so it would bolt right up. If I did take it off, I guess I could just cut it off right where it comes out from the motor and cap it. I don't want to adversely affect the motor though. Or I might just have to wait until this motor says goodbye and I get a new one! Again, thanks for all the help.
__________________
'86 420SE Euro
904 Midnight Blue, Gray Velour
Dad bought it new, now I own it.

"A Mercedes-Benz is like a fine wine, it only gets better with age."
Reply With Quote
  #12
Old 04-02-2002, 10:17 AM
pmizell's Avatar
Benz Zealot

Join Date: Jun 2001
Location: Houston, Texas
Posts: 838
Digital cameras and MS Paint can do anything!

Nice job Dave..

~Paul

___________________
'91 300E, 208k miles
Reply With Quote
  #13
Old 04-02-2002, 10:30 AM
dpetryk's Avatar
Electrons can do anything

Join Date: Sep 2001
Location: Houston, Texas
Posts: 1,071
All I can say about it is this; The engine is designed to recirculate some of the exhaust gas directly into the intake. This flow is not included in the air mass flow sensor stream. I dont know how it affects performance. But I assume the MB engineers do and they probably did their best to optimize the engine performance with it installed.

I cant answer your questions for sure. Maybe someone else knows.

Why not just polish it up and make it look pretty. The tube is stainless and will polish up nicely.
__________________
I got too many cars!! Insurance eats me alive. Dave

78 Corvette Stingray - 3k
82 242 Turbo Volvo - Manual - 270k
86 300e 5 speed manual - 210k
87 420sel - 240k
89 560sl - 78k
91 420sel - 205k
91 560sel - 85k
94 GMC Suburban - 90k
97 Harley Davidson Heritage Softail - 25k
00 GMC Silverado 1 ton 30k
Reply With Quote
  #14
Old 04-02-2002, 11:08 AM
kowached's Avatar
Rising Member

Join Date: Sep 2001
Location: Michigan
Posts: 74
Engine performance

I know someone that did the same thing with a TR7 and there have been no adverse effects to removing the EGR and Air Pump. There was a noteable difference when the air pump was removed (one less accessory running off of a belt up front), but not when the EGR was removed. Removing the EGR just made the enging compartment so much cleaner looking.

The local plumbing supply place was the only place around that had the correct thread on a plug for the air injector holes in the exhaust manifold.
__________________
Thanks,
Dave

1998 BMW 540i Sport
1995 E320
1992 400E
1989 BMW M3
1979 Triumph TR7 (1st car)
1986 BMW 735i (Sold)
1980 BMW 320i (Sold)
Reply With Quote
  #15
Old 04-02-2002, 12:35 PM
Registered User

Join Date: Feb 2002
Location: Orlando, FL
Posts: 788
Sounds great. But maybe I am a little confused on what is what. Are the air pump and EGR part of the same system? Or are they two different things? If I removed anything, it would be what is on the manifold and that pipe and I guess the little vacuum lines that run to it. Do I then need to remove a separate air pump? If I do this, I want to get rid of as much crap as possible. Thanks
__________________
'86 420SE Euro
904 Midnight Blue, Gray Velour
Dad bought it new, now I own it.

"A Mercedes-Benz is like a fine wine, it only gets better with age."
Reply With Quote
