1998 e320 No wipers/turn signal/washer

Hey,

Hey to me is this 1998 e320. Wipers, washer and turn signal doesn't work, High Beams work fine.

I just got this car running and have never really driven it. Looks like some PO tried to remove the steering wheel and gave up, so it might be the combination switch. (Tore up the steering wheel in the process I suspect)

an the combination switch be tested? There are only 6 pins on the connector so it shouldn't be that hard to figure out. Oh what it's a Mercedes,,,
__________________
With thousands of Pre-Owned Mercedes parts ready to ship, we are now "mobile friendly" check out
Benzbonz.biz
on your smart phone or tablet.
Reply With Quote
  #2
Old 02-20-2014, 07:19 PM
RichardM98's Avatar
Registered User

Join Date: Oct 2007
Location: SoCal
Posts: 651
Check fuses first of course. Removing the steering wheel can take some effort since the mounting bolt usually has threadlocker on it. See DIYs here and elsewhere for removal. Probably easiest to just replace it since it's not a on/off switch on a CAN bus car. FYI- Don't put key in ignition with airbag removed.
__________________
Good luck.






1998 E320 Wagon
Reply With Quote
  #3
Old 02-21-2014, 12:48 PM
mespe's Avatar
benzbonz

Join Date: Feb 2005
Location: Cleveland, Ohio
Posts: 1,812
This is pretty new to me. Already put key in igntion and turned to on with airbaq disconnected. Perhaps a whoops, perhaps not, as I have access to a SD connect.

I went to check fuses, but there is no fuse designation sheet in the fuse box in the left rear of the engine compartment.

Haven't as of yet found fuese designation for a 98 e320.

Which fuse should I check?
__________________
With thousands of Pre-Owned Mercedes parts ready to ship, we are now "mobile friendly" check out
Benzbonz.biz
on your smart phone or tablet.
Reply With Quote
  #4
Old 02-21-2014, 01:33 PM
mespe's Avatar
benzbonz

Join Date: Feb 2005
Location: Cleveland, Ohio
Posts: 1,812
Got er figured out,,, fuse 41 was missing,,, it was pulled by the PO because the right turn signal wouldn't turn off. So looks like I need a new combination switch
__________________
With thousands of Pre-Owned Mercedes parts ready to ship, we are now "mobile friendly" check out
Benzbonz.biz
on your smart phone or tablet.
Reply With Quote
  #5
Old 02-21-2014, 02:06 PM
RichardM98's Avatar
Registered User

Join Date: Oct 2007
Location: SoCal
Posts: 651

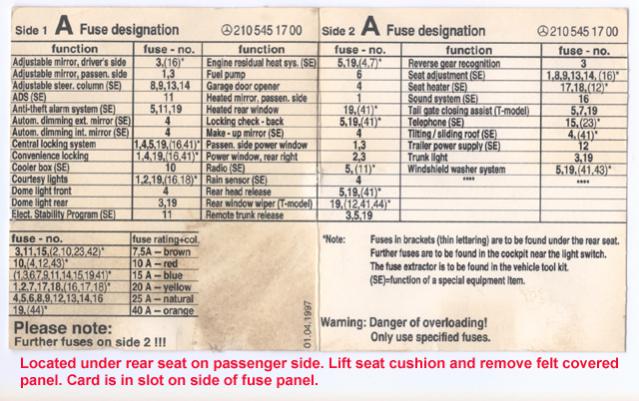

There are 3 fuse panels in the W210. 1) under the hood, 2) left end of dash (door must be open to access) and 3) under right rear passenger seat. There should be be fuse cards at each location.

Jpegs below in case anyone wants them.
Attached Thumbnails
1998 e320 No wipers/turn signal/washer-fusecard01.jpg   1998 e320 No wipers/turn signal/washer-fusecard02.jpg   1998 e320 No wipers/turn signal/washer-fusecard03.jpg
__________________
Good luck.






1998 E320 Wagon
