picture of 74 230 engine bay?

Does anyone have a picture of the 1974 230/4 engine bay? I am still trying to figure out the configuration of the air intake and the valve cover breather and haven't been able to find any useable information.

Specifically, the valve cover breather connects to a valve on the intake manifold, but then to where? Does it connect right at the mouth of the carb, or before the air filter? I am guessing the former. Anyone know what that hardware looks like?

thanks,
daniel
Reply With Quote
  #2
Old 05-14-2002, 12:14 PM
arochard
Guest

Posts: n/a
Try this one, it's of a '75, but should be similar.

www.dhc.net/~pmhack/mercedes/230751.htm





AARON ROCHARD

1976 230 W115
Reply With Quote
  #3
Old 05-14-2002, 11:11 PM
theoAtVecna
Guest

Posts: n/a
Helpful but different

Thank you very much,
Unfortunately the 75 carb setup was different it seems, and this owner replaced it with a Weber to boot.

With his Weber the tube goes from the ERG valve right into the carb body. I have looked at my Stromberg closely and have not found anywhere to connect the hose.

Anyone out there with a stock 74 230.4 that would be willing to take a shot of the engine for me?

thanks,
Daniel
Reply With Quote
  #4
Old 05-15-2002, 11:56 AM
arochard
Guest

Posts: n/a
Sorry about that, on my car, the valve cover breather is attached to a hard black plastic tube that attaches to the top of the EGR valve and then on to the neck of the hose coming from the air filter housing. Hope this helps. I also have another link for a mercedes archive search that might help:

http://www.mercedes.cx/archives/mq.html

Good luck,

AARON ROCHARD

1976 230 W115.
Reply With Quote
  #5
Old 05-17-2002, 10:50 PM
Black97S600
Guest

Posts: n/a
If you know what area or part your looking for I can get you a diagram of it. What is your year, chassis, model, or VIN (that is best).
Reply With Quote
  #6
Old 10-15-2002, 01:15 PM
arochard
Guest

Posts: n/a
Don't know if this will work, but I found one on Ebay:

Aaron Rochard

1976 230 W115
Attached Thumbnails

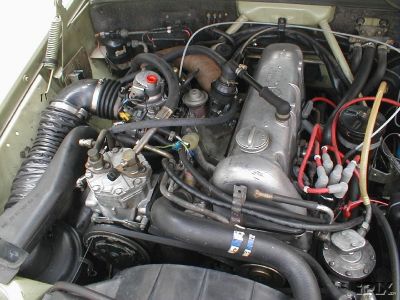

picture of 74 230 engine bay?-aaron.jpg
Reply With Quote
  #7
Old 10-15-2002, 02:55 PM
theoAtVecna
Guest

Posts: n/a
thank you, that is excellent.
