  #1
Old 07-17-2016, 02:29 AM
Registered User

Join Date: Nov 2015
Posts: 1
Fan clutch

!992 500SL I need to replace the fan clutch my existing fan clutch is part # 6299-05154116 its not the same clutch they show on the tech help DIY forum there seems to be a hex bolt in the center instead of the usual four my question is is this a right hand thread or left hand thread ? I've tried removing it by turning counter clockwise it will not break loose reason for my question L or R thread anybody out there know anything about this
I want to use 2 electric fans should they be placed on the inside of radiator or outside PULL or PUSH ?


Last edited by Rocketman500SL92; 07-17-2016 at 02:33 AM. Reason: need to know push or pull on electric fans
Reply With Quote
  #2
Old 07-17-2016, 05:21 AM
optimusprime's Avatar
Trevor Hadlington

Join Date: May 2014
Location: Worcestershire in England
Posts: 1,453
fan clutch

To find out the direction look at the fan rotation .If its going anticlockwise then open it in the other direction If it was to be removed in the same way as it rotates it will fall off.
Reply With Quote
  #3
Old 07-17-2016, 06:30 AM
lsmalley's Avatar
Registered User

Join Date: Oct 2006
Location: California
Posts: 2,136
Quote:
Originally Posted by optimusprime View Post
To find out the direction look at the fan rotation .If its going anticlockwise then open it in the other direction If it was to be removed in the same way as it rotates it will fall off.
This is not true. The fan on my w201 rotates ccw and to get it off you also need to turn it ccw.

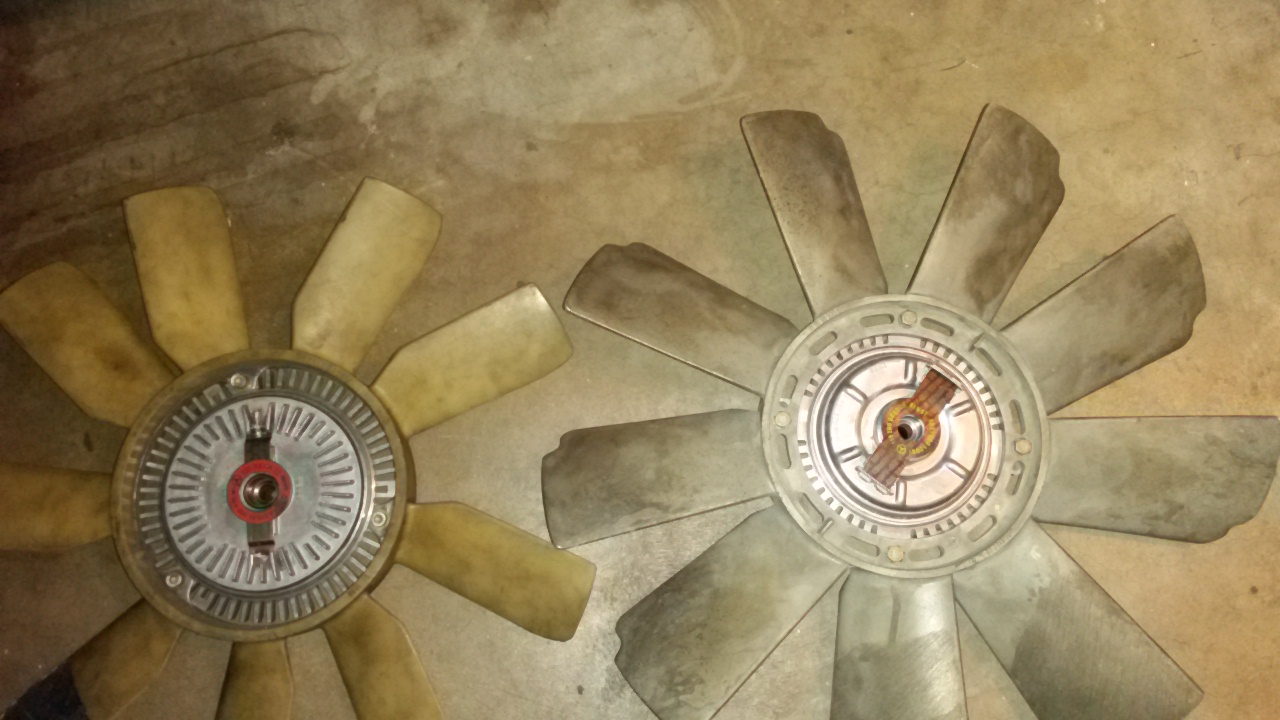

Just lock the clutch in place and break the center hex bolt. It rests in the center of the bi-metallic strip. And yes, there are four, 10mm botls, those actually hold the fan blade to the clutch. I am selling a fan clutch complete with the metal blades for $75 shipped. It's the larger one on the right. I have the center bolt for it as well.

PM me if interested.
Attached Thumbnails
Fan clutch-r129.jpg

__________________

1990 190E 3.0L
