Front Rotor doesn't have retaining bolt, how do I remove rotor?

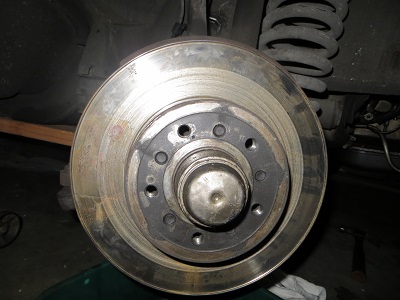

Here's a photo of the right front rotor on the 1991 560SEL. There doesn't appear to be a retaining bolt like the rear rotor; how do I remove it?


Attached Thumbnails
Front Rotor doesn't have retaining bolt, how do I remove rotor?-front-brake-rotor-001.jpg
Reply With Quote
  #2
Old 08-29-2016, 03:16 PM
Registered User

Join Date: Aug 2011
Location: Carolina
Posts: 1,416
Off with the entire hub assembly. Then separate the hub from the rotor.

Looks like there are bolts coming in from the back side holding it together. You should see them when you pull the hub off.

Top tip: once you get the hub/rotor off bolt back onto the wheel and tire. Gives you the leaverage to get the other boots out. Big breaker bar!
__________________
Current fleet
1992 300D "IceBerg"
1984 300D "Blues Mobile"

1978 300CD "El Toro" Gone on to be born again
Reply With Quote
  #3
Old 08-29-2016, 11:08 PM
Banned

Join Date: Dec 2007
Posts: 5,061
OK, I followed instructions from another poster and now have the rotor and hub off the car. Question; the outer bearing came out but the inner bearing is buried inside the hub.

Another poster mentioned that he removed the inner bearing by leaving the outside nut on the axle and when he pulled on the hub, the inner bearing came out. This idea seems like it might not be the best way to do it; any ideas on how to remove the inner bearing and seal?

I'm assuming I should repack both inner and outer bearings with new grease before mounting the new rotor????
Reply With Quote
  #4
Old 08-30-2016, 02:03 AM
Daantjie

Join Date: Nov 2014
Location: Vancouver, BC, Canada
Posts: 116
Buy a long seal puller. They are cheap and work well.
Reply With Quote
  #5
Old 08-30-2016, 06:48 AM
optimusprime's Avatar
Trevor Hadlington

Join Date: May 2014
Location: Worcestershire in England
Posts: 1,357
But not to much grease .Or it can get in to the brake system.
Reply With Quote
  #6
Old 08-30-2016, 10:26 AM
Banned

Join Date: Dec 2007
Posts: 5,061
Came across this video on wheel bearing replacement; notice how he reinstalls the castle nut and then uses the axle and hub as a slide hammer to remove the inner seal and bearing. I'm going to try the same idea on the 1991 560SEL.

https://www.youtube.com/watch?v=5TBJLXkRrpA
Reply With Quote
  #7
Old 08-30-2016, 11:03 AM
Registered User

Join Date: Feb 2011
Location: Modesto CA
Posts: 3,131
HM:

Insert a 1/2" drive extension through the hub and against the inner bearing, tap on extension to knock bearing and seal out.
Reply With Quote
  #8
Old 08-30-2016, 12:01 PM
compu_85's Avatar
Waiting for his Model 3..

Join Date: May 2008
Location: Springfield VA
Posts: 5,174
Are your bearings / seals bad? I just redid the brakes on my SDL, and re-used the seals and bearings as they were all in good condition. I did renew all the grease.

-J
__________________
1991 350SDL. 230,000 miles (new motor @ 150,000).

2013 Fiat 500E. 20,000 miles, 80 miles at a time.
2012 Passat TDI. 95,000 miles. More space, power, and fuel economy than the Benz
2004 Touareg V10 TDI. 150,000 miles. One of 450.
1999 Jetta TDI. 310,000 miles.
1992 Jetta ECOdiesel. 156,000 miles. 1 of 48. Sold.
1991 Jetta ECOdiesel. 430,000 miles. 1 of 700. Sold to VeeDubTDI, totaled in front of our house
Reply With Quote
  #9
Old 08-30-2016, 12:59 PM
Banned

Join Date: Dec 2007
Posts: 5,061
Are the bolts holding the hub to the rotor 10mm? I have a 10mm HEX BIT 3/8" drive that seems to fit but I want to make sure so that I don't strip the hub bolts!

Reply With Quote
