Need Photo of 1991 500SL CA Emissions Sticker

I'm looking for a photo of the silver 1991 500SL California emissions sticker. It is usually located on the radiator support above the passenger side headlamp.

One of the people at the BAR suggested that I have this to help the referee process for an engine swap go more smoothly. I'd really appreciate it if someone could post up a clear high-resolution photo of that sticker for me.

Thanks in advance!

__________________
1992 300D 2.5 TURBO

1991 560SEL M119.960

1991 420SEL Parting out.

1986 500SEL ECE Going to be sold soon.

1986 300SDL TURBO Going to be resurrected... eventually.

1992 190E 2.3 Sold to my brother.

1985 190D 2.2 Sold to a close friend.
Reply With Quote
  #2
Old 12-28-2016, 01:48 AM
lsmalley's Avatar
Registered User

Join Date: Oct 2006
Location: California
Posts: 1,991
R129 Vacuum diagram

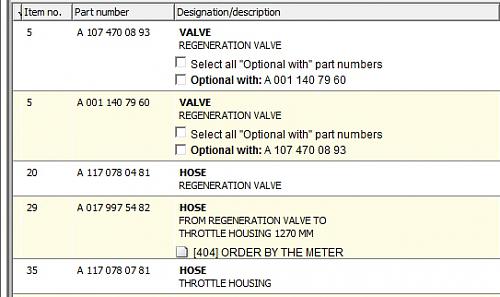

Does this help?
Need Photo of 1991 500SL CA Emissions Sticker-epc-r129-vaccum-diagram-2.jpg
Need Photo of 1991 500SL CA Emissions Sticker-epc-r129-vaccum-diagram-1.jpeg
Need Photo of 1991 500SL CA Emissions Sticker-epc03.jpeg
Need Photo of 1991 500SL CA Emissions Sticker-epc04.jpeg
Need Photo of 1991 500SL CA Emissions Sticker-epc05.jpeg
__________________

1990 190E 2.6L

Last edited by lsmalley; 12-28-2016 at 02:01 AM.
Reply With Quote
  #3
Old 12-28-2016, 02:05 AM
lsmalley's Avatar
Registered User

Join Date: Oct 2006
Location: California
Posts: 1,991

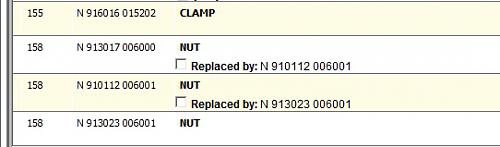

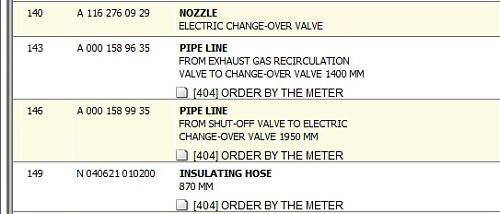

More pics

Need Photo of 1991 500SL CA Emissions Sticker-epc06.jpeg
Need Photo of 1991 500SL CA Emissions Sticker-epc07.jpeg
Need Photo of 1991 500SL CA Emissions Sticker-epc08.jpeg
__________________

1990 190E 2.6L
Reply With Quote
  #4
Old 12-28-2016, 03:16 AM
BenzEnthusiast's Avatar
Registered User

Join Date: Dec 2011
Location: Manteca, CA
Posts: 207
Thank you for replying, but I need a photo of the sticker like this one. It is from a 1992 500SL, but I need the one from a 1991 since between 1991 and 1992 Mercedes changed the upshift delay from an electric solenoid on the transmission to a vacuum device on the bowden cable. I don't want the referee to think that I'm missing a part of the emissions system.
Attached Thumbnails
Need Photo of 1991 500SL CA Emissions Sticker-425507d1328903389-vacuum-hose-help-needed-92-500sl-vacuum-schematic-2.jpg
__________________
1992 300D 2.5 TURBO

1991 560SEL M119.960

1991 420SEL Parting out.

1986 500SEL ECE Going to be sold soon.

1986 300SDL TURBO Going to be resurrected... eventually.

1992 190E 2.3 Sold to my brother.

1985 190D 2.2 Sold to a close friend.
Reply With Quote
  #5
Old 12-28-2016, 03:38 AM
lsmalley's Avatar
Registered User

Join Date: Oct 2006
Location: California
Posts: 1,991
You don't need a sticker to pass smog. Only thing they will check is your actual emissions output and visually inspect that the hoses are all connected properly and EGR is intact. They don't even verify that your smog pump is working, just that you have one if you're supposed to have one.
__________________

1990 190E 2.6L
Reply With Quote
  #6
Old 12-28-2016, 05:00 AM
optimusprime's Avatar
Trevor Hadlington

Join Date: May 2014
Location: Worcestershire in England
Posts: 1,354
google search> google images > top right for images in the search box put in emission lables .Look in there , lots but will need time .
Reply With Quote
  #7
Old 12-28-2016, 05:22 AM
optimusprime's Avatar
Trevor Hadlington

Join Date: May 2014
Location: Worcestershire in England
Posts: 1,354
Quote:
Originally Posted by optimusprime View Post
google search> google images > top right for images in the search box put in emission lables .Look in there , lots but will need time .
You can get them from any mb dealers .
Mercedes-Benz of Naples FL 34104 phone 866 542 9608 item number
1295840726 .
Reply With Quote
  #8
Old 12-28-2016, 01:41 PM
BenzEnthusiast's Avatar
Registered User

Join Date: Dec 2011
Location: Manteca, CA
Posts: 207
I know that it is not required as part of the emissions test, but I am going through the process of legalizing my engine swap. The engine from a 1991 500SL into a 1991 560SEL.

The only reason I'm looking for that sticker is because one of the technicians at the Board of Automotive Repair suggested having it to make the first inspection go more smoothly since they will be able to clearly see that the entire emissions system has been swapped over accurately.

I checked in the EPC and I have the part number for both stickers now.

1295848421 (guide sign, vacuum lines, CA, '91-'91 silver)

1295848021 (guide sign, air pollution control, CA, '91-'91 black or yellow)

Also, the dealer won't sell it because it's for emissions. They told me that those stickers were never available for sale and are only put on at the factory. Oh well, I'll find it some how.
__________________
1992 300D 2.5 TURBO

1991 560SEL M119.960

1991 420SEL Parting out.

1986 500SEL ECE Going to be sold soon.

1986 300SDL TURBO Going to be resurrected... eventually.

1992 190E 2.3 Sold to my brother.

1985 190D 2.2 Sold to a close friend.
Reply With Quote
  #9
Old 01-01-2017, 09:36 AM
Registered User

Join Date: Jun 2002
Location: Conway, SC
Posts: 296
You may want to call a different dealer. That answer sounds like bs to me. What do they tell a body shop that's trying to repair a car and needs to replace a damaged sticker?
__________________
Mercedes Benz Master Tech
Reply With Quote
  #10
Old 01-01-2017, 12:02 PM
BenzEnthusiast's Avatar
Registered User

Join Date: Dec 2011
Location: Manteca, CA
Posts: 207
I tried a few different dealers and they all said the same thing. The parts are no longer available and there is no stock anywhere. Besides, we couldn't sell it to you anyway.

They would probably tell the body shop what they told me. Call the Mercedes Customer Assistance Center and they will send you a letter that states that the car is compliant with the emissions regulations. I did that. The letter they sent was practically useless.

This is the body of the email they sent me:

Subject: Model: 500 SL
VIN: WDBFA66E8MF015697


Dear Mr. Edward Martin,

Thank you for your recent contact to the Mercedes-Benz USA, Customer Assistance Center.

This is to confirm that the above vehicle was produced on 7/9/1990, as a 1991 model year vehicle, and was manufactured in conformity with all U.S. DOT Federal Motor Vehicle Safety Standards (FMVSS), and U.S. Environmental Protection Agency (EPA) standards in effect at the time.

We hope you find this information useful. Best wishes for safe and pleasant driving.

Sincerely,


Nursen K
Mercedes-Benz USA, LLC
Customer Assistance Center
800-367-6372


So, I'd really appreciate it if someone with a 1991 California 500SL could simply send me a few closeup pictures of those stickers.
__________________
1992 300D 2.5 TURBO

1991 560SEL M119.960

1991 420SEL Parting out.

1986 500SEL ECE Going to be sold soon.

1986 300SDL TURBO Going to be resurrected... eventually.

1992 190E 2.3 Sold to my brother.

1985 190D 2.2 Sold to a close friend.
Reply With Quote
  #11
Old 01-01-2017, 08:39 PM
Registered User

Join Date: Dec 2003
Location: Rogersville, Missouri
Posts: 184
How bought trying your local craigslist, maybe you will find a seller willing to allow you the picture.

__________________
Paulwho
1987 190E-16v,
Reply With Quote
