w123 front bendix calipers

hello to everyone!
i try to reseal the front bendix calipers of my w123.
The kit comes with the dustboots and two metal rings that i assume they hold the dustboots in place.
do i have to place these metal rings over the dustboots or should i try to push them in the dustboots before i place the dustboots to the calipers?
thank you in advance
Reply With Quote
  #2
Old 10-17-2017, 05:56 AM
optimusprime's Avatar
Trevor Hadlington

Join Date: May 2014
Location: Worcestershire in England
Posts: 1,091
info

Are these the parts you have to replace the old ones ?
This is how they fit the piston..
Attached Thumbnails
w123 front bendix calipers-0015861142.jpg   w123 front bendix calipers-pop.jpeg
Reply With Quote
  #3
Old 10-17-2017, 09:56 AM
Registered User

Join Date: Jul 2017
Location: Cyprus
Posts: 3
Your photos are from an ATE caliper not a Bendix.
I uploaded photos of the parts.

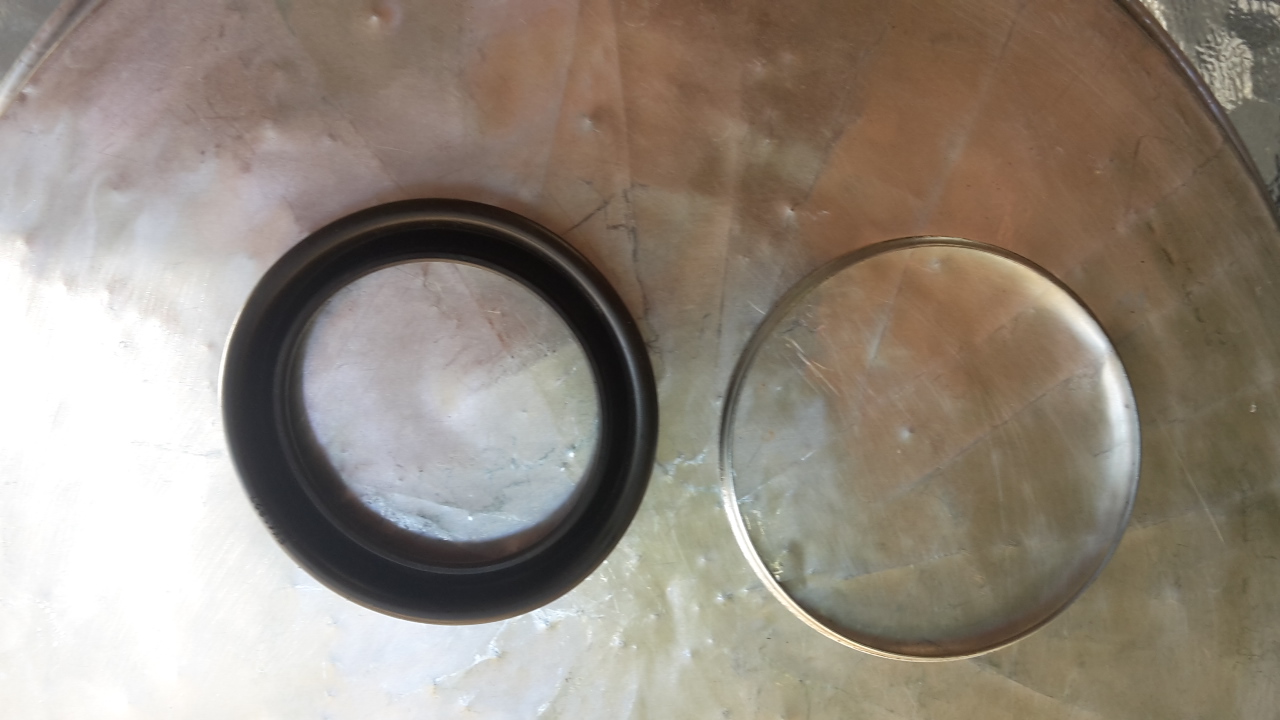

The first photo is the ring with the dust boot.
The second is the ring over the dustboot as if you had put the boot on the caliper first and pressed the ring on top afterwards.
The third is the dustboot upside down and me trying to put the ring into the boot from the side that mates to the caliper.
Which is the correct fitment?
Attached Thumbnails
w123 front bendix calipers-20171017_152824.jpg   w123 front bendix calipers-20171017_152834.jpg   w123 front bendix calipers-20171017_152919.jpg
Reply With Quote
  #4
Old 10-18-2017, 12:28 PM
optimusprime's Avatar
Trevor Hadlington

Join Date: May 2014
Location: Worcestershire in England
Posts: 1,091
parts

Sorry never saw the bendix brake part in your first post .And yes it could be the other type as you say.
Reply With Quote
  #5
Old 10-18-2017, 01:04 PM
optimusprime's Avatar
Trevor Hadlington

Join Date: May 2014
Location: Worcestershire in England
Posts: 1,091
PARTS

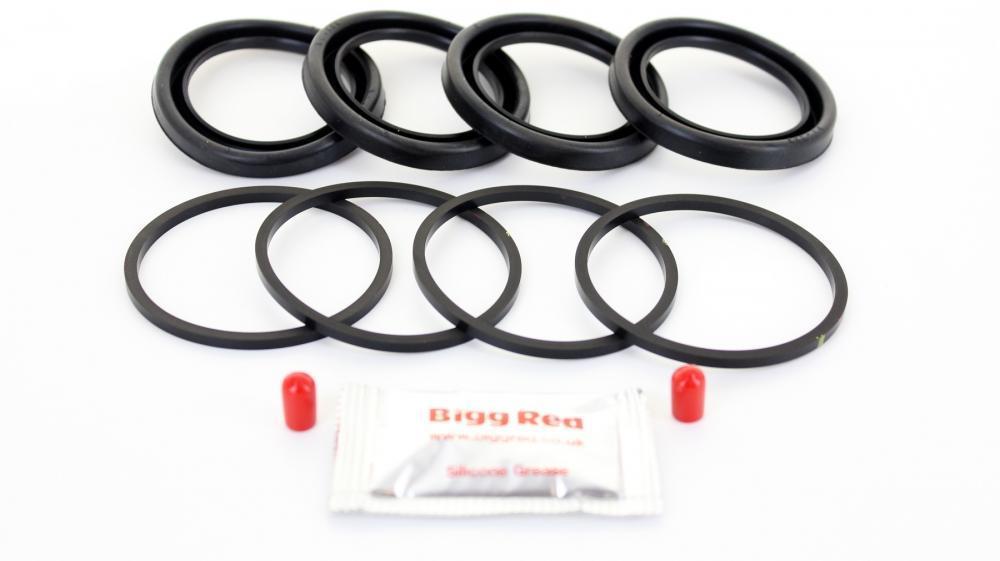

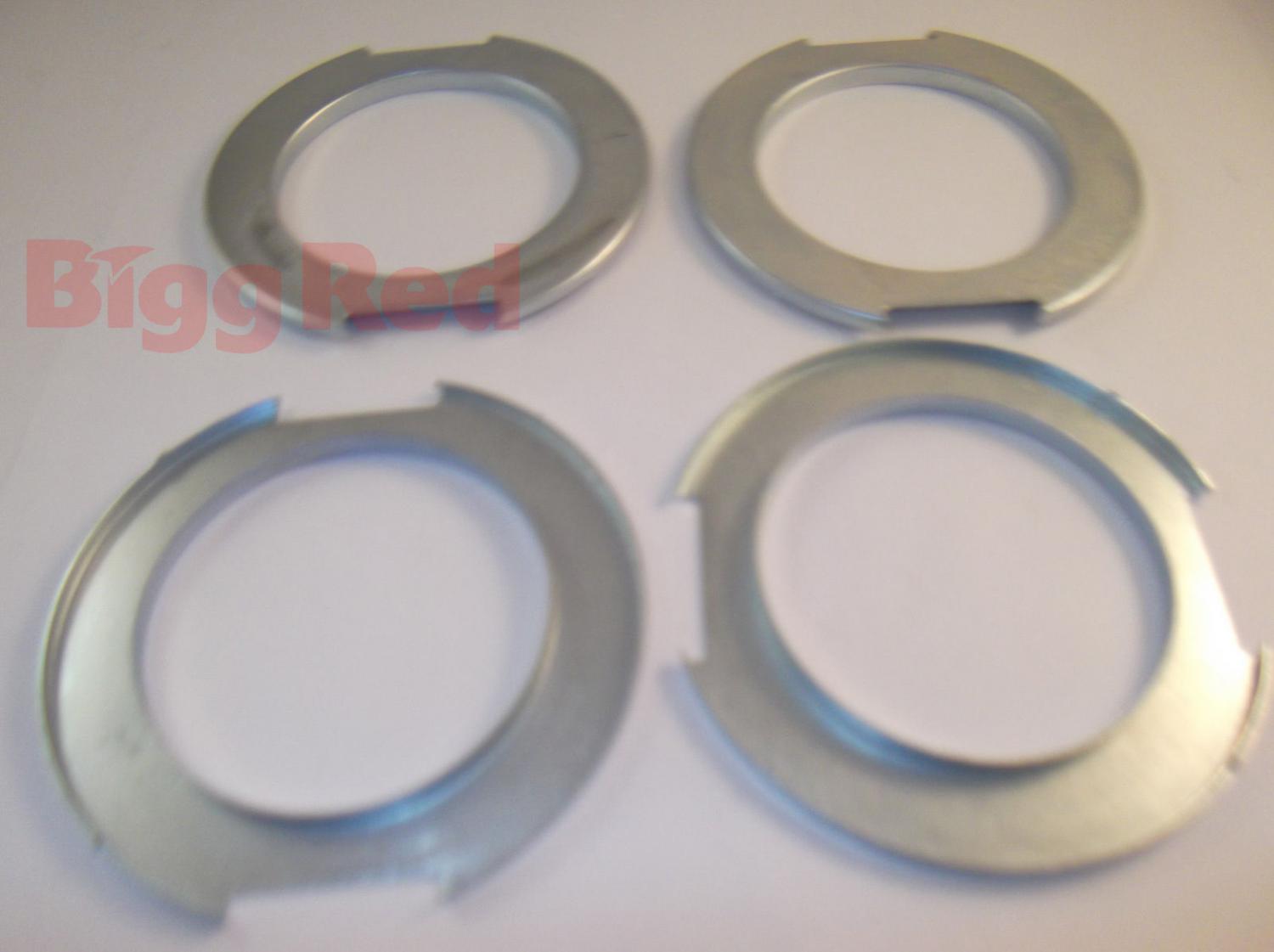

These are the bendix parts i find for the w123 .Dont know were the round clip is for ,nothing in my manual about that clip.
Attached Thumbnails
w123 front bendix calipers-me.jpg   w123 front bendix calipers-twh.jpg
Reply With Quote
  #6
Old 10-18-2017, 02:50 PM
Registered User

Join Date: Jul 2017
Location: Cyprus
Posts: 3
The dustboot retain ring part number is 0004210256
