1928 chevy 616 swap

I am building my old pickup with a 616 2.4 Diesel engine and auto transmission, I have to narrow the engine up a little to fit so I can close the hoods. Is there an intake for this engine that locates the T-Body above the engine or do I have to cut and weld the old one? Thanks for any information.

Reply With Quote
  #2
Old 11-04-2017, 11:39 PM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 20,794
Post this in the Diesel forum for more experienced discussion.

IIRC some 616s don't have a throttle plate. These engines are fuel throttled. I don't know what the air throttle plate is for. It might be possible to cut down a 617 turbo intake manifold which tucks tightly to the head. Do you have room for a one cylinder longer 617 instead of a 616?

This picture shows the manifold. It doesn't stick out more than the upper hose fitting -



Sixto
98 E320s sedan and wagon
Reply With Quote
  #3
Old 11-04-2017, 11:50 PM
Registered User

Join Date: Nov 2017
Posts: 4
That's interesting, no I don't have the room, I was just seeing if there was any way to make it work without cutting it. I can modify the one on it I think.
Reply With Quote
  #4
Old 11-04-2017, 11:55 PM
Registered User

Join Date: Nov 2017
Posts: 4

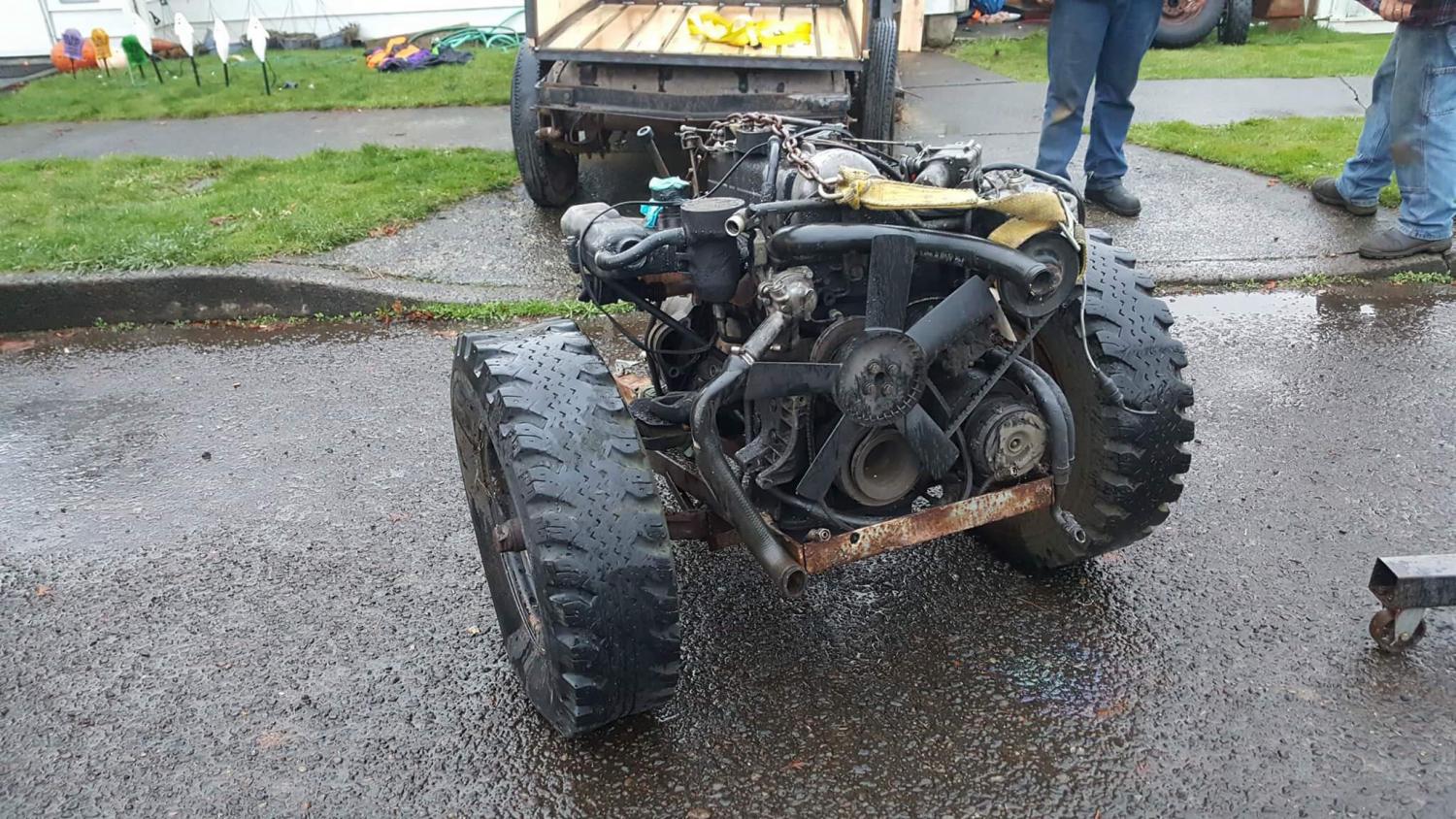

This is the motor, you can see it's really wide, I am removing the power steering.
Attached Thumbnails
1928 chevy 616 swap-image.jpg
Reply With Quote
  #5
Old 11-05-2017, 01:15 AM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 20,794
Here's another view of a 617 turbo -



You should be able to lop off and cap the 5th cylinder part of the intake manifold to fit a 616 then plumb the inlet port to an air cleaner.

Sixto
98 E320s sedan and wagon
Reply With Quote
  #6
Old 11-05-2017, 07:17 AM
engatwork's Avatar
busy

Join Date: May 2000
Location: Soperton, Ga. USA
Posts: 12,581
Or better yet get a diesel out of a 95 E300 to put in it. I've got a 67 Ford F100 I've been thinking about dropping one of these engines in it.
__________________
Jim
Reply With Quote
  #7
Old 11-05-2017, 11:02 AM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 20,794
You can get a naturally aspirated 617 in there. I’d consider a naturally aspirated 602 with turbo intake manifold and 5-speed since the cant keeps the engine’s bulk closer to centerline. It looks tight for 6 cylinders.



Sixto
98 E320s sedan and wagon
Reply With Quote
  #8
Old 11-05-2017, 08:36 PM
Registered User

Join Date: Nov 2017
Posts: 4
I will set this in and see how much room I have, with a tape I have about 2 inches.

Reply With Quote
