Originally Posted by sm. pelle View Post
For easier work and not dropping subframe, u can just unbolt subframe front bushings. Then subframe drops 2-4 inches.

Would the driveshaft need to be disconnected at the diff?


Quote:
Originally Posted by lsmalley View Post
Start by jacking up the car and mark the nuts/bolts as I described. Then remove the 30mm axle nut (this is necessary in order to remove the rear control arm). Remove rear caliper from wheel carrier and support it out of the way, remove the rotor, and rear parking brakes. Undo, the 13 mm bolt that holds the brake cable to the wheel carrier. Next, break loose all the bolts connected to the rear wheel carrier (that way they are already loose and you won't need leverage later to get them off). Then compress rear spring and undo bolt on inside control arm, shock bolt, outside control arm, and the bolt for the sway bar support link that is connected to the control arm. Now you should be able to remove the entire lower control arm. Now you can replace the first bushing in the control arm. Next, remove the wheel carrier by undoing the loosened bolts and use a jack stand to support the rear axle end. At this point you can now remove and replace each link one by one and be sure to pay attention to the markings you made. When you are done with the links, use that 30 mm socket to hammer out the bushing on the wheel carrier.

I will be referring back to this thread for sure when I get into this project. Your input will prove to be very valuable! Thanks...
__________________
1995 W124 Wagon

Dale

1995 E320 Wagon 185K
1988 260e Sedan 135K
2007 F-150 XLT 188K
2003 Harley Davidson FLTRI Anniversary 26K
-----------------------------
2006 BMW 330Ci 110K - SOLD
Reply With Quote
  #17
Old 11-25-2018, 02:01 PM
sm. pelle's Avatar
Registered User

Join Date: Apr 2007
Location: Estonia, Tallinn
Posts: 37
U don't have to disconnect driveshaft. I did without loosening subframe. Those two upper links body side bolts are pain in the ass, others are easy. I had to cut those.
__________________
MB 300CE Turbo '88
MB 300E
Reply With Quote
  #18
Old 12-19-2018, 10:11 AM
85 DSEL's Avatar
Documented User

Join Date: Oct 2006
Location: Dayton, Ohio
Posts: 1,023
Just discovered this last evening when I had the wheels up off the ground. YIKES! If I had any idea it was THIS bad, I'd probably not taken it on a 1000 mile trip to ATL last week....

YouTube video
__________________
1995 W124 Wagon

Dale

1995 E320 Wagon 185K
1988 260e Sedan 135K
2007 F-150 XLT 188K
2003 Harley Davidson FLTRI Anniversary 26K
-----------------------------
2006 BMW 330Ci 110K - SOLD
Reply With Quote
  #19
Old 01-06-2019, 12:19 PM
85 DSEL's Avatar
Documented User

Join Date: Oct 2006
Location: Dayton, Ohio
Posts: 1,023
Well, I now have in my hands the control arms repair kit and am trying to strategize how best to tackle the job. I'm looking for guidance from those who have actually done this job and can comment from experience whether it is reasonably doable to R&R one or two of these arms (to each side) due to the time I have available to work on it. I have a garage/shop to work in where it will be done without a lift other than the standard floor lift and jack stands/concrete blocks. I can't simply take it apart and leave it there for days on end. As slow as I work, there's no way I see this being a 'start-to-finish-without-coming-up-for-air' project so I'm trying to figure the best approach.


This afternoon, I may take the time to get under there and apply more penetrating solution to all the connections - which I have done twice in the past 10 days. Might go ahead and try loosening some of them to see how easy/difficult they are going to be. All in all I'm looking for more good advice (and encouragement!) such as that from lsmalley and others!


Dale
__________________
1995 W124 Wagon

Dale

1995 E320 Wagon 185K
1988 260e Sedan 135K
2007 F-150 XLT 188K
2003 Harley Davidson FLTRI Anniversary 26K
-----------------------------
2006 BMW 330Ci 110K - SOLD

Last edited by 85 DSEL; 01-06-2019 at 12:43 PM.
Reply With Quote
  #20
Old 01-06-2019, 03:53 PM
85 DSEL's Avatar
Documented User

Join Date: Oct 2006
Location: Dayton, Ohio
Posts: 1,023
Scratching my head here

How to get the 'keeper' (cover) off the 30mm hub nut? Is it supposed to simply 'pull' off?

Dale

__________________
1995 W124 Wagon

Dale

1995 E320 Wagon 185K
1988 260e Sedan 135K
2007 F-150 XLT 188K
2003 Harley Davidson FLTRI Anniversary 26K
-----------------------------
2006 BMW 330Ci 110K - SOLD
Reply With Quote
  #21
Old 01-06-2019, 04:29 PM
lsmalley's Avatar
Registered User

Join Date: Oct 2006
Location: California
Posts: 1,927
Quote:
Originally Posted by 85 DSEL View Post
Scratching my head here

How to get the 'keeper' (cover) off the 30mm hub nut? Is it supposed to simply 'pull' off?

Dale

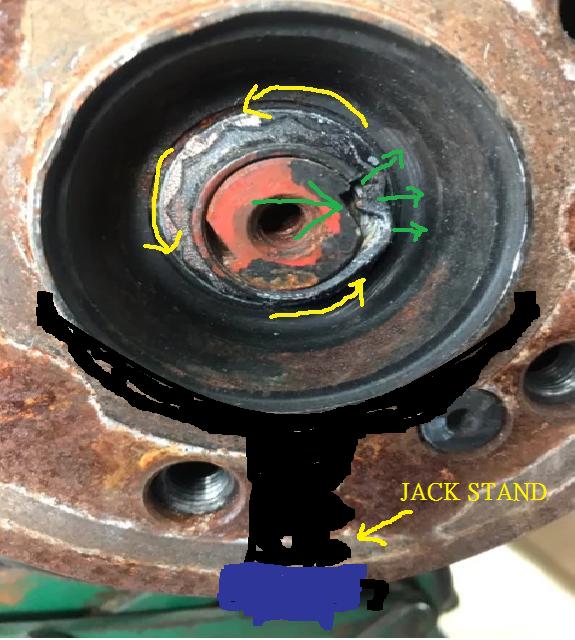

Remove the 30 mm nut by bending out the small tab and then rotate nut CCW. Be sure to set the e-brake and if you have a jack stand try setting the ceter of the hub lip right on the jack stand so when you loosen the nut, the stand prevents the wheel carrier from moving up and down. Remove the 6 bolts mounting axle to diff, drop the axle-to-diff end of the shaft, then push axle out.
