new to me 03 E500 91k miles.. got a question... posted pics

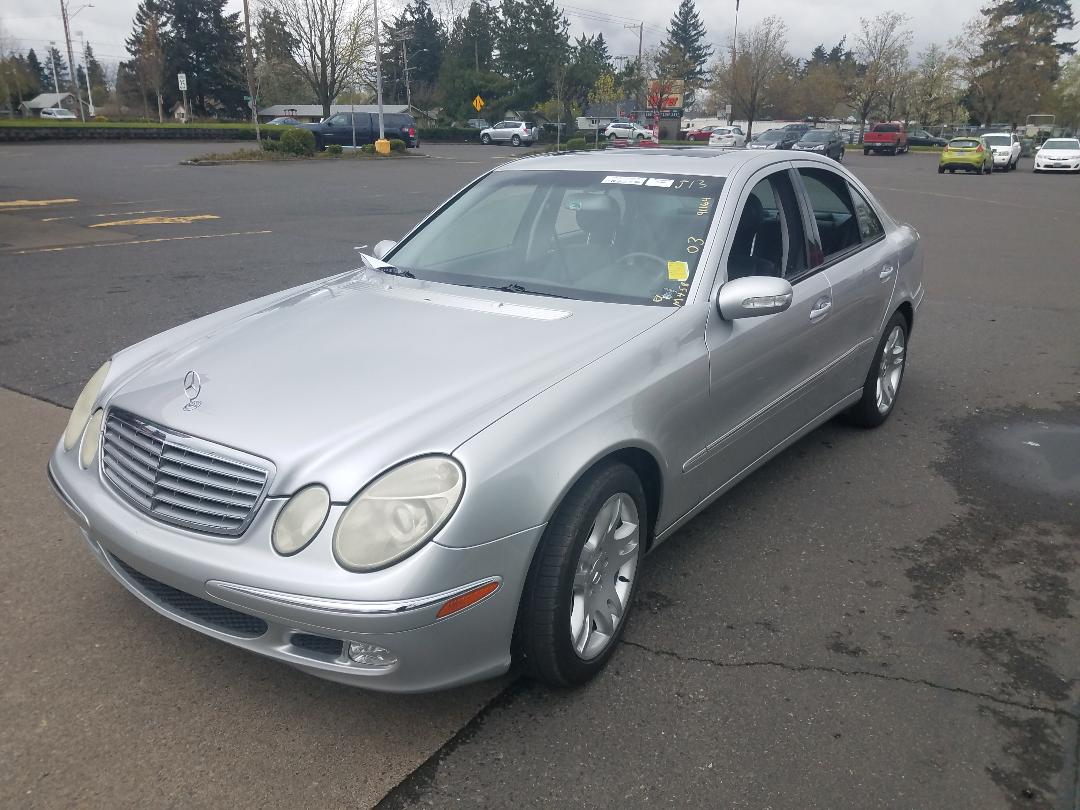

new to me 03 E500  91k miles.. got a question... posted pics-e51.jpg

new to me 03 E500  91k miles.. got a question... posted pics-e52.jpg

new to me 03 E500  91k miles.. got a question... posted pics-e53.jpg

so Ill be the 2nd owner of this hot rod

its got 91k with decent service records from Merc of Seattle...
its got the air ride suspension and the rear bag has a small hole that causes the compressor to work over time
"car is parked at repair shop until its replaced Monday"
would that leak cause both front and rear pass. side of the car to drop when parked or might I have 2 leaky bags?
its also getting new eng. trans. mounts
__________________
Live simply so others can simply live



07 E350 sport Wife's Daily
01 E320 sport My Daily
00 C230 Kompressor Our back up (new Arrival)

87 300D Turbo my Daily for 8 yrs. Selling to neighbor

82 GMC Jimmy (K5) 6.2 Diesel (my Wheeler)
73 Roadrunner 340ci My very first car, still own it

Last edited by davidlee; 04-13-2019 at 12:58 PM.
Reply With Quote
  #2
Old 04-13-2019, 09:34 AM
Registered User

Join Date: Oct 2004
Posts: 3,225
On that car there is a shutoff valve in each strut or airbag. If it leaks down when sitting, its safe to assume its a bad bag or strut on whatever corner goes down.

Keep in mind that even good struts and bags will leak down eventually, too. Mercedes has a spec of "its ok to fall down after so many days." I don't recall off hand how many but more than just a few.
__________________
90 300TE 4-M

Turbo 103, T3/T04E 50 trim
T04B cover .60 AR
Stage 3 turbine .63 AR
A2W I/C, 40 LB/HR
MS2E, 60-2 Direct Coil Control
3" Exh, AEM W/B O2
Underdrive Alt. and P/S Pulleys,
Vented Rear Discs, .034 Booster.
3.07 diffs, 1st Gear Start

90 300CE 104.980
Milled & ported head, 10.3:1 compression
197 intake cam w/20 advancer
4 ignition advance
PCS TCM2000 running 722.6 trans, 600W PWM fan, water injection
Sportline sway bars
V8 rear subframe, Quaife ATB 3.06 diff
Reply With Quote
  #3
Old 04-13-2019, 10:20 AM
Registered User

Join Date: May 2009
Location: The slums of Beverly Hills
Posts: 6,119
Has it had the fuel tank replaced? It's out of the 15 year warranty extension.

Last edited by tjts1; 04-13-2019 at 02:28 PM.
Reply With Quote
  #4
Old 04-13-2019, 12:55 PM
davidlee's Avatar
davidlee

Join Date: Mar 2012
Location: Portland OR
Posts: 597
Quote:
Originally Posted by tjts1 View Post
Has it had the fuel tank replaced? It's out of the 25 year warranty extension.
Ill call My local dealer and find out....was it a recal?
__________________
Live simply so others can simply live



07 E350 sport Wife's Daily
01 E320 sport My Daily
00 C230 Kompressor Our back up (new Arrival)

87 300D Turbo my Daily for 8 yrs. Selling to neighbor

82 GMC Jimmy (K5) 6.2 Diesel (my Wheeler)
73 Roadrunner 340ci My very first car, still own it
Reply With Quote
  #5
Old 04-13-2019, 12:57 PM
davidlee's Avatar
davidlee

Join Date: Mar 2012
Location: Portland OR
Posts: 597
Quote:
Originally Posted by duxthe1 View Post
On that car there is a shutoff valve in each strut or airbag. If it leaks down when sitting, its safe to assume its a bad bag or strut on whatever corner goes down.

Keep in mind that even good struts and bags will leak down eventually, too. Mercedes has a spec of "its ok to fall down after so many days." I don't recall off hand how many but more than just a few.
I appreciate the info.....I might have two leaky bags then.....
it took 24 hrs for the whole pass side to look sunk
__________________
Live simply so others can simply live



07 E350 sport Wife's Daily
01 E320 sport My Daily
00 C230 Kompressor Our back up (new Arrival)

87 300D Turbo my Daily for 8 yrs. Selling to neighbor

82 GMC Jimmy (K5) 6.2 Diesel (my Wheeler)
73 Roadrunner 340ci My very first car, still own it
Reply With Quote
  #6
Old 04-13-2019, 02:28 PM
Registered User

Join Date: May 2009
Location: The slums of Beverly Hills
Posts: 6,119
Quote:
Originally Posted by davidlee View Post
Ill call My local dealer and find out....was it a recal?
No, MB got sued because W211 fuel tanks were leaking gasoline when filled to the top. Usually you can smell gasoline in the garage when parked over night. NHTSA opened an investigation and as part of the settlement they agreed to extend the warranty to 15 years unlimited mileage from the date the car was first sold in order to avoid a recall. MB replaces the whole fuel tank, pump and sender. I had the tank replaced on my 04 in December 2018, 4 months before the warranty ran out.

25 was a typo. The SBC is covered by a 25 year warranty. Fuel tank is 15.
