Car won't start...W123 300TD

Hi all, it's been ages since I've been around, but I was getting the beast out, and was getting it ready to take to an event, when I plug in the key and turn it to ignition on thinking the glow plug light will come on. But, instead the seatbelt light is flickering, there's a loud buzzing coming from the thing pictured, no glow plug light, and when you turn the key to start position....there's nothing, starter doesn't even engage.

Attached Thumbnails
Car won't start...W123 300TD-pxl_20220611_234604415.jpg
__________________
1983 W123 300TD US spec Turbo engine, with Euro bumpers and manual climate control, and manual transmission.
Reply With Quote
  #2
Old 06-11-2022, 09:32 PM
Registered User

Join Date: Sep 2013
Location: Alhambra California
Posts: 3,039
Sounds like a dead battery.
Reply With Quote
  #3
Old 06-11-2022, 11:23 PM
crazy4diesel's Avatar
Registered User

Join Date: Aug 2013
Location: Los Angeles area
Posts: 627
I do keep a battery maintainer on it, and put a booster on it for a few minutes at 55 amps, and it still did the same thing.
__________________
1983 W123 300TD US spec Turbo engine, with Euro bumpers and manual climate control, and manual transmission.
Reply With Quote
  #4
Old 06-12-2022, 12:18 AM
Registered User

Join Date: Sep 2001
Posts: 2,081

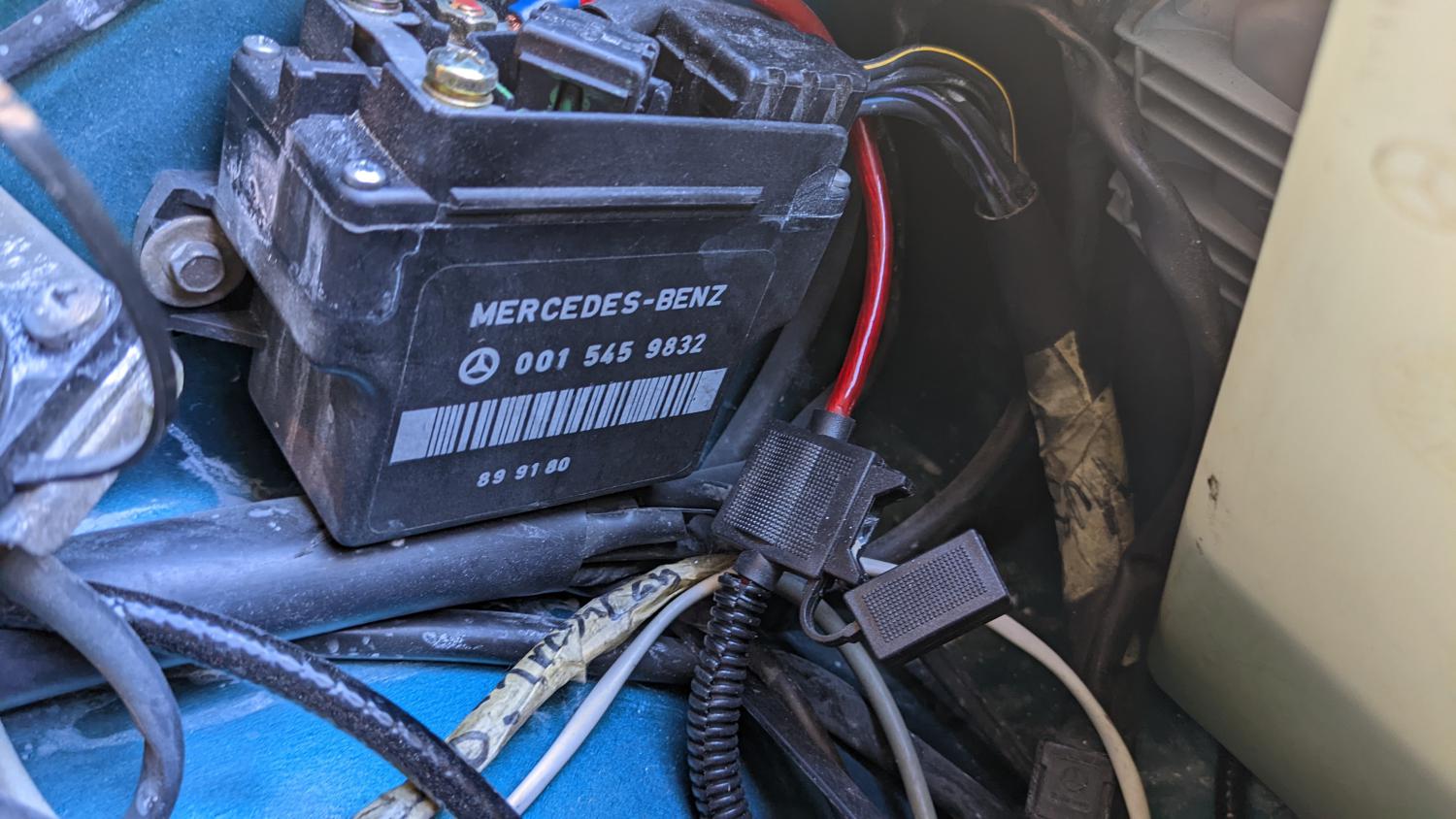

That is the glow plug relay in the picture.

Do the headlamps work with the key in the run position. What do the headlamps do when trying to crank the engine.

How old is the battery? How long ago was it run?
__________________
Does a Caddy stretch? No, but a Mercedes bendz.
Reply With Quote
  #5
Old 06-12-2022, 12:00 PM
crazy4diesel's Avatar
Registered User

Join Date: Aug 2013
Location: Los Angeles area
Posts: 627
The starter won't do anything when you crank the key. The glow plug relay buzzes and it's like shutting off all other ignition or that's what it seems like. It does have symptoms of a weak battery, but even when the 55amp booster was put on it, it was the same way. It has been a while since it was started, about 10 months maybe a year. But, it's always had the trickle charger on it. Also, when the battery charger/booster was on it, it showed the battery was fully charged.
__________________
1983 W123 300TD US spec Turbo engine, with Euro bumpers and manual climate control, and manual transmission.

Last edited by crazy4diesel; 06-12-2022 at 01:26 PM.
Reply With Quote
  #6
Old 06-12-2022, 02:07 PM
Jorn's Avatar
Registered User

Join Date: Nov 2003
Location: TheFlyingDutchManInHollywood
Posts: 6,300
Quote:
Originally Posted by crazy4diesel View Post
The starter won't do anything when you crank the key. The glow plug relay buzzes and it's like shutting off all other ignition or that's what it seems like. It does have symptoms of a weak battery, but even when the 55amp booster was put on it, it was the same way. It has been a while since it was started, about 10 months maybe a year. But, it's always had the trickle charger on it. Also, when the battery charger/booster was on it, it showed the battery was fully charged.
We have a 1965 Mustang parked in our garage, a favour for a friend who lives in NY. It was on a trickle charger for a long time, but everytime he would be in LA, twice a year and pick up the car to drive it the battery would be shot. Using a booster or charging it with cables would not start the car. A fresh battery did.
__________________
1979 Black on Black, 300CD (sold), 1990 Black 300SE, Silver 1989 Volvo 780, 1988 300CE (vanished by the hands of a girlfriend), 1992 300CE (Rescue).
Reply With Quote
  #7
Old 06-12-2022, 02:37 PM
crazy4diesel's Avatar
Registered User

Join Date: Aug 2013
Location: Los Angeles area
Posts: 627
Well, the battery is about 8 years, so...it is probably time for it to go to crap. It is strange the charger indicates it's fully charged.
__________________
1983 W123 300TD US spec Turbo engine, with Euro bumpers and manual climate control, and manual transmission.

Last edited by crazy4diesel; 06-13-2022 at 12:38 PM.
Reply With Quote
  #8
Old 06-13-2022, 10:56 AM
t walgamuth's Avatar
dieselarchitect

Join Date: Apr 2005
Location: Lafayette Indiana
Posts: 38,163
yes.
__________________
[SIGPIC] Diesel loving autocrossing grandpa Architect. 08 Dodge 3/4 ton with Cummins & six speed; I have had about 35 benzes. I have a 39 Studebaker Coupe Express pickup in which I have had installed a 617 turbo and a five speed manual.[SIGPIC]

..I also have a 427 Cobra replica with an aluminum chassis.
Reply With Quote
  #9
Old 06-13-2022, 08:17 PM
crazy4diesel's Avatar
Registered User

Join Date: Aug 2013
Location: Los Angeles area
Posts: 627
You guys are geniuses. New $200 battery, and she fired right up!

Thanks everyone!!!
__________________
1983 W123 300TD US spec Turbo engine, with Euro bumpers and manual climate control, and manual transmission.
Reply With Quote
  #10
Old 06-13-2022, 10:25 PM
Registered User

Join Date: Sep 2013
Location: Alhambra California
Posts: 3,039
Quality car batteries normally last a maximum of 5 years. After that you are really taking a chance even if using a trickle charger.
Reply With Quote
  #11
Old 06-14-2022, 10:49 AM
crazy4diesel's Avatar
Registered User

Join Date: Aug 2013
Location: Los Angeles area
Posts: 627
This one was a Mercedes-Benz battery, and you won't believe it but it was 12 years old!
