Help! Left W124 manuals at work.

I'm trying to figure out why the self-leveling on my '88 300TE isn't working and I left my manual CD's at work.

Could someone tell me which hole the rod is suppose to connect to on the controller arm. There are three holes on the arm and I believe the manual says one is for the 201 and the other is for the 124. I think the 124 is suppose to use the middle hole and the 201 uses the end hole. Could someone please check this?

Thanks,
UW
__________________
1988 300TE
1991 Miata
Reply With Quote
  #2
Old 08-06-2002, 10:30 PM
Banned

Join Date: Nov 2001
Location: Cape Cod Massachusetts
Posts: 1,427
This Could Help?

This?
Attached Thumbnails

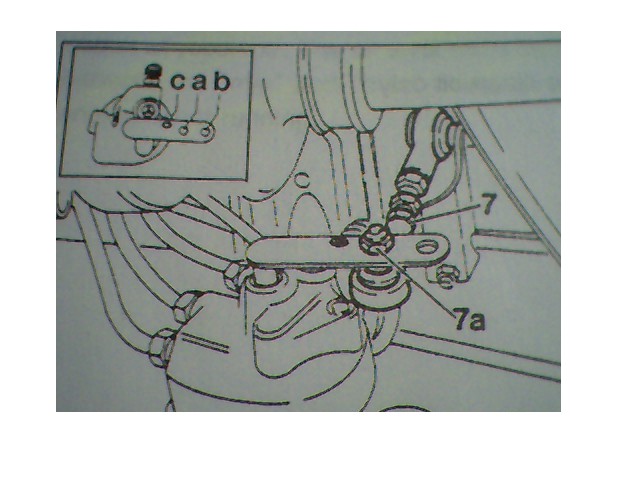

Help! Left W124 manuals at work.-124-1.jpg
Reply With Quote
  #3
Old 08-06-2002, 10:31 PM
Banned

Join Date: Nov 2001
Location: Cape Cod Massachusetts
Posts: 1,427
OK!
Attached Thumbnails
Help! Left W124 manuals at work.-124-2.jpg
Reply With Quote
  #4
Old 08-06-2002, 10:42 PM
Registered User

Join Date: Jul 2002
Location: Soggy Seattle
Posts: 30
Thanks Billybob! Interesting that the picture shows it in hole "a" but the text says "b". Guess I remembered the picture. I thought maybe I'd found the problem but turns out it was assembled correctly.

Thanks again,
UW
__________________
1988 300TE
1991 Miata
