Unhappy Strut question for newby

I don't know how I locked my own posting. Weird.

What is the difference between a shock and a strut. How do you know if a strut is bad vs. a shock.

Martin
Reply With Quote
  #2
Old 09-02-2002, 07:30 PM
Moderator

Join Date: Mar 2000
Location: Gainesville FL
Posts: 6,844
In general, a strut is a functioning member of the support of the vehicle. A structural device holding the vehicle relative to the tire.

A shock absorber is a dampener to spring movement/oscillation.

In some cars a shock absorber is built into a structural member and that is refered to a a strut. A strut doesn't have to have a shock in it; such as a longitudinal strut.

More simply put, a car wil roll down the road without a shock but will fold up without a strut.
__________________
Steve Brotherton
Continental Imports
Gainesville FL
Bosch Master, ASE Master, L1
33 years MB technician
Reply With Quote
  #3
Old 09-03-2002, 06:45 AM
MCAMEE2
Guest

Posts: n/a
Thank you Steve... If a strut is a structural member, how do they go "bad?" Are you talking about a strut with a shock integrated with it?

Martin
Reply With Quote
  #4
Old 09-03-2002, 08:57 AM
Moderator

Join Date: Mar 2000
Location: Gainesville FL
Posts: 6,844
Yes, some type suspensions incorporate the shock into one of the structural members. This of course has to be a member with a vertical component.

Because this strut now telescopes the device has more ways to fail than a normal shock who's concern is just in and out. The strut/shock also is responsible for the structural component of sideways play. Movement sideways on a vertical strut causes camber changes and often is the reason for negative camber that is uncorrectable whin normal adjusting mechanisms. This can be a concern on 124 and 201 bodies. The 202 and 210 bodies went back to upper and lower control arms.

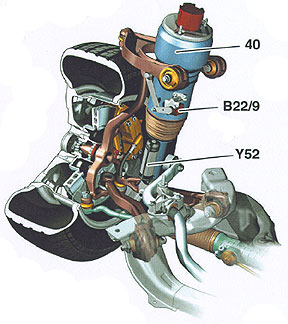

I am posting a picture, tell me what kind of suspension it is of the above two types. Anyone care to guess what car it is from?
Attached Thumbnails
Strut question for newby-sas.jpg
__________________
Steve Brotherton
Continental Imports
Gainesville FL
Bosch Master, ASE Master, L1
33 years MB technician
Reply With Quote
  #5
Old 09-03-2002, 09:02 AM
engatwork's Avatar
busy

Join Date: May 2000
Location: Soperton, Ga. USA
Posts: 11,777
Steve - my guess would be a new S class MB. The rack and pinion provides a clue for a newer model and the leveling mechanism provides a clue for a upper crust vehicle. The designations provide a clue for MB.
Just a guess.
__________________
Jim
Reply With Quote
  #6
Old 09-03-2002, 09:08 AM
Moderator

Join Date: Mar 2000
Location: Gainesville FL
Posts: 6,844
Good hints but wrong car.
__________________
Steve Brotherton
Continental Imports
Gainesville FL
Bosch Master, ASE Master, L1
33 years MB technician
Reply With Quote
  #7
Old 09-03-2002, 09:15 AM
Moderator

Join Date: Mar 2000
Location: Gainesville FL
Posts: 6,844
I just looked at a 220 chassis and it looks identical. I can't tell them apart, so good guess.
__________________
Steve Brotherton
Continental Imports
Gainesville FL
Bosch Master, ASE Master, L1
33 years MB technician
Reply With Quote
  #8
Old 09-03-2002, 02:48 PM
MCAMEE2
Guest

Posts: n/a
A picture is worth a thousand words - thanks for posting that Steve. I get it now!

Martin
Reply With Quote
  #9
Old 09-03-2002, 03:48 PM
Moderator

Join Date: Mar 2000
Location: Gainesville FL
Posts: 6,844
Actually, the picture is from a 211 chassis and the device #40 would be a shock by my definition (note both a upper and lower control arm positioning the wheel, through the spindle).

As it turns out another inferance in the term "strut" can refer to a shock that is used for load or height leveling. That is what this strut does.
