Driver seat leaning towards center of car

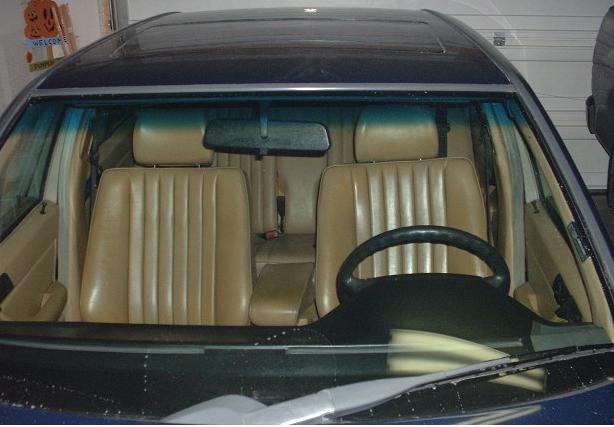

My 1988 300E driver seat is leaning towards the center of the car. The armrest is pushed down in a permanent angle as if the previous owner was putting alot of pressure on it over the years.
Could this be seat spring box that is causing the backrest to lean to one side? The seat is very springy with little support on the bottom.

Any ideas?

Thanks
Attached Thumbnails
Driver seat leaning towards center of car-untitled.jpg
Reply With Quote
  #2
Old 01-11-2003, 02:51 AM
Kyle Blackmore's Avatar
Mostly Harmless

Join Date: Sep 2001
Location: almost beyond Hope...B.C.
Posts: 897
Yes it looks like you have a broken spring or maybe the frame has broken.My 300D's driver seat is low on the outside and twists my back, it seems to have a broken spring,but the whole seat doesn't sit that way just the bottom.On my Mustang the seat frame was broken, I stripped the upholstery off and had a friend weld it back together.
__________________
1985 380SE- 160,000km 'Blistu' - Sold
1988 300CE- Eva,my garage mistress
2007 R350 4matic- The Black Pearl
2011 Ford Ranger-Work truck
1974 25' Trojan Sea Raider- 'Grannyknot'
2002 215 cm Atomic DH skis- Canadian SDH record holder, 175.5km/h- Vars 2010
Reply With Quote
  #3
Old 01-11-2003, 11:52 AM
Registered Diesel Burner

Join Date: Aug 2001
Location: Northern Virginia
Posts: 2,911
I think you must have a broken frame for the whole seat to lean like that.

Normally, with a few broken springs in the seat bottom, the seat back will not shift. In order for the seat back to shift, I think the frame would have to be broken.

Previous owner must have been REALLY large.



Ken300D

P.S. No offense meant if this has been a car passed down from family member to family member -
Reply With Quote
  #4
Old 01-11-2003, 12:25 PM
asiamood
Guest

Posts: n/a
Ha ha. Just bought it a few months ago. Previous owner unknown. I wonder if it is possible to repair a broken frame?? Or would it be better to look for a junkyard replacement...
Reply With Quote
  #5
Old 01-12-2003, 10:54 AM
Registered User

Join Date: Oct 2002
Location: Toronto, Canada
Posts: 700
switch the seats!

i did this in my car cause the the driver seat had bad springs, they still held, but unevenly, so I switched the seats, driver with passanger, now I'm comfy maybe one day I'll find a replacement for the bottom of it and have two good seats

xp
Reply With Quote
  #6
Old 01-12-2003, 04:33 PM
asiamood
Guest

Posts: n/a
Thanks for the tip. I didn't know that driver and passenger seat were interchangeable. If so, this could be an interim fix until I take a look at the seat frame.
Reply With Quote
  #7
Old 01-12-2003, 11:07 PM
Registered User

Join Date: May 2002
Posts: 403
xp190 - do you mean swap the entire seat -or- just the seat base? Or did you mean swap seat "innards" - cushion & pad?
Reply With Quote
  #8
Old 01-13-2003, 11:24 AM
G-Benz's Avatar
Razorback Soccer Dad

Join Date: Apr 2001
Location: Dallas/Fort-Worth
Posts: 5,711
This is a problem on my SL as well. I had the seat cushions out to inspect, and the incredibly solid metal frame looks fine. So I have yet to find the real problem.

I should have considered that the previous owner may have been quite large...
__________________
2009 ML350 (106K) - Family vehicle
2001 CLK430 Cabriolet (80K) - Wife's car
2005 BMW 645CI (138K) - My daily driver
2016 Mustang (32K) - Daughter's car
Reply With Quote
  #9
Old 02-01-2003, 10:45 PM
asiamood
Guest

Posts: n/a

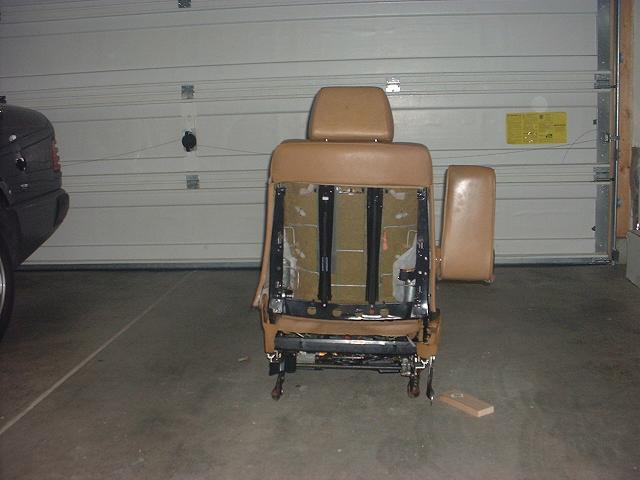

So I finally got around to pulling out the driver's seat to see if I can determine why the seat is leaning towards the center console of the 300E. I could not see any cracks in the frame back. Of course the spring box is shot but I'm gonna give Phil a call for a replacement. If I place the seat on the garage floor it definitely leans to the right (picture one). If I place a one inch piece of wood under the inner bottom of the frame (picture two) then the seat looks nice and even. It appears that the inner frame bottom may be bent.
Attached Thumbnails
Driver seat leaning towards center of car-dscf0037a.jpg
Reply With Quote
  #10
Old 02-01-2003, 10:46 PM
asiamood
Guest

Posts: n/a
photo of seat with wood underneath.
Attached Thumbnails
Driver seat leaning towards center of car-dscf0038a.jpg
Reply With Quote
  #11
Old 02-01-2003, 11:48 PM
Registered User

Join Date: May 1999
Location: Sacramento, CA
Posts: 1,472
Could be a problem with the lift motors underneath the seat - one of them may have temporarily jammed, allowing the motors to get out of synchronization. We have this problem on one of our cars, haven't yet gotten around to getting it fixed.

-anthony
Reply With Quote
  #12
Old 02-02-2003, 01:06 AM
asiamood
Guest

Posts: n/a
That is an excellent analysis as nothing appears bent or broken with the seat frame. Thanks for the input!
Reply With Quote
  #13
Old 02-02-2003, 01:10 AM
haasman's Avatar
Registered User

Join Date: Jun 2001
Location: San Francisco, CA
Posts: 3,097
asiamood

Quick question, since you have the seat out, are the driver's seat body mountings the same height left and right?

Haasman
__________________
'03 E320 Wagon-Sold
'95 E320 Wagon-Went to Ex
'93 190E 2.6-Wrecked
'91 300E-Went to Ex
'65 911 Coupe (#302580)
Reply With Quote
  #14
Old 02-02-2003, 01:28 AM
asiamood
Guest

Posts: n/a
I was looking closely at that and the floor mounting areas DO appear to be the same height.
Attached Thumbnails
Driver seat leaning towards center of car-dscf0040.jpg
Reply With Quote
  #15
Old 02-02-2003, 01:34 AM
haasman's Avatar
Registered User

Join Date: Jun 2001
Location: San Francisco, CA
Posts: 3,097
This is getting very interesting. OK, the the seat track attachment points appear to be on the same level on the body. So what makes the right seat track shorter than the left? (OK or visa versa!).

I have seen this before in a 300SD and a 300D What's the cause! Thanks for this thread.

Anybody?

Haasman
__________________
'03 E320 Wagon-Sold
'95 E320 Wagon-Went to Ex
'93 190E 2.6-Wrecked
'91 300E-Went to Ex
'65 911 Coupe (#302580)
