Whats your diagnosis?

Well, we are at a loss here with our 1985 380SL. We have gone through 3 fuel distributors and finally got one that seems to work. But.... we have one cylinder that just won't clean up. The plug is really dirty. And the car smokes after sitting at a light, like its loading up. Does any one have any idea what to look at next? Should we pull the top of the motor apart and look into the cylinder? Any suggestions would really be appreciated.
Reply With Quote
  #2
Old 03-02-2003, 10:36 PM
ILUVMILS's Avatar
Senior Member

Join Date: Sep 2002
Location: New Jersey, U.S.A.
Posts: 2,461
Injector? Cap/rotor? Plug wire? O2 sensor? Fuel pressure regulator? What was the reason you replaced the fuel distributor to begin with. More info!
Reply With Quote
  #3
Old 03-02-2003, 10:48 PM
pattywack
Guest

Posts: n/a
The car had sat in Phoenix for 8 months and the distributor had gummed up, so we replaced it. We also replaced the injectors, cap and rotor, O2 sensor, & plugs and wires. We were going to try to replace the one injector and see if that helps. When we first got the car, it smoked all the time. Now, it only smokes when we take off from a stop. We also had to work on the vacuum lines, they were set up incorrectly. We were told when we bought the car that it needed a valve job, but we're not real sure if thats right or not. Could the fuel pressure regulator mess up just one cylinder?
Thanks for your time!
Reply With Quote
  #4
Old 03-02-2003, 10:50 PM
Larry Delor's Avatar
What, Me Worry?

Join Date: Jun 1999
Location: Sarasota, Fl.
Posts: 3,077
it might not need a valve job, but I bet the odds that it needs new valve seals are pretty good. (might explain the dirty plug too) How is your oil consumption?
__________________
"...rationality of thought imposes a limit on a person's concept of his relation to the cosmos." -Nash

04/71 280SE 195k
09 Jetta TDI
Reply With Quote
  #5
Old 03-02-2003, 10:55 PM
pattywack
Guest

Posts: n/a
No massive consumption by any means, but we can smell fuel in the oil. And that cylinder (number 8) throws 160 pounds when we crank it.
Reply With Quote
  #6
Old 03-03-2003, 11:07 AM
pattywack
Guest

Posts: n/a
Any more ideas?

thanks for your help!!!!
Reply With Quote
  #7
Old 03-03-2003, 11:23 AM
Registered User

Join Date: Sep 2002
Location: Newcastle upon Tyne, UK
Posts: 215
Is the dirty plug wet or dry?

Dry means that it is running rich or not firing all the time. Since the rest of the engine is not rich, chances are it's an ignition problem.

Wet means that it's burning oil, so probably a valve stem wear problem or tired oil seal.
__________________
Cheers, Neil
Reply With Quote
  #8
Old 03-03-2003, 11:59 AM
Registered User

Join Date: Jan 2002
Location: England
Posts: 1,841
Quote:
Originally posted by Larry Delor
it might not need a valve job, but I bet the odds that it needs new valve seals are pretty good. (might explain the dirty plug too) How is your oil consumption?

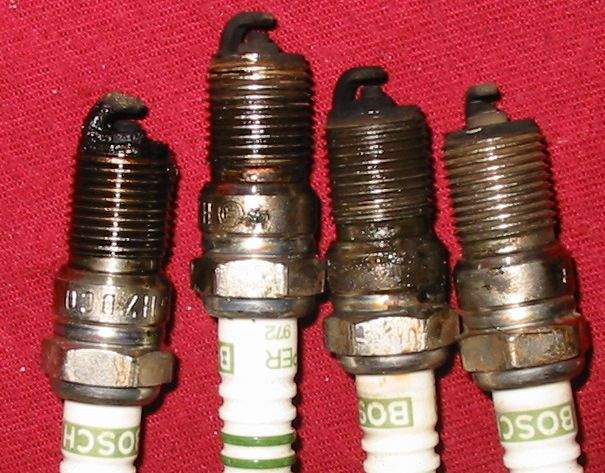

I'm tempted to suggest valve seals.. do your plugs look like this picture? That's how mine get. Sometimes they have lots of grey crumbley crud on, a bit like ash.. that is caused by oil too.
Attached Thumbnails
Whats your diagnosis?-plugs2.jpg
__________________
190E's:
2.5-16v 1990 90,000m Astral Silver
2.0E 8v 1986 107,000m Black 2nd owner
http://www.maylane.demon.co.uk/190esmall.jpghttp://www.maylane.demon.co.uk/190esmall2.jpg
Reply With Quote
  #9
Old 03-03-2003, 12:32 PM
pattywack
Guest

Posts: n/a
This plug is coming out fuel saturated. None of those plugs resemble what our plug is doing. We originally purchased a "used" fuel distributor and we're not sure if that threw some dirt into the new injectors. The funny thing is, when we gap the plug really wide, it starts to clean up a bit and runs better.

Thanks for taking the time to help!
Reply With Quote
  #10
Old 03-03-2003, 12:39 PM
Registered User

Join Date: Aug 1999
Location: Florida / N.H.
Posts: 8,777
An easy test of plug, wires , inj., etc . is to swap them from the bad cyl. with the ones from a known good one and see if the problem moves with the swap...
Specially plug wires....
Reply With Quote
  #11
Old 03-03-2003, 01:57 PM
Registered User

Join Date: Feb 2003
Location: Ontario, Canada
Posts: 3,160
Hi there,

I am not a mercedes technician, but would bet, that you have one injector "dripping". i.e. not closing all the way.
If your fuel distributor was gummed up from sitting, a gummed up injector would not surprise me.
The reason why the engine runs better with a larger than normal gap is, you are getting a bigger ( stronger ) spark. Hope this helps you a little.
P.S. If it was my car, I would try a triple dose of fuel injector cleaner first.

Last edited by manny; 03-03-2003 at 04:07 PM.
