using the turbo booste port ; need tech. help

Anyone know if the port on the 5cyl 300 turbo Diesel (1984 era) for the booste gauge is metric threads orrr? .

ok, after some talk with an engineer about an LP booste setup the desision is to use the port where the turbo booste gauge gets it's pressure. I want to put a Y into this port. ONe side of the Y will be the booste gauge and the other side the LP injection.
Anyone see a reason to NOT use this port. If so... please have handy a suggestion on another port usable for LP injection.

Why LP injection? Load up ur car or waggon with the 5cyl 300 turbo in it untill it weighs 5 1/2 tons then try driving up long upgrades and you'll understand why. You'll understand even better if you change the gear rations to LOW tractor like power. Thats my set up.. a Unimog w/the 617 925

LP will only be used on hills.. sorta like a nitrous kick in a gasser.
__________________
"If anyone knows other lessons I need to learn, please tell me. I'm tired of learning them the hard way".
by JerryBro


The Glow Plug Wait: This waiting period is a moment of silence to pay honor to Rudolph Diesel. The longer you own your diesel the more honor you will give him". by SD Blue

My normal daily life; either SNAFUed- Situation Normal... All Fouled Up, or FUBARed- Fouled Up Beyond All Repair

62 UNIMOG Camper w/617 Turbo, 85 300SD daily driver- both powered by blended UCO fuels
Reply With Quote
  #2
Old 06-07-2003, 02:33 AM
Registered User

Join Date: May 2003
Location: bullhead city, az hot as hell
Posts: 301
my 83 does not have a boost guage, the only port would be the port for the waste gate and it is a puch on with a hose clamp
Reply With Quote
  #3
Old 06-07-2003, 08:48 AM
coachgeo's Avatar
Registered User

Join Date: Jan 2003
Location: TX between Dallas and OK
Posts: 1,793
Quote:
Originally posted by hihosilver
my 83 does not have a boost guage, the only port would be the port for the waste gate and it is a puch on with a hose clamp
Im wondering if we are talking the same thing..... I have no clue where the wastegate is, nor if that spot could be used for a boost gauge

Then again maybe my port was added by the previous owner?
__________________
"If anyone knows other lessons I need to learn, please tell me. I'm tired of learning them the hard way".
by JerryBro


The Glow Plug Wait: This waiting period is a moment of silence to pay honor to Rudolph Diesel. The longer you own your diesel the more honor you will give him". by SD Blue

My normal daily life; either SNAFUed- Situation Normal... All Fouled Up, or FUBARed- Fouled Up Beyond All Repair

62 UNIMOG Camper w/617 Turbo, 85 300SD daily driver- both powered by blended UCO fuels
Reply With Quote
  #4
Old 06-07-2003, 12:23 PM
Registered User

Join Date: May 2003
Location: bullhead city, az hot as hell
Posts: 301
the waste gate is to set the boost of the turbo and the line that I was talking about tells the waste gate to open or close by the pressure
Reply With Quote
  #5
Old 06-13-2003, 11:58 PM
coachgeo's Avatar
Registered User

Join Date: Jan 2003
Location: TX between Dallas and OK
Posts: 1,793

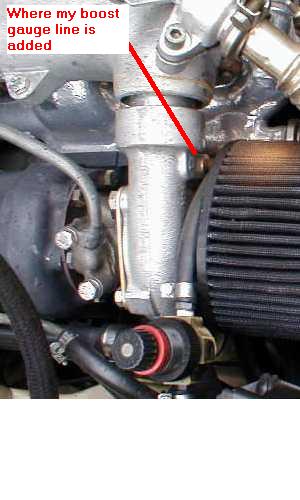

I found this pic while doing a search here on this BB. This is not my engine but it is a good sample shot. I labled it to show where my boost gauge line is installed. It is a standard SAE pipe thread I discovered today.
