Question Trunk Lock Tumbler Removal?

Well, I figured out how to replace the door and ignition tumblers with no help from the CD manual. Dose anyone here have experiance with the trunk tumbler? I can't figure it out!
Thanks in Advance!
Adam
__________________
Current Stable:
01 ML55 AMG
92 500E (a few mods)
87 300E (lots of mods)
00 Chevy 3500HD Diesel Box Truck
68 18' Donzi Marine
06 GT i-Drive7 1.0 Mountain Bike (with GPS!)

PREVIOUSLY OWNED:83 300SD, 87 420SEL, 88 420SEL, 90 420SEL, 86 560SEL, 86 190E 2.3-16V AMG, 94 E320

Reply With Quote
  #2
Old 06-26-2003, 09:31 PM
300EVIL's Avatar
Moderator Incarnate

Join Date: Apr 2000
Location: Lake Geneva, WI.
Posts: 1,676
TTT
__________________
Current Stable:
01 ML55 AMG
92 500E (a few mods)
87 300E (lots of mods)
00 Chevy 3500HD Diesel Box Truck
68 18' Donzi Marine
06 GT i-Drive7 1.0 Mountain Bike (with GPS!)

PREVIOUSLY OWNED:83 300SD, 87 420SEL, 88 420SEL, 90 420SEL, 86 560SEL, 86 190E 2.3-16V AMG, 94 E320

Reply With Quote
  #3
Old 06-28-2003, 06:01 AM
zhandax
Guest

Posts: n/a
Looking at the replacement I will install in the next week or so, the most likely access point to remove just the tumbler is from this hole on the side opposite the latch

Is replacing the door tumblers as straightforward as it sounds in Haynes?
Attached Thumbnails
Trunk Lock Tumbler Removal?-300e-trunk-lock-bottom.jpg
Reply With Quote
  #4
Old 06-28-2003, 06:45 AM
zhandax
Guest

Posts: n/a

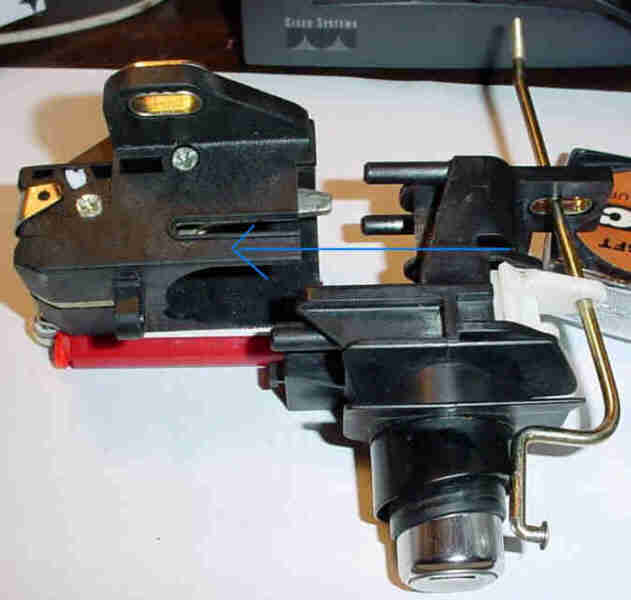

After playing with the lock assembly, it seems I am in error.
The rear of the assembly slides off in the direction of the arrow in the pic.
Attached Thumbnails
Trunk Lock Tumbler Removal?-300e-trunk-lock-012.jpg
Reply With Quote
  #5
Old 06-28-2003, 06:48 AM
zhandax
Guest

Posts: n/a

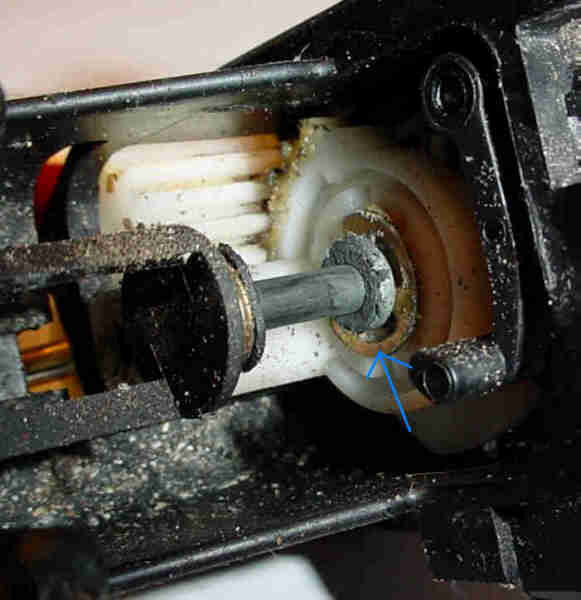

This circlip may be what you are looking for
Attached Thumbnails
Trunk Lock Tumbler Removal?-300e-trunk-lock-017.jpg
Reply With Quote
  #6
Old 06-29-2003, 12:40 AM
300EVIL's Avatar
Moderator Incarnate

Join Date: Apr 2000
Location: Lake Geneva, WI.
Posts: 1,676
zhandax,
WOW, Thanks a lot! Those pictures are a big help! now I know what I am dealing with. The door and ignition locks were a snap! Please feel free to email me if you have any questions on installing them.
Thanks Again!
Adam
