  #1
Old 12-10-2003, 11:26 AM
Registered User

Join Date: Apr 2003
Posts: 44
Unhappy Cruise Control stick broke

OMG, I think I just broke it, the cruise control stick is so loosen...on my E320 (W210).
I have checked the price and availability of the parts. But need some advice on removing the airbag, steering wheel, and necessary parts safely.

Thanks!!
__________________
'74 W114 230.6
'87 W201 190E 2.3-16
'97 W210 E320 Avantgarde
Reply With Quote
  #2
Old 01-27-2004, 11:12 AM
Registered User

Join Date: May 1999
Location: Philadelphia, PA USA
Posts: 272
Cruise control stalk

Did you ever get help on this.. I have pix if you need to see them.. I did the same to my car. Actually it was not broke,it just came out of the socket. I had to remove the airbag then the steering wheel, to get to it.. You can e-mailme privately, I believe the pix may be too big to send through this site..

Peter
__________________
Peter L. House
1998 Sport E430
Azure Blue
110,000k Miles

1987 Oldsmobile Cutlass Salon
V8 Bucket Seats
Factory Moon Roof
Reply With Quote
  #3
Old 04-14-2004, 11:21 AM
Registered User

Join Date: Oct 2003
Posts: 3
hi,
can you provide those pix to me too... please
I need to replace the combination switch on my e320.
my e-mail is c.benedetti@email.it
thank you a lot
Reply With Quote
  #4
Old 04-16-2004, 11:40 AM
Registered User

Join Date: Apr 2004
Posts: 6
Would you mind to send me a copy of those pictures please. I am going to change the CC switch on my C180 to see if that is the problem with my intermittant operating CC. Thanks
Reply With Quote
  #5
Old 04-16-2004, 01:35 PM
Registered User

Join Date: May 1999
Location: Philadelphia, PA USA
Posts: 272
Steering wheel of 1st

Steering wheel of 1st
Attached Thumbnails
Cruise Control stick broke-dsc00226.jpg
__________________
Peter L. House
1998 Sport E430
Azure Blue
110,000k Miles

1987 Oldsmobile Cutlass Salon
V8 Bucket Seats
Factory Moon Roof
Reply With Quote
  #6
Old 04-16-2004, 01:36 PM
Registered User

Join Date: May 1999
Location: Philadelphia, PA USA
Posts: 272
tools needed

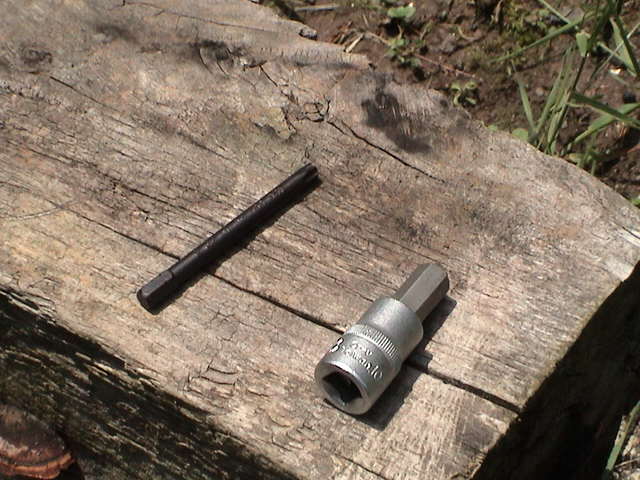

Tools needed
Attached Thumbnails
Cruise Control stick broke-dsc00225.jpg
__________________
Peter L. House
1998 Sport E430
Azure Blue
110,000k Miles

1987 Oldsmobile Cutlass Salon
V8 Bucket Seats
Factory Moon Roof
Reply With Quote
  #7
Old 04-16-2004, 01:37 PM
Registered User

Join Date: May 1999
Location: Philadelphia, PA USA
Posts: 272
close up

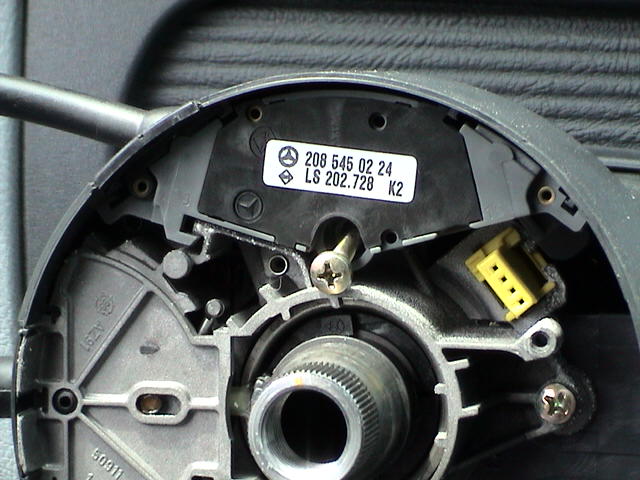

close up
Attached Thumbnails
Cruise Control stick broke-dsc00220.jpg
__________________
Peter L. House
1998 Sport E430
Azure Blue
110,000k Miles

1987 Oldsmobile Cutlass Salon
V8 Bucket Seats
Factory Moon Roof
Reply With Quote
  #8
Old 04-16-2004, 01:38 PM
Registered User

Join Date: May 1999
Location: Philadelphia, PA USA
Posts: 272
More Pix

Careful when taking off the bolt use the steering wheel for the counter force,, DON'T use the steering wheel lock
Attached Thumbnails
Cruise Control stick broke-dsc00222.jpg
__________________
Peter L. House
1998 Sport E430
Azure Blue
110,000k Miles

1987 Oldsmobile Cutlass Salon
V8 Bucket Seats
Factory Moon Roof
Reply With Quote
  #9
Old 04-16-2004, 04:28 PM
Registered User

Join Date: Oct 2002
Location: Houston, TX
Posts: 66
A couple of additional comments...

(i) Be sure your wheels are pointed straight forward before starting, otherwise there's a piece in the steering you can't remove.

(ii) Remove the battery before starting, I believe that if you turn the ignition on with the airbag removed you get an error code that you'll need to get reset by a shop.

(iii) If you don't have the special T30 torx for removing the airbag as shown in one of the earlier pix you can buy a regular T30 screwdriver style wrench from Craftsman, cost $4. It's too long to remove the bolts with the steering wheel pointing straight ahead but you can cut the head off it and use some vise grips.

(iv) Note where the spade connectors go under the airbag, on mine there were other tabs that accept the small spade connector but will short the horn when assembled.

Aside from those points it is very straight forward, you'll also need some loctite for the main bolt that holds the steering wheel on.

Good luck,


Peter
Reply With Quote
  #10
Old 04-17-2004, 02:25 AM
Registered User

Join Date: Apr 2004
Posts: 6
Peter - thanks a lot for the pictures. They are very helpful. Excellent pictures and notes.
Reply With Quote
  #11
Old 04-19-2004, 05:30 AM
Registered User

Join Date: Oct 2003
Posts: 3
thank you pwells. I'm going to try...
Reply With Quote
