Quote:
Originally Posted by Tony H View Post
I don't have the original axle anymore-I sold it several years ago but the 2 axles were identical when side by side-at least from exterior observation. The axle in my coupe now came from a '73 280SEL 4.5.
Tony
Yes ..All tube oiler diff. would be the same exterior..it is only the pinion/ring inside that determine the ratios..and all the ones we see are 3.46 in the Euro 3.5 with the tube casing.
I am hoping to find someone with a tubed case that has actually got a 3:69 ratio stamped into the casing from the factory..that would verify the mystery.
All Benz Literature does not show a 3:69 with that case , but it does show 3:69 ratios in the smaller , non tube case..some 113 chassis actually used that as the stock Euro gearing..but again, smaller, non tube case.

I guess it could have been an option in the larger case, just never seen one and I have done many in my 45 years. I see 3:46 in Euro and 3:27 in US version. [ Your 4.5 is the 3:27]....
And I do not see cooler tube cases in anything except V8 engines chassis. [ which makes sense]
...but that does not mean there are not some out there .......
If anyone has one and it is stamped , That would be good info to know....

__________________
A Dalton

Last edited by Arthur Dalton; 03-11-2008 at 05:53 PM.
Reply With Quote
  #17
Old 03-11-2008, 09:02 PM
sjefke's Avatar
Registered User

Join Date: May 2006
Location: Atlanta, GA
Posts: 591
Arthur, I will take a look again but last time I checked on mine, I could not find ANY numbers stamped in the casing. Where exactly is it supposed to be stamped? Anybody have a picture so I know where exactly I need to look?

Bert
__________________
'70 111 280SE/c 3.5 (4 spd manual) - sold
'63 MGB
'73 MGBGT V8
Reply With Quote
  #18
Old 03-11-2008, 10:26 PM
Registered User

Join Date: Aug 1999
Location: Florida / N.H.
Posts: 8,804
Bert,

I see you have a 3.5 w/manual..if there is a chance of a 3:69 , that would be it. That is great.

If you look at the diff case from the left side, you will see a circle of bolts that hold the left axle tube to the diff case/pumpkin .. Right in front of the two bottom bolts, there will be a machined flat surface on the diff case about 2" long.
If you take a razor or sandpaper to that flat, you wil see the diff. serial # and then the last 3 digits will be the ratio....it will be with a comma, as that is what Euro uses for ratio, instead of the : mark [ in other words ..like 3,69 instead of 3:69 ]
It can easily be seen from under the car, as it is toward the bottom and facing the left/rear wheel.

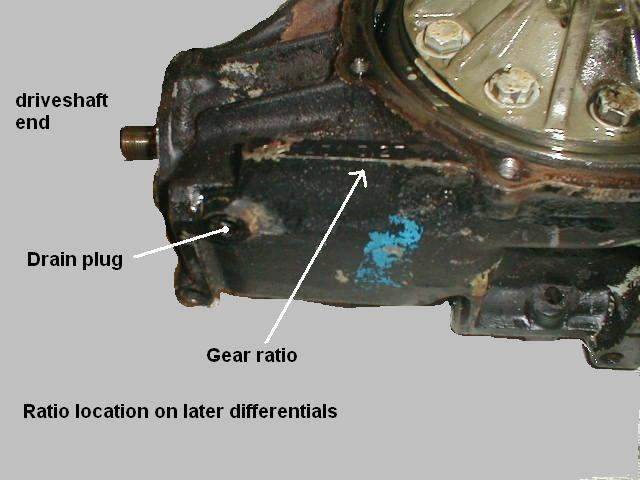

http://www.sl113.org/forums/uploaded/ja17/2007427222029_gear%20ratio%20location%20late.jpg

If you do see it to be a 3:69, the other important detail is does it also have the oil cooler tube from the left axle tube to the case ..that will eliminate the possibility of the rear having ever been changed to the standard 3:69
case w/o tube. That will verify that the 3:69 ratio was in fact available in both cooler and standard differentials.


Many Thanks for your help.
__________________
A Dalton

Last edited by Arthur Dalton; 03-11-2008 at 10:40 PM.
Reply With Quote
  #19
Old 03-12-2008, 08:05 PM
sjefke's Avatar
Registered User

Join Date: May 2006
Location: Atlanta, GA
Posts: 591
OK, I crawled under my car and scraped some ancient teutonic rust coating from my differential case. Yes, it is a 3.69 and it does have a return tube on it.

I attached a picture that I took before I found the ratio. Iignore rusty oily parts Did I mention my car is a daily driver? Seriously, I drive it every day, rain or shine.

Bert
Attached Thumbnails
W108/9 rear axle parts available?-mbdifferential-001_small.jpg
__________________
'70 111 280SE/c 3.5 (4 spd manual) - sold
'63 MGB
'73 MGBGT V8
Reply With Quote
  #20
Old 03-12-2008, 08:20 PM
Registered User

Join Date: Aug 1999
Location: Florida / N.H.
Posts: 8,804
Well Bert ,
You get the Grand Prize for info.
That is a rare find and settles the diff. ratio question , once and for all.
So, we can add that to the list. It's cousin, the 3:46 , is most likely more common to the auto tranny 3.5.

Thanks for crawling under there... now you and the readers of this thread know where their ratios can be found, anyway..
__________________
A Dalton

Last edited by Arthur Dalton; 03-12-2008 at 08:27 PM.
Reply With Quote
  #21
Old 03-12-2008, 08:40 PM
Housecrew's Avatar
Registered User

Join Date: Nov 2007
Location: Minden - Germany
Posts: 50
BTW: I´m still looking for a set of 3,27 gears...
__________________
´64 W111 220seb coupé
´66 W113 230sl pagode
´67 W110 230 6cyl
´69 W111 280sec coupé
´71 W115 250ce coupé
´72 W108 280se 4.5
´73 W108 280se 4.5
´79 W123 300d auto
´80 W123 230ce 4cyl
Reply With Quote
  #22
Old 03-12-2008, 08:43 PM
Registered User

Join Date: Aug 1999
Location: Florida / N.H.
Posts: 8,804
Keeping my eyes and ears open for such..
__________________
A Dalton
Reply With Quote
  #23
Old 03-13-2008, 06:53 PM
Tony H's Avatar
Tony

Join Date: Oct 2005
Location: Bandon, Oregon
Posts: 1,492
111 3.5 rear axle ratio

The specifications from MB in the factory service manual on the 111 3.5 show the rear axle as 3.69 for all cars-cab or coupe-auto or manual.
Tony
