w115 water pump mount etc - Scoop?

What is the scoop with the Water Pump and cooling pipe mounting. I have changed plenty of water pumps, but never on a MB w115. Tell me about the large, threaded sleeves with a bolt that appears to run through? Not sure what I am looking at, or how they work. I believe I have a leak from behind the water distribution housing, and I would like to have better access to cleaning up the pipe ends that the hose attaches to. Will replace the pump and gaskets.

Anything I should know about the process of removing the pump and the part behind the pump?
Attached Thumbnails
w115 water pump mount etc - Scoop?-imag0081.jpg
__________________
1969
Model 220 gasoline
Chassis: W115.010
Reply With Quote
  #2
Old 05-13-2013, 02:28 PM
Registered User

Join Date: Apr 2012
Location: San Luis Obispo, CA
Posts: 1,536
Same as more recent diesels

Topher-
It is the same as more recent diesels, I believe. So you should poke around on the diesel forum a bit.

Attached is the page from the EPC for my w115 220d. I bet yours is similar. Behind the water pump is the water pump housing, which I believe attaches to the block. Separating them from each other can be a pain, depending on what type of gasket or adhesive the previous mechanic used.

I was trying to remove a water pump from a w115 240D in the salvage yard last week, but I simply couldn't get them apart with the tools that I had with me.
Attached Thumbnails
w115 water pump mount etc - Scoop?-waterpump2.jpg
__________________
1968 220D, W115, /8, OM615, Automatic transmission.
1987 300TD, W124, OM603, Automatic transmission.
Reply With Quote
  #3
Old 05-13-2013, 04:58 PM
Registered User

Join Date: Nov 2012
Location: SF Bay Area
Posts: 154
Quote:
Originally Posted by Topher39 View Post
What is the scoop with the Water Pump and cooling pipe mounting. I have changed plenty of water pumps, but never on a MB w115. Tell me about the large, threaded sleeves with a bolt that appears to run through? Not sure what I am looking at, or how they work. I believe I have a leak from behind the water distribution housing, and I would like to have better access to cleaning up the pipe ends that the hose attaches to. Will replace the pump and gaskets.

Anything I should know about the process of removing the pump and the part behind the pump?

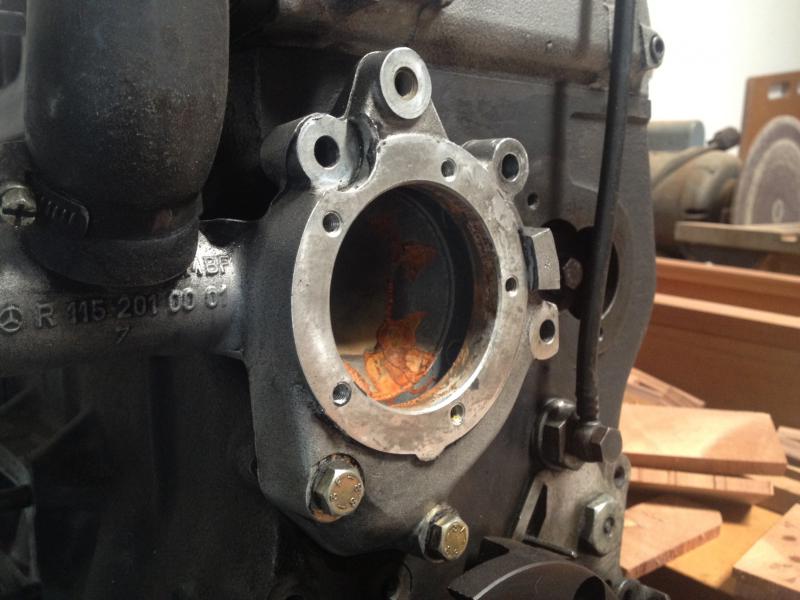

I'm not sure what to make of those mangled studs but here is an image of the pump housing with pump removed.
Attached Thumbnails
w115 water pump mount etc - Scoop?-photo.jpg
Reply With Quote
  #4
Old 05-13-2013, 06:22 PM
Registered User

Join Date: Sep 2011
Posts: 238
I'm thinking that the threaded posts or standoffsthat the water pump bolts go through must be for mounting something? I have a gas motor, perhaps the water pump housing was pulled off another car.
__________________
1969
Model 220 gasoline
Chassis: W115.010
Reply With Quote
  #5
Old 05-13-2013, 08:13 PM
Registered User

Join Date: Apr 2012
Location: San Luis Obispo, CA
Posts: 1,536
Looking at your photo and Coastal's suggests to me that the bolts holding the bottom of the housing have loosened on yours. He has two bolts at the bottom of the housing which appear tightened down. Your photo looks like it has the same bolts, but they are backed way out. Maybe I am totally misreading the pictures, but this is what I see. Perhaps that is where your leak is coming from.
__________________
1968 220D, W115, /8, OM615, Automatic transmission.
1987 300TD, W124, OM603, Automatic transmission.
Reply With Quote
  #6
Old 05-13-2013, 09:50 PM
Registered User

Join Date: Sep 2011
Posts: 238
No, these are some sort of threaded inserts or standoffs - there are smaller bolts that are within those inserts that seem to hold the entire assembly tight against the block. I will have to get into it over the weekend and take it apart to see what I am working with. Thanks for your input - I have just never seen anything like this before.

any other feedback is welcome and encouraged.
__________________
1969
Model 220 gasoline
Chassis: W115.010
Reply With Quote
  #7
Old 05-13-2013, 10:24 PM
Registered User

Join Date: Sep 2011
Posts: 238
Update - Shorts, a beautiful evening in AZ, the car is cool enough to work on it a tad. You are partially right, the two lower bolts that hold the water pump housing to the block were loose! one, I could turn with my fingers! What I also found is that the threaded sleeves are being used as spacers/stand offs - why I have no idea. They don't thread into the housing at all, they are allowing really long bolts to hold the housing against the block - strange. I tightend the bolts up, will have to see if that stops the leak. I will plan to remove those spacers and use new bolts when time allows, and check the condition of the waterpump.

Thanks Shortsguy for suggesting tightening them - would be nice if I had something simple for a change.

Chris
__________________
1969
Model 220 gasoline
Chassis: W115.010
Reply With Quote
  #8
Old 05-14-2013, 12:19 AM
Registered User

Join Date: Apr 2012
Location: San Luis Obispo, CA
Posts: 1,536
Glad I could help. I am always reading yours and Coastal's threads, but I know so little about the cars that I can rarely contribute.

So I have been thinking more about why someone would do what you found. I have two theories.
1) They simply didn't have access to bolts of the correct length, so they used the standoffs to maintain pressure with incorrectly sized bolts.
2) The lower pin of the timing chain tensioner rail is down there somewhere. And to pull that pin, you have to create some sort of puller. I wonder if those standoffs were used as part of this puller. See post 31 of this thread:
9 degrees of chain stretch

I am having trouble matching everything up between your photos and the photos in that chain stretch thread, but it was just an idea I wanted to mention.
__________________
1968 220D, W115, /8, OM615, Automatic transmission.
1987 300TD, W124, OM603, Automatic transmission.
