  #1
Old 05-06-2018, 06:23 PM
Registered User

Join Date: Oct 2015
Posts: 134
w114 acc vacuum diagram

I'm looking for a vacuum diagram for acc in 114 280c trying to troubleshoot defroster vacuum system thank you
Reply With Quote
  #2
Old 05-07-2018, 07:15 AM
Registered User

Join Date: Jun 2010
Location: Miami Beach, Florida
Posts: 466
Quote:
Originally Posted by huffandpuff View Post
I'm looking for a vacuum diagram for acc in 114 280c trying to troubleshoot defroster vacuum system thank you
I don't know if this will help but here it goes....
Attached Thumbnails

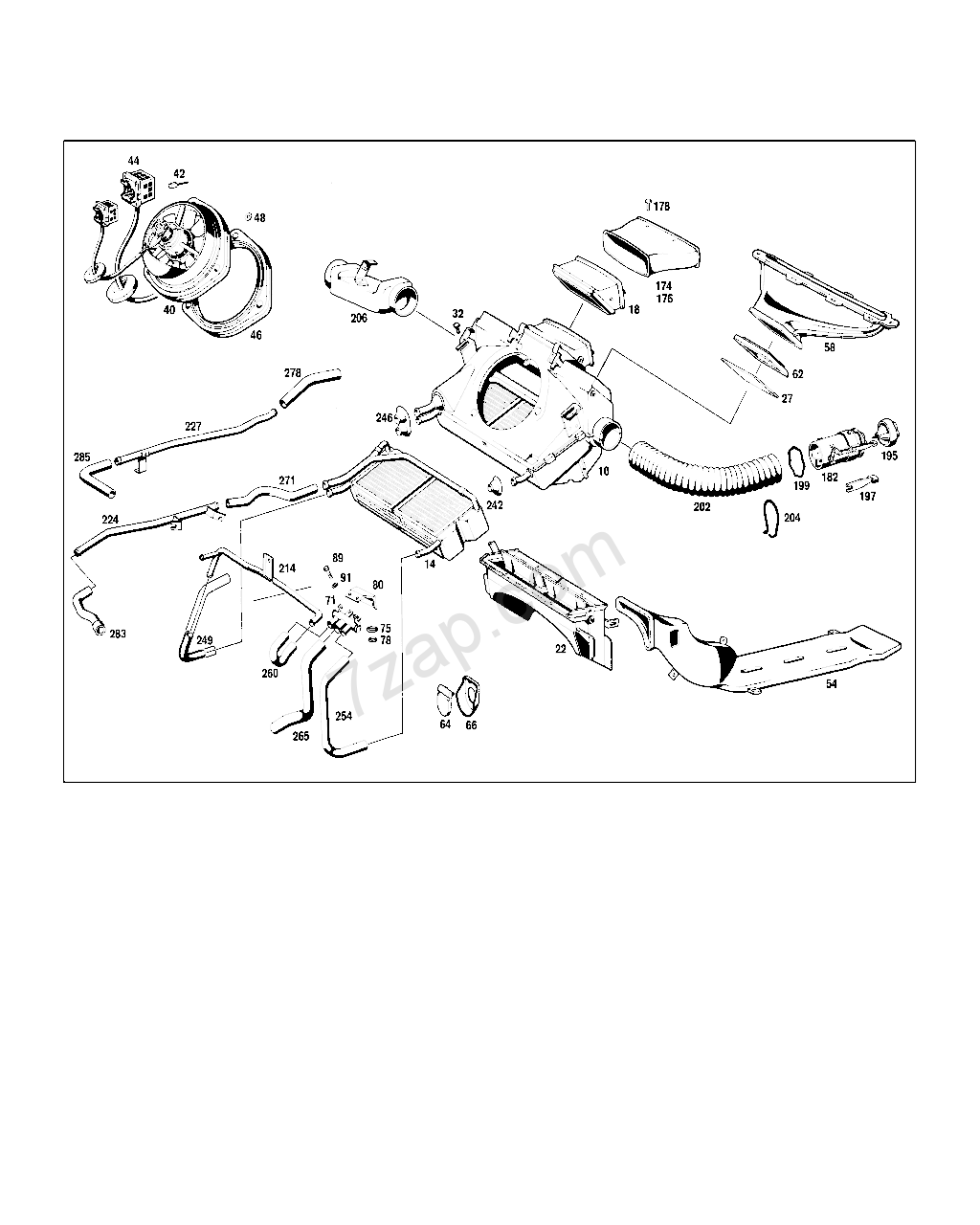

w114  acc vacuum diagram-hvac.png   w114  acc vacuum diagram-hvac2.png
__________________

1976 280C
SLOWER DRIVERS KEEP TO THE RIGHT.
DRIVE RIGHT PASS LEFT
Reply With Quote
  #3
Old 05-07-2018, 09:25 AM
Registered User

Join Date: Oct 2015
Posts: 134
acc vac diagram

Quote:
Originally Posted by Tomas7 View Post
I don't know if this will help but here it goes....
thank you
Reply With Quote
  #4
Old 05-07-2018, 09:35 AM
Registered User

Join Date: Oct 2015
Posts: 134
thank you for the diagrams problem I'm having is the rod on the changeover switch and vacuum element needs to be pushed up towards the vacuum change over flap then defroster will operate when pushup on little button on micro switch it does stop blowing is this a sign vacuum changeover flap should be replaced?? theres another one on pass side maybe better to replace both ?
Reply With Quote
  #5
Old 05-08-2018, 11:31 AM
Registered User

Join Date: Jun 2010
Location: Miami Beach, Florida
Posts: 466
Quote:
Originally Posted by huffandpuff View Post
I'm looking for a vacuum diagram for acc in 114 280c trying to troubleshoot defroster vacuum system thank you

Hey check this out. Will this help? This is from a 107.

PeachPartsWiki: Center Vent/Defroster Relationship
__________________

1976 280C
SLOWER DRIVERS KEEP TO THE RIGHT.
DRIVE RIGHT PASS LEFT
Reply With Quote
  #6
Old 05-08-2018, 06:20 PM
Registered User

Join Date: Oct 2015
Posts: 134
107 vacuum diagram

thank you Thomas should be simuliar to 280c would think its basic going to blow smoke in main lines tommoerow then start the girl up should be fast way to detect leaks think the defroster element bad because I push up on rod that connects micro sw and element up and the blower works when running it doesn't blow like it should all speeds do work so don't think its the resister sounds like vacuum thank you for diagram when fig this problem out ill post for future refrence
Reply With Quote
