need diagram of rubber hoses on switchover valve

1983 300SD.

The vacuum hoses on this car were all mixed up and no vacuum was getting to the modulator. Shifts were very hard.

per shop manual diagrams and engine sticker I've hooked up the hoses correctly. I've also tested each component and adjusted the linkage per spec. problem now is that vacuum always remains at the modulator (22" Hg) even when the switchover valves are rotated (should go down to close to 0 at full throttle). I have the three vacuum pipes (EGR, source and vent) going to the switchover connector (#1, 2 and 3) per factory but I can not find a diagram that shows routing of the little rubber hoses on the switchover valve itself. Can someone show/tell me this info? Some were disconnected and i suspect some are not connected to the correct port.

Thanks

__________________
1972 450SL
1982 300D Turbo
Reply With Quote
  #2
Old 11-28-2004, 06:27 AM
Brandon314159
Guest

Posts: n/a
Not sure if this is the same on your car or not but here is a picture (one I had...not take specifically for..sorry) of the vac lines you speak of?
I think mine is older and thus has less parts?
Maybe it will be useful...



(this is from when my oil cooler line decided to commit suicide...)
Reply With Quote
  #3
Old 11-29-2004, 01:28 AM
Registered User

Join Date: Mar 2003
Location: Los Angeles, CA
Posts: 445
Thanks for the photo.

The switchover valves (white plastic/nylon with two sliding fingers) are under the large black plastic dust cap which you can see on the valve cover in your picture. You can see three hoses going to a connector on the valve cover. Just behind this connector (but hidden by the black cap) are the switchover valves. The little black rubber molded hoses I'm asking about are attached to the two sides of the switchover valves. Mine are all mixed up; can anyone help me with the correct hook up for these hoses?
__________________
1972 450SL
1982 300D Turbo
Reply With Quote
  #4
Old 11-29-2004, 04:06 AM
Brandon314159
Guest

Posts: n/a
If you tell me how the cover comes off I will let you know
Reply With Quote
  #5
Old 11-29-2004, 05:28 AM
Registered User

Join Date: Mar 2003
Location: Los Angeles, CA
Posts: 445
Brandon,

The black plastic cover is held on with one screw. If you remove the screw and slide the cover forward to disengage the tab in front the cover lifts off.

Thanks
__________________
1972 450SL
1982 300D Turbo
Reply With Quote
  #6
Old 11-29-2004, 05:33 AM
Registered User

Join Date: Mar 2003
Location: Los Angeles, CA
Posts: 445

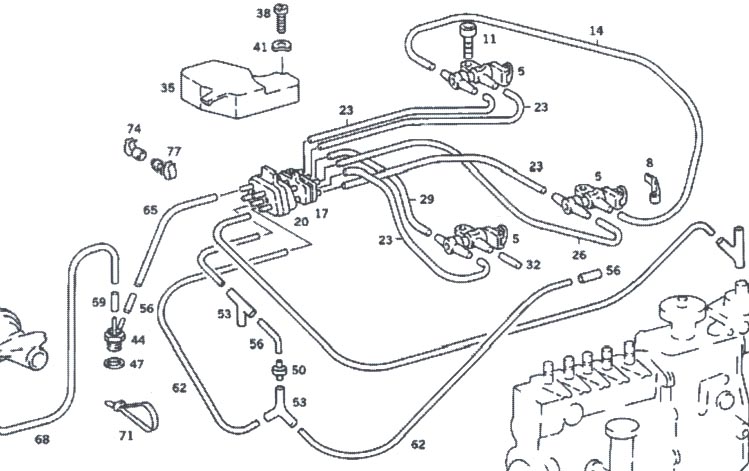

I found the sort of diagram I need but it's not very clear from this picture which nozzles each hose goes to.
Attached Thumbnails
need diagram of rubber hoses on switchover valve-switchover-valve.jpg
__________________
1972 450SL
1982 300D Turbo

Last edited by erubin; 11-29-2004 at 05:39 AM.
Reply With Quote
  #7
Old 11-29-2004, 09:32 PM
phantoms's Avatar
Senior Member

Join Date: May 2004
Location: Savannah, GA
Posts: 794
http://www.peachparts.com/shopforum/showthread.php?t=105297
__________________
85 300CD
83 300TD
78 240D (daughter)
Reply With Quote
  #8
Old 11-29-2004, 10:02 PM
Registered User

Join Date: Mar 2003
Location: Los Angeles, CA
Posts: 445
Thanks Phantams,

Take a look at the drawing: "82 300D Fuel & EGR vacuum diagram (other 300 series similar)" in your post. http://www.peachparts.com/shopforum/showthread.php?t=105297

Item 64a & 64b show the switchover valves I've been refering to. Attached to it you can see 5 little hoses. I'm not sure that I can make out where each one is connected.

I just got two microswitches fingers today so I will install them and take my best shot positioning those little rubber hoses on my 83 300SD.
__________________
1972 450SL
1982 300D Turbo

Last edited by erubin; 11-29-2004 at 10:10 PM.
Reply With Quote
  #9
Old 11-29-2004, 11:07 PM
phantoms's Avatar
Senior Member

Join Date: May 2004
Location: Savannah, GA
Posts: 794
Try the skinnerbox site. Load the PDF file at http://skinnerbox.steaky.org/Service/W123/w123CD2/Program/Engine/617/14-050.pdf (require acrobat reader) and start on page 3 (warning, the pages take forever to load). Everything you need is there with a breakdown of what port goes where.

__________________
85 300CD
83 300TD
