#1
01-23-2006, 08:03 PM
|
|||
|
|||
|
What is this?

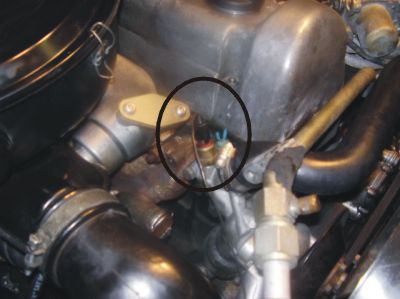

Can someone please name this part? What does it do?
Thank you!
|
|
#2
01-23-2006, 08:18 PM
|
|||
|
|||
|
i'm not 100% sure, but i'd say its something to do with the egr, as in egr valve, if its 81 or newer (i believe) someone else want to chime in with the right answer??
__________________
1982 300D (w123, "Grey Car") 1982 300D (w123, "Blue Car") 2001 Ford F150 "Clifford" (The Big Red Truck) 1997 Dodge Ram 2500 12V Cummins 1996 Dodge Ram 2500 12V Cummins Previous Vehicles: 1995 E300D, 1980 300SD, 1992 Buick Century, 2005 Saturn Ion
|
|
#3
01-23-2006, 08:19 PM
|
||||
|
||||
|
it looks like its attached to the thermostate housing..
what egr assembly
|
|
#4
01-23-2006, 08:19 PM
|
||||
|
||||
|
Coolant temp sensor??
Can't really see it too good.
__________________
1984 300SD Turbo Diesel 150,000 miles OBK member #23 (\__/) (='.'=) This is Bunny. Copy and paste bunny into your (")_(") signature to help him gain world domination
|
|
#5
01-23-2006, 08:20 PM
|
||||
|
||||
|
It is a temperature triggered vacuum valve. When the coolant gets to a certain temp, it closes the EGR by cutting vac to it, I'm pretty sure thats what it does. *mine doesn't*
 As I disconnected and sealed all vac lines to the egr.
__________________
-diesel is not just a fuel, its a way of life-  '15 GLK250 Bluetec 118k - mine - (OC-123,800) '17 Metris(VITO!) - 37k - wifes (OC-41k) '09 Sprinter 3500 Winnebago View - 62k (OC - 67k) '13 ML350 Bluetec - 95k - dad's (OC-98k) '01 SL500 - 103k(km) - dad's (OC-110,000km) '16 E400 4matic Sedan - 148k - Brothers (OC-155k)
|
|
#6
01-23-2006, 08:20 PM
|
||||
|
||||
|
look how fast we solved that one... neat we have no lives
|
|
#7
01-23-2006, 08:24 PM
|
|||
|
|||
|
Quote:
BTW: 17min total time for problem to be solved... thats gotta be a new record or something!!
__________________
1982 300D (w123, "Grey Car") 1982 300D (w123, "Blue Car") 2001 Ford F150 "Clifford" (The Big Red Truck) 1997 Dodge Ram 2500 12V Cummins 1996 Dodge Ram 2500 12V Cummins Previous Vehicles: 1995 E300D, 1980 300SD, 1992 Buick Century, 2005 Saturn Ion
|
|
#8
01-23-2006, 08:24 PM
|
||||
|
||||
|
Quote:
I'm actually in class at school right now, a computer class.
__________________
-diesel is not just a fuel, its a way of life- '15 GLK250 Bluetec 118k - mine - (OC-123,800) '17 Metris(VITO!) - 37k - wifes (OC-41k) '09 Sprinter 3500 Winnebago View - 62k (OC - 67k) '13 ML350 Bluetec - 95k - dad's (OC-98k) '01 SL500 - 103k(km) - dad's (OC-110,000km) '16 E400 4matic Sedan - 148k - Brothers (OC-155k)
|
|
#9
01-23-2006, 08:53 PM
|
||||
|
||||
|
Actually the one with the black electrical wire attached, is the temperature sensor for the engine temp guage.
The unit next to it that has the 2 blue tubes sticking out of it is the EGR temperature switch. Dave
__________________
1970 220D, owned 1980-1990 1980 240D, owned 1990-1992 1982 300TD, owned 1992-1993 1986 300SDL, owned 1993-2004 1999 E300, owned 1999-2003 1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD 1988 560SL, 100,000mi, owned since 1995 1965 Mustang Fastback Mileage Unknown(My sons) 1983 240D, 176,000mi (My daughers) owned since 2004 2007 Honda Accord EX-L I4 auto, the new daily driver 1985 300D 264,000mi Son's new daily driver.(sold) 2008 Hyundai Tiberon. Daughters new car
|
|
#10
01-23-2006, 09:23 PM
|
|||
|
|||
|
Quote:
This is the interlock temp sensor for the CCU (climate control unit). If it fails, your heat will not come on unless you use the highest most settings first then back down to what you want. It is supposed to sense when the engine is warm and thus flip on the heat. Trust me...I know what it is...I've used it to control my glow plug circuitry to do special stuff...  BTW the engine temperature sensor for the GAUGE is in the side of the head...near the glowplugs.
|
|
#11
02-05-2006, 11:30 AM
|
|||
|
|||
|
The interlock temp sensor, does it have an "official" mb name so I can order the correct part? My heat behaves exactly like this, max it out and it'll come on, then more or less regulate itself after that.
Thank much.
__________________
1985 300D 197K - Semi-Daily Driver Diesel 1998 Volvo V70 AWD 226K - Daily Driver 2 1998 Volvo S70 140K - Wife's DD 2003 GMC Sonoma ZR2 Option - Rusty Truck THE BABY 1958 220S Sedan 66K All original, never restored and never will be.
|
|
#12
02-05-2006, 02:47 PM
|
|||
|
|||
|
Does impact the climate control
When doing my last valve adjustment, I found the wire was brittle and broke at the sensor end. I reinforced the wire with heat shrink wrap and resoildered (sp?) the sensor end and my last niggling Climate Control issue was fixed!
For some reason - it talks to the climate control - that's all I can tell you.
__________________
~shell As of 2/2010: 2001 CLK55 0o\=*=/o0 13.6 @ 106mph 10K mi 1984 300SD 260K mi and going and going... 97 S600 46K miles 1991 Sentra SE-R (extremely dorked with) www.se-r.net
|
|
#13
02-28-2006, 11:53 PM
|
|||
|
|||
|
green thing next to it
hey does anyone know what the green thing is next to the temp sensor? it looks like vaccum lines should connect to it. what does it do, if you do or dont have it connected. i know one the tubes is busted on mine and nothing is connected to it
|
|
#14
02-28-2006, 11:54 PM
|
|||
|
|||
|
Quote:
|
 |
