#1
|
||||
|
||||
PRNDSL safty switch?
anyone know how to disable the swithch that prevents the car from starting in R,D,S,L? right now mine is also preventing me from starting in P & N!
I had to leave my car in a parking lot for the night and go back tomorrow and see it it'll start the car is a 1982 300TD |
#2
|
||||
|
||||
have you tried holding the shifter all the way forward? I don't know an easy way to disable it, but you can bypass it, put the car in park, set the emergency brake, turn on the key to the glow position, and open the hood.
find the junction block on the passenger's side fender, and short the white and the red wires with a screwdriver or a set of car keys. she will start right up. John
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread "as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do! My drivers: 1987 190D 2.5Turbo 1987 190D 2.5Turbo 1987 190D 2.5-5SPEED!!! 1987 300TD 1987 300TD 1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere! |
#3
|
|||
|
|||
Quote:
I realize that the proper response would be to look at the neutral safety switch, but that takes time and if this is a daily driver, then..... I have done this before on a 80 300D. It was a daily driver and I shorted the switch out until I had time to fix it. Just for fun I put it in drive and started it, no problem. I'll try and locate the area where the violet and violet/white wires are on another diagram. |
#4
|
|||
|
|||

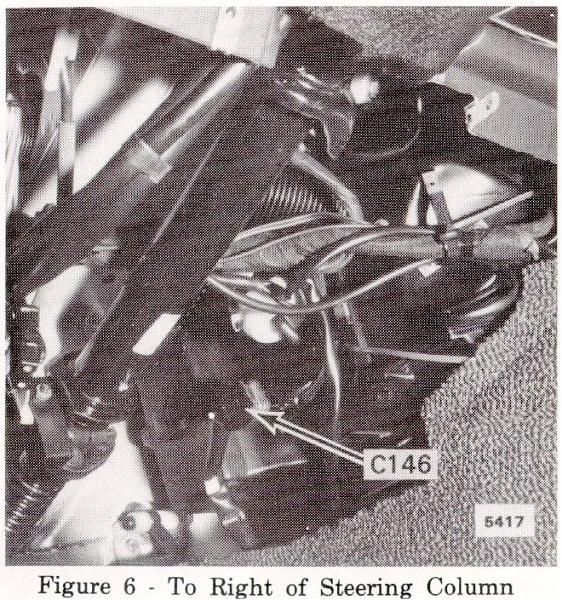

Here's the location for C-146, to the right of the steering column near the floor.
|
#5
|
|||
|
|||
Here's C-105. Hope this helps
|
#6
|
|||
|
|||
Try holding the key in the start position, while rocking the shifter around N.
|
#7
|
||||
|
||||
Take a few inches of wire and jump the junction box on the passenger side wheel well, just forward of the battery. This junction box is pretty small, about an inch by three inches and probably has a black cover on it. You'll see two larger connections on the right and one smaller on the left, if memory serves. Put the car in park, turn the key to the on position as usualy, then instead of turning it to the start position, get out and touch the wire from the smaller screw connection to either of the bigger connections. This bypasses both the key and the neutral safety switch.
__________________
Seth 1984 300D 225K 1985 300D Donor body 1985 300D Turbo 165K. Totaled. Donor Engine. It runs!!! 1980 300SD 311K My New Baby. 1979 BMW 633csi 62K+++? Dead odo |
