catasrophic IP failure

Hey, I just pulled the IP off a project 300 SDL I got and the pump has grenaded- any one ever seen this? Cause? Should I stop where I am as I figure the metallic shards are well circulated through out the engine? Thanks Click image for larger version

Name:	brokenpump 001.jpg
Views:	145
Size:	43.6 KB
ID:	60301

Click image for larger version

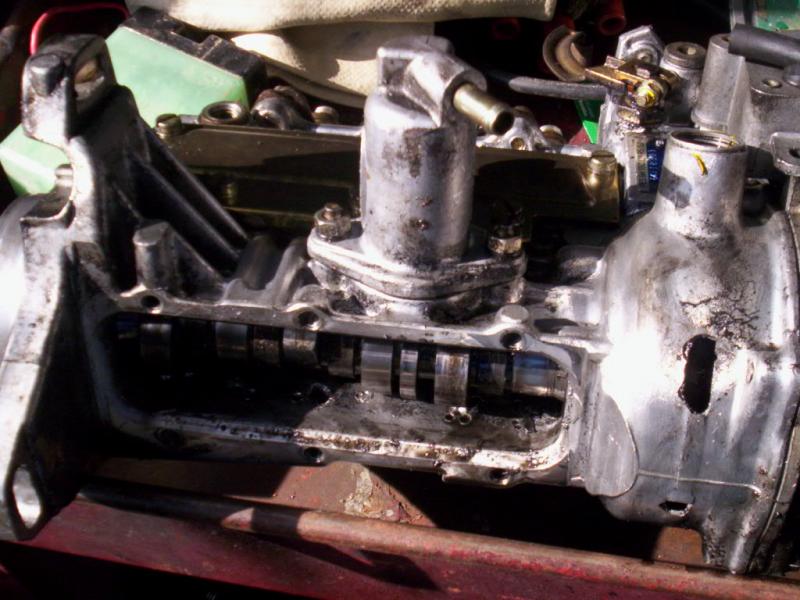

Name:	brokenpump 002.jpg
Views:	150
Size:	71.4 KB
ID:	60302

Click image for larger version

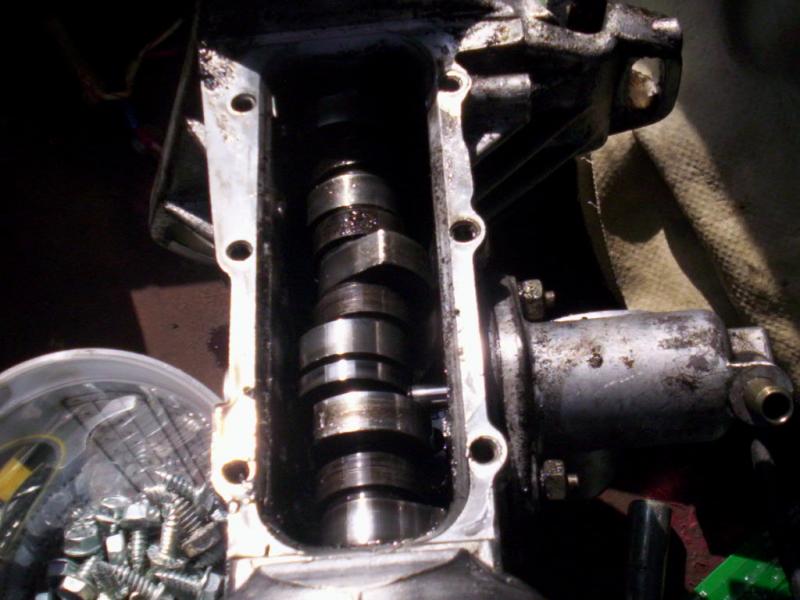

Name:	brokenpump 003.jpg
Views:	136
Size:	56.5 KB
ID:	60303


Last edited by benz219; 10-24-2008 at 01:13 PM. Reason: mispell
Reply With Quote
  #2
Old 10-24-2008, 01:47 PM
Registered User

Join Date: Feb 2004
Location: Walnut Creek, CA & 1,150 miles S of Key West
Posts: 4,874
Post on the diesel forum for better replies.

You're def going to want to drain everything before finding a donor IP and firing it back up.

Have you taken the back of the pump off to see whats left inside?
__________________
Terry Allison
N. Calif. & Boca Chica, Panama

09' E320 Bluetec 77k (USA)
09' Hyundai Santa Fe Diesel 48k (S.A.)
Reply With Quote
  #3
Old 10-24-2008, 02:09 PM
Registered User

Join Date: Feb 2004
Location: Walnut Creek, CA & 1,150 miles S of Key West
Posts: 4,874
No worries, one of the Mods will move it over there sometime today.
__________________
Terry Allison
N. Calif. & Boca Chica, Panama

09' E320 Bluetec 77k (USA)
09' Hyundai Santa Fe Diesel 48k (S.A.)
Reply With Quote
  #4
Old 10-24-2008, 02:09 PM
Registered User

Join Date: Oct 2008
Location: Lovely Albany,NY
Posts: 5
Cool Grenaded IP

I guess I posted in the wrong spot so-- I acquired a 300 sdl- that was running _BADLY I had an IP from another 603 that I know was good so I started there. When I pulled the IP there was evidence of massive internal failure. Anyone seen this before? Causes? Is there so much metal circulated throughout this engine I should stop and cut my losses? What would be the best way to flush the oil system? Thanks folks
Attached Thumbnails

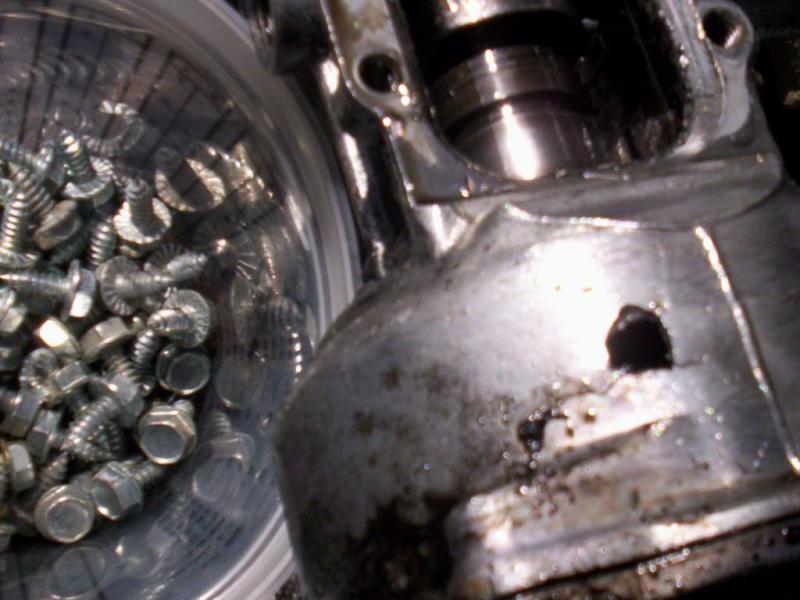

catasrophic IP failure-brokenpump-005.jpg   catasrophic IP failure-brokenpump-004.jpg
Reply With Quote
  #5
Old 10-24-2008, 05:44 PM
babymog's Avatar
Loose Cannon - No Balls

Join Date: Jan 2006
Location: Northeast Indiana
Posts: 10,765
I believe that the oil from there returns to the cranckase, has to go through the pickup screen (metal doesn't float well), then pump and filter.

Probably needs a good cleaning of the sump.
__________________

Gone to the dark side

- Jeff
Reply With Quote
  #6
Old 10-24-2008, 06:44 PM
pawoSD's Avatar
Dieselsüchtiger

Join Date: Oct 2004
Location: Grand Rapids, MI
Posts: 15,438
Yep its unlikely anything made it into the engine. Besides the sump/pump strainer....it then goes straight to the oil filter before going through the engine.
__________________
-diesel is not just a fuel, its a way of life-
'15 GLK250 Bluetec 118k - mine - (OC-123,800)
'17 Metris(VITO!) - 37k - wifes (OC-41k)
'09 Sprinter 3500 Winnebago View - 62k (OC - 67k)
'13 ML350 Bluetec - 95k - dad's (OC-98k)
'01 SL500 - 103k(km) - dad's (OC-110,000km)
'16 E400 4matic Sedan - 148k - Brothers (OC-155k)
Reply With Quote
  #7
Old 10-24-2008, 07:30 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 50,968
Back in the late 70s I worked in a Fuel Injection shop and ounce in a while a bearing goes bad or something in the IP Governor comes loose and causes similar problems. Most often it is the bearing that goes first.
Some times the Rollers on the IP Camfollower/Tappets go bad too.

I have even seen a case on a 6cyl Maxadine Mack Diesel Truck where the Camshaft in the IP had sheared in 2 parts but the Jagged break area allowed the Camshaft to turn (but part was out of time). The intermediate bearing (in the middle) kept the IP Camshaft in alignment and the were able to drive the truck to our shop.

__________________
84 300D, 82 Volvo 244Gl Diesel
