Window Motor - wire numbering

This is a quick question - I am working on a busted rear power window, and unfortunately when I popped the plug off all the wires came out before I could mark where they all went.

Most of the wires are numbered, but the green and black from the motor are unlabelled -- does anyone know where these two go?

Many thanks!

Edit - this is a 1985 300SD...


Last edited by haighworld; 07-26-2009 at 04:19 PM.
Reply With Quote
  #2
Old 07-26-2009, 10:00 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 51,042
It might be easier just to pop out the opposite side switch and take a look to see whare the wires go.

Also is it the switch that is actually on the rear door or is it the switch that is on the consel?
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #3
Old 07-26-2009, 10:31 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 51,042
Quote:
Originally Posted by haighworld View Post
This is a quick question - I am working on a busted rear power window, and unfortunately when I popped the plug off all the wires came out before I could mark where they all went.

Most of the wires are numbered, but the green and black from the motor are unlabelled -- does anyone know where these two go?

Many thanks!

Edit - this is a 1985 300SD...
For an 85 300D.
LH Rear #6 is blue (BU)
RH Rear #6 Blue (BU) and #4 is Brown (BR)
Attached Thumbnails

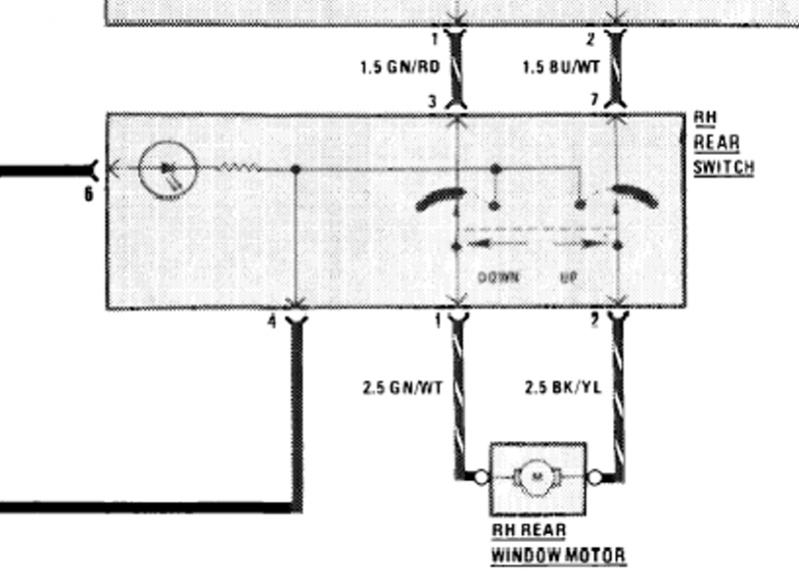

Window Motor - wire numbering-lh-rear.jpg   Window Motor - wire numbering-rh-rear.jpg
