Split driveshaft without marking, what now?
I could tell a long story here but it's irrelevant so I'll keep it short; the driveshaft on my '87 300SDL was removed from the vehicle and separated without being marked.
Now I need to put it back in. I figure trial and error is my only option but that is going to really really suck. Get the back end on jack stands, get the wheels moving and just keep trying different orientations until it stops vibrating? Any ideas?
__________________
1987 300SDL 167k 1992 Volvo 740 140k 1990 Volvo 740 250k 1989 Volvo 240 269k Anyone want to trade an old Volvo for an '87 300sdl? |
#2
|
||||
|
||||
are there any rubber bits, or paint lines, dirt lines etc that could be used to line it up? sometimes there are very faint dots on the joints for alignment... good luck!
|
#3
|
||||
|
||||
The exact relocation, though very important, is not a deal breaker. Just put it back as best you can & see how it goes. Its only a small % of cars that will suffer bad vibration when its not put back the same.
__________________
Grumpy Old Diesel Owners Club group I no longer question authority, I annoy authority. More effect, less effort.... 1967 230-6 auto parts car. rust bucket. 1980 300D now parts car 800k miles 1984 300D 500k miles 1987 250td 160k miles English import 2001 jeep turbo diesel 130k miles 1998 jeep tdi ~ followed me home. Needs a turbo. 1968 Ford F750 truck. 6-354 diesel conversion. Other toys ~J.D.,Cat & GM ~ mainly earth moving |
#4
|
|||
|
|||
I didn't inspect it real close so I'll go back over it and see what I can find.
I didn't realize that only a small percentage of vehicles have a severe issue with this. From what I'd read previously I thought I would pretty much shake myself to pieces without the proper alignment. Thanks for the help!
__________________
1987 300SDL 167k 1992 Volvo 740 140k 1990 Volvo 740 250k 1989 Volvo 240 269k Anyone want to trade an old Volvo for an '87 300sdl? |
#5
|
|||
|
|||
I don't know if your car has them, but my 1990 300SE has an arrow embossed in each side of the driveshaft to help with that center alignment.
|
#6
|
|||
|
|||
I believe yours should have the same markings as mine. One section will have a single "-" marking and the other will have a "=" marking. Aligned it will appear as " - = ".
__________________
Sam 84 300SD 350K+ miles ( Blue Belle ) |
#7
|
|||
|
|||
Thanks Sam, I'll see if I can find that, is it right on the spline? At the base of the spline? Maybe I'm looking in the wrong area.
The FSM states that it should be marked if it is to be separated so I may not have any marking on mine.
__________________
1987 300SDL 167k 1992 Volvo 740 140k 1990 Volvo 740 250k 1989 Volvo 240 269k Anyone want to trade an old Volvo for an '87 300sdl? |
#8
|
||||
|
||||
I split my 240's driveshaft without marking it, and put it back together. That was nearly 60k miles ago and no vibrations or issues as of yet. So I'd just put the two halves back together and not worry about it too much.
__________________
Andrew '04 Jetta TDI Wagon '82 300TD ~ Winnie ~ Sold '77 300D ~ Sold
|
#9
|
|||
|
|||

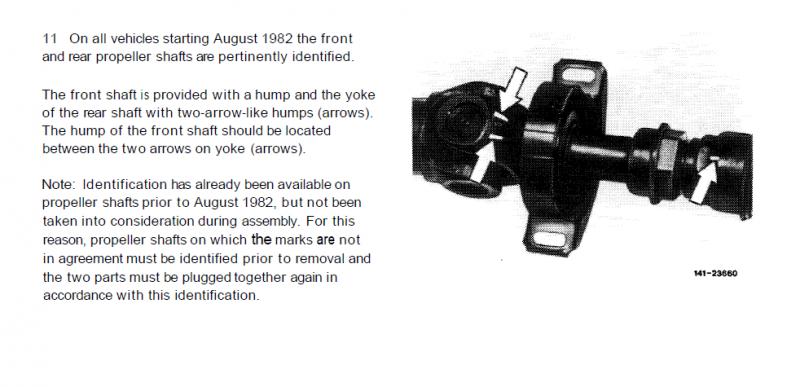

Not sure if this is the case for your vehicle, but w123s after July 1982 indicate a range of proper alignment by way of stamps on the two halves of the driveshaft. See attached illustration from the FSM, §41-050.
__________________
'Betsy the Getaway Car' : 1978 MB 240D, 582k 'The Mistress of the Sea' : 2001 Giant Boulder, 10.30k |
#10
|
|||
|
|||
Thanks for the tip, I didn't think to look that far from the split for a mark.
__________________
1987 300SDL 167k 1992 Volvo 740 140k 1990 Volvo 740 250k 1989 Volvo 240 269k Anyone want to trade an old Volvo for an '87 300sdl? |
#11
|
||||
|
||||
Just a suggestion if you decide to just put 'em back together is, if there are vibe issues, you could but a big ass hose clamp on the shaft and move the weight around until it feels good.
__________________
1983 240D 3.0T 4-speed manual, now sold 1989 Subaru GL Wagon 5-speed Touring Edition |
#12
|
|||
|
|||
Quote:
(Another hint for making this job go smoothly: Leave the front flex-disc bolts a little loose (tighten then back off). Lower the vehicle and move it backwards and forwards a few feet. Then raise and retorque the flex disc bolts. Mine didn't seem to seat well at first and caused a vibration. It may not be necessary for yours but this helped for mine.)
__________________
Sam 84 300SD 350K+ miles ( Blue Belle ) |
#13
|
|||
|
|||
Thanks for all of the help guys.
It was just like you said; raised bumps on the u-joint and one just forward of the spline on the front shaft. That was NOT as easy as I was expecting but it all went together as it should.
