OM617 timing device - pictures of it in bits (there was no problem after all)
G'day All,

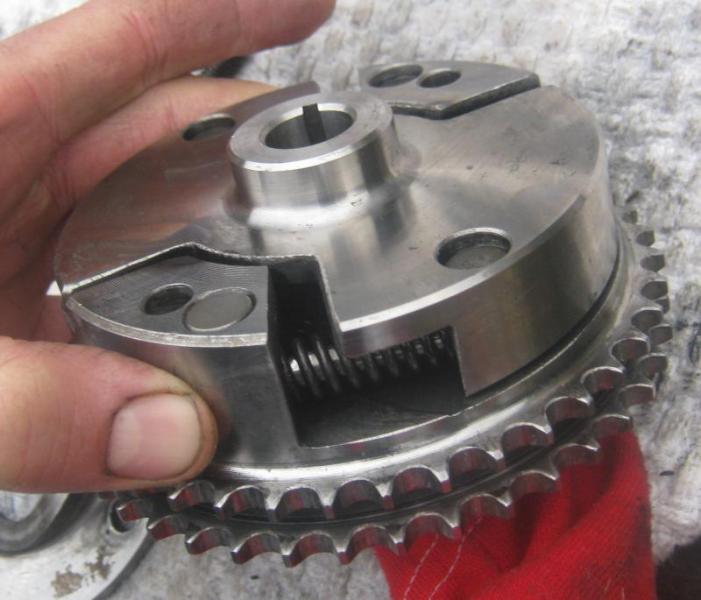

I'm in the middle of an engine rebuild and I was just about to fit the timing device when I gave it a wipe and I heard it rattle. It was a really lightweight - like a ball bearing loose inside it kind of rattle. So I did what any other automotive-suicidal-like DIY mechanic would do and I started to take it apart! This is all very well - but after a wipe I noticed some bluing:- So my questions are:- Is bluing "normal" or common? Do these timing devices rattle? Should I really take it to bits to find the rattle? (I'm inclined to do so but I'm not too confident I can get it back together again - these parts aren't cheap!) What do you think? {Couldn't find a thread of this in bits... despite google => timing device site:peachparts.com}
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits! Last edited by Stretch; 01-22-2011 at 09:09 AM. Reason: Changed the title - I thought there was a problem - there wasn't |
#2
|
||||
|
||||
Patience is a virtue...
...that apparently I don't have!
I took it to bits - it is easy to get it back together again. I kept track of the way round everything came apart - I made sure that everything went back in the same place. I guess this is a good thing for rotating parts. I've found out about the rattle:- There are two pins that sit inside the springs - these are the bits that rattle. So rattle is good (in this case). I'm a bit unsure about the bluing though... what do you think could have caused it? (I know a lot of heat but - when / why etc etc - It isn't evidence of heat treatment is it?)
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits! |
#3
|
||||
|
||||
Forget about it - I've talked myself out of it - I'm being too critical - it is probably heat treatment bluing...
Leave me to it for long enough and I'll answer my own questions - I've changed the thread title so now at least you've all got some picture to look at!
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits! |
#4
|
|||
|
|||
Do you have a build thread on the engine?
__________________
1983 300D 285,000 1948 willys fuel injected, tons, 39.5 PBR's 2000 PSD pumped for pulling.. |
#5
|
||||
|
||||
Hi Jeff,
I'm working on it - I promised one in December (http://www.peachparts.com/shopforum/showthread.php?t=289490) but the engine still isn't complete yet. I'm a fair weather mechanic and it has been bitterly cold this winter. That's my piss poor excuse - and I'm sticking to it!
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits! |
#6
|
|||
|
|||
The discoloration is from the heat treatment hardening.
|
#7
|
||||
|
||||
Thanks I realise that now - I put myself into a flat spin back there...
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits! |
#8
|
|||
|
|||
Cool, I'll be looking for it. Thanks
__________________
1983 300D 285,000 1948 willys fuel injected, tons, 39.5 PBR's 2000 PSD pumped for pulling.. |
#9
|
||||
|
||||
X2 correct !!
Army, Konstan went through the timing device some time ago at the start of his rebuild. The most important thing is to make sure the end float is in spec. Have a look at some of his threads from 6 months ago. I just remembered that other thing for you, will get onto it for Mondays post !!
__________________
Grumpy Old Diesel Owners Club group I no longer question authority, I annoy authority. More effect, less effort.... 1967 230-6 auto parts car. rust bucket. 1980 300D now parts car 800k miles 1984 300D 500k miles 1987 250td 160k miles English import 2001 jeep turbo diesel 130k miles 1998 jeep tdi ~ followed me home. Needs a turbo. 1968 Ford F750 truck. 6-354 diesel conversion. Other toys ~J.D.,Cat & GM ~ mainly earth moving |
#10
|
||||
|
||||
Quote:
For those of you who have found this thread but not Konstan's here's a link to the page:- http://www.peachparts.com/shopforum/showthread.php?p=2435191&highlight=timing+device#post2435191 (It is a monster thread)
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits! |
#11
|
||||
|
||||
I always wondered what one of those things looked like on the inside.
