420 console panel into a 300SD?
I found a newly installed wood console panel in a 420 at the PNP today.
I was poking around in another car when it came out on the forklift. I had out of the car 10 minutes after they set it down. The rest of the wood was trashed, so it's obviously a new replacement. Says Behr on the back. I just need to figure out the wiring for the windows. Can anyone help me out on this? As always, thanks, Jeff
__________________
1984 300SD 300,000 miles--two tank WVO setup 2.88 diff & 500SEL anti-squat rear end |
#2
|
||||
|
||||
Was that out of a late W126, like 1990 or 91? If so I think you'll find the opening in the wood for the shifter is a different size.
__________________
1991 350SDL. 230,000 miles (new motor @ 150,000). Blown head gasket Tesla Model 3. 205,000 miles. Been to 48 states! Past: A fleet of VW TDIs.... including a V10,a Dieselgate Passat, and 2 ECOdiesels. 2014 Cadillac ELR 2013 Fiat 500E. |
#3
|
||||
|
||||
I hope you took the connectors from the 420 as well. Then it'll be little more work than moving pins from your harness to the later connectors.
Sixto 87 300D |
#4
|
|||
|
|||
The shifter openings are exactly the same and, yes, I did get all the
connectors with plenty of wire. Not sure of the year on that 420, but yeah, later model. Both 126 so I should be able to get it to work. The new outside mirror control also has an extra pin in #3 that's wired. The 300SD is missing that pin. Jeff
__________________
1984 300SD 300,000 miles--two tank WVO setup 2.88 diff & 500SEL anti-squat rear end |
#5
|
||||
|
||||
That's because the later mirror control lights up at night
-J
__________________
1991 350SDL. 230,000 miles (new motor @ 150,000). Blown head gasket Tesla Model 3. 205,000 miles. Been to 48 states! Past: A fleet of VW TDIs.... including a V10,a Dieselgate Passat, and 2 ECOdiesels. 2014 Cadillac ELR 2013 Fiat 500E. |
#6
|
|||
|
|||
OK, makes sense. So, there's an extra wire on each window switch, as well.
I assume those light up? Any suggestions on where to tie everything in so that I have a nice new Xmas tree in July? Jeff
__________________
1984 300SD 300,000 miles--two tank WVO setup 2.88 diff & 500SEL anti-squat rear end |
#7
|
||||
|
||||
Does the shift gate use a bulb or a fiber optic cable?
Otherwise the ashtray and lighter are illuminated and nearby. Sixto 87 300D |
#8
|
|||
|
|||

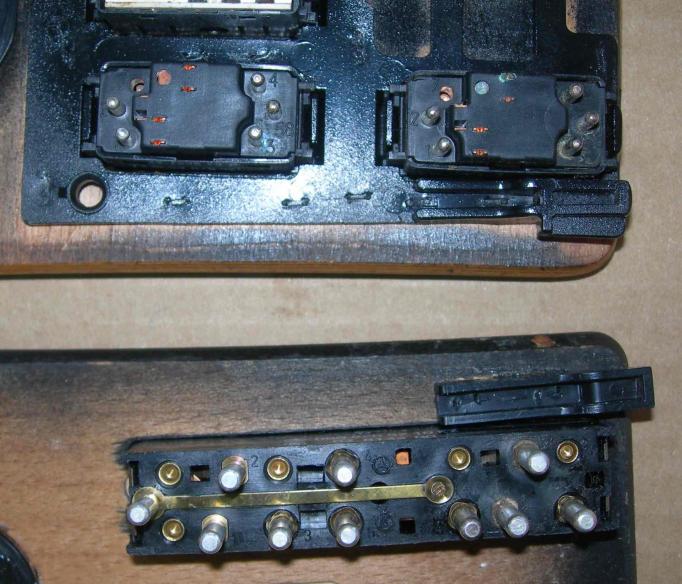

The panel installed successfully, but I had to rewire all the switches.
Not plug & play. I wouldn't have done it if the wood hadn't been perfect. I had to use the existing passenger mirror control and cut down the plastic housing to fit in the new hole. I think the '89 420 mirror has two motors-- one up and down and one side to side. I think the existing mirror has one motor with some sort of clutch. This according to schematics Sixto was so nice to send me. The mirrors are also heated. The clips are different for where they slide into the console and just barely work. Grounds are all wired differently and some color codes were squirrely but everything works. Thanks again Sixto, Jeff
__________________
1984 300SD 300,000 miles--two tank WVO setup 2.88 diff & 500SEL anti-squat rear end |
#9
|
||||
|
||||
Nice!
Hey, Jeremy, I'll bet you could get 6 gauges in there Sixto 87 300D |
#10
|
|||
|
|||
For future reference on my part, as I need to replace mine. Could you not have just popped out and re used your old switches? Maybe you could have but just wanted these that look so good?
__________________
___________________________________________ '86 300 SDL '83 300D Astral Silver/Blue 354k miles.. 326k miles.. http://www.peachparts.com/shopforum/...ine=1310252049 |
#11
|
||||
|
||||
IIRC 81-85 126s have ganged front and rear window switches through a common slot in the console. 86-91 126s have individual switches through individual holes in the console.
Sixto 87 300D |
