Alternator adjustment question

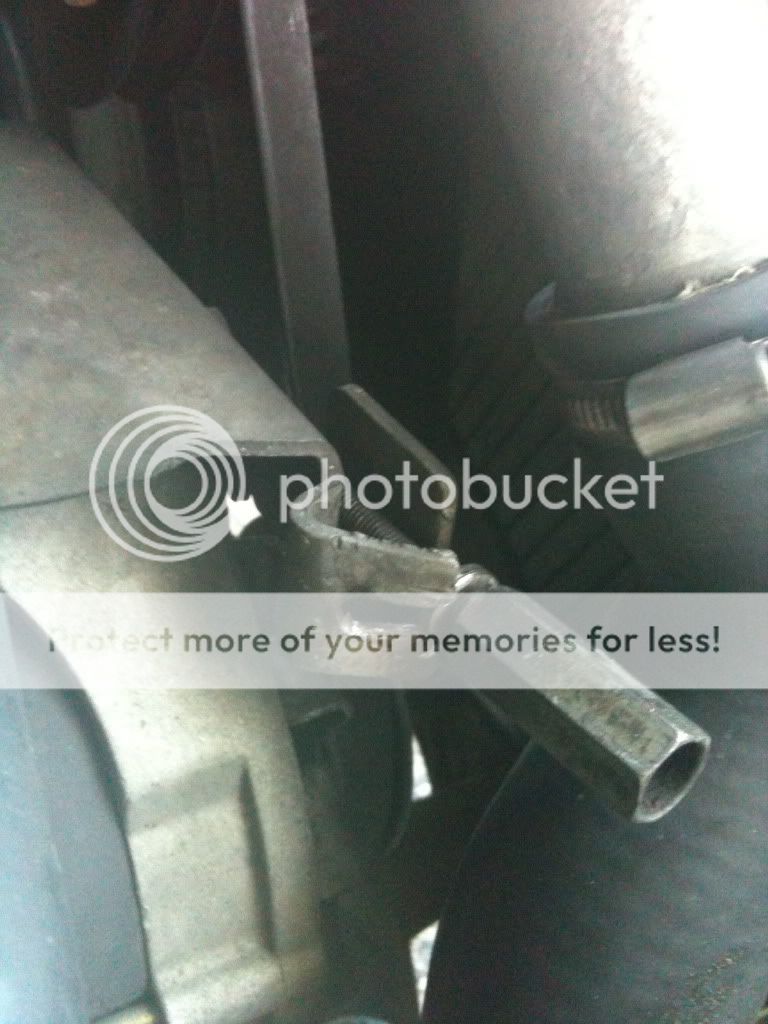

the alternator belt on my 81 240D has been squealing a bit, and the belt seems a little loose. the adjustment bracket seems to be bent where the adjustment bolt fits into it, and im not sure how to go about correcting it, and tightening the alternator belt. do i need to bend/reshape the bracket for the adjustment screw to work? can i even do that or do i need a new bracket? i guess im not really even sure how the adjustment screw fits in the bracket to begin with... here are some pics of what i mean:











does anyone have a photo of what this SHOULD look like?

__________________
1981 240D ... 265k
1977 240D ... 265k
1977 240D ... 250k
Reply With Quote
  #2
Old 08-20-2011, 08:21 PM
toomany MBZ's Avatar
Registered User

Join Date: Nov 2006
Location: central Va
Posts: 7,820
It should be at a sharper angle. The slot in the adjusting nut should slide into the fork.

Be very careful. If you can, remove it from the car, heat it up and bend it into shape.
__________________
83 SD

84 CD
Reply With Quote
  #3
Old 08-20-2011, 08:45 PM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,835
yours looks like someone tried to loosen the alt with it, before loosening the rear three bolts/nut...
FIRST loosen the three 17mm bolts from the rear of the alternator.
then loosen the 13mm nut on the bracket bolt.
then pivot the thin threaded part up out of the way, and remove the belt from the alt, and let it dangle... don't worry, it can't go anywhere, the ps and a/c belts keep it on.
anyway, take a hammer and gently tap the fork part back flat so it almost touches the bracket again, and slide the 13mm nut groove into the fork.
then slide the alt out far enough to get the threaded rod into the nut, and put the belt back on. then tighten the nut slowly until the belt feels tight, then tighten the three bolts on the back, and you are done!
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #4
Old 08-20-2011, 11:20 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 51,036
If you happen to snap off the long skinny shaft:
