  #1
Old 11-29-2011, 09:59 PM
Registered User

Join Date: Mar 2011
Posts: 5
Question Glow Plug Help

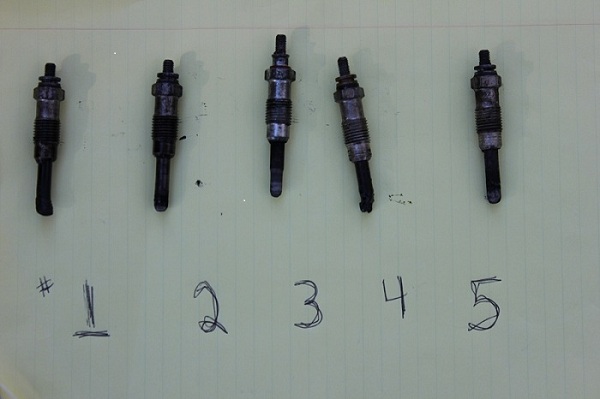

Hi, replaced my glow plugs last weekend and two look really strange. Last summer the mechanic had the car for two months and returned it running better, but not perfect and said something was wrong with #4 but could figure it out. It smokes a bit, keeps excellent oil pressure (even when hot) has 220K (actual) on it, and seemed like it was missing. Last spring I did a compression test on it and four of the cylinders were in the 310-320 range #4 was lower than the others (290). Perked up with a little oil squirted into it. Figured I'd drive it. With weather getting colder and dash glow plug light no longer working, it was time to replace the plugs. Reamed out all the plug areas, and replaced with new. Car started much easier, but still smokes quite a bit. #1 plug looks like the tip is bent. Hard to tell from the picture, but #4 glow plug looks like the end was flattened an someone cut a "v" into it. My injectors are have less than 20K on them, but could this be caused by bad injectors dumping fuel on them?

Thanks,

Attached Thumbnails
Glow Plug Help-glow-plugs-3-copy.jpg
Reply With Quote
  #2
Old 11-29-2011, 10:02 PM
Registered User

Join Date: Jan 2002
Posts: 18,350
Some weird **** going on there.
__________________
1977 300d 70k--sold 08
1985 300TD 185k+
1984 307d 126k--sold 8/03
1985 409d 65k--sold 06
1984 300SD 315k--daughter's car
1979 300SD 122k--sold 2/11
1999 Fuso FG Expedition Camper
1993 GMC Sierra 6.5 TD 4x4
1982 Bluebird Wanderlodge CAT 3208--Sold 2/13
Reply With Quote
  #3
Old 11-29-2011, 10:06 PM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,835
... I recommend you take some MACRO photo's of those mashed plugs and post them here!
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #4
Old 11-29-2011, 10:35 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 51,038
If the Injector Nozzle is worn and spraying on the Golw Plug it can melt and even cut off the tip of a Glow Plug and even burn through the Prechamber.

Take a good look and see if the tips of the #1 and #4 looks like it is being burned off.

Also if some of those Glow Plugs are Autolite Glow Plugs; after 6 months use I had 2 of my Autolite Glow Plug tips swell up to the extent that I had trouble removinging them from the Head.
I have also seen pics on one of the forums where it looked as iff the Autolite Glow Plug tips had explodded.
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #5
Old 11-30-2011, 04:56 AM
layback40's Avatar
Not Banned

Join Date: Nov 2009
Location: Victoria Australia - down under!!
Posts: 4,023
Hey can you put a ohm meter on those & post readings?
Have you tried to see if they still glow?
Purely for interest.
I have seen worse
You would be very foolish not to replace all of them
__________________
Grumpy Old Diesel Owners Club group

I no longer question authority, I annoy authority. More effect, less effort....

1967 230-6 auto parts car. rust bucket.
1980 300D now parts car 800k miles
1984 300D 500k miles
1987 250td 160k miles English import
2001 jeep turbo diesel 130k miles
1998 jeep tdi ~ followed me home. Needs a turbo.
1968 Ford F750 truck. 6-354 diesel conversion.
Other toys ~J.D.,Cat & GM ~ mainly earth moving
Reply With Quote
  #6
Old 11-30-2011, 05:30 AM
Registered User

Join Date: Mar 2011
Posts: 5
Mashed is definitely the way to describe number 4 (and clipped - with wire cutters. I'll post new pictures, but can't until Saturday. Not sure what brand they were all installed by mechanics. I did the new ones, and they are Monarks. I just don't want to kill the new ones if it's an injector issue, and I never thought about a prechamber issue - how can these be diagnosed?
Reply With Quote
  #7
Old 12-03-2011, 01:10 PM
Registered User

Join Date: Mar 2011
Posts: 5
The deformed glow plug from #4 is shown first. Was going to show the deviated one from #1 , but can't get the file resized to upload. The #4 (shown) is the one I'm most concerned with. Any thoughts? Would like some opinions before running it again. (don't want to mess up the new glow plugs)
Attached Thumbnails
Glow Plug Help-2011-12-05-025.jpg
Reply With Quote
  #8
Old 12-03-2011, 01:20 PM
DeliveryValve's Avatar
Chairman of my Benz

Join Date: Jun 2006
Location: Central California
Posts: 4,159
I would suspect either the injector is cutting through it or some debris in the prechamber causing it. I suggest pulling the prechamber and inspecting it for damage.



.
__________________
1983 123.133 California
- GreaseCar Veg System


Reply With Quote
  #9
Old 12-03-2011, 02:05 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 51,038
Quote:
Originally Posted by mike2300 View Post
The deformed glow plug from #4 is shown first. Was going to show the deviated one from #1 , but can't get the file resized to upload. The #4 (shown) is the one I'm most concerned with. Any thoughts? Would like some opinions before running it again. (don't want to mess up the new glow plugs)
I have seen pics on one of the forums of Autolite Glow Plugs exhibited the same exploded tip.
I know that after 6 Months of use 2 of my Autolite Glow Plugs had tips swollen enought that I had a lot of trouble pulling them out.
And the above happend in an Engine with Injectors that I had previously rebuilt with new Injector Nozzles.

I Have had no more issues with swollen Glow Plug tips since I got rid of the Autolites.
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #10
Old 12-03-2011, 02:11 PM
Registered User

Join Date: Jan 2002
Posts: 18,350
Since the deformed tip of the plug seems slightly wider than the rest of the body of the plug, I'm thinking that the problem was caused from the inside out rather than from the outside in. Hence it must have exploded rather than been eroded by a faulty injector???????
__________________
1977 300d 70k--sold 08
1985 300TD 185k+
1984 307d 126k--sold 8/03
1985 409d 65k--sold 06
1984 300SD 315k--daughter's car
1979 300SD 122k--sold 2/11
1999 Fuso FG Expedition Camper
1993 GMC Sierra 6.5 TD 4x4
1982 Bluebird Wanderlodge CAT 3208--Sold 2/13
Reply With Quote
  #11
Old 12-07-2011, 08:47 PM
Registered User

Join Date: Mar 2011
Posts: 5
Another concern

Thanks for the input, while thinking about this, another concern came up. Is the end of that glow plug (or glow plugs because the last mechanic to work on it noted the plug he pulled out was "weird") floating around in my prechamber causing problems? I don't want to go after stuff that's not there, but the engine was not running that well before.

Reply With Quote
