92 300D glow plug ?

When I try to start my car the glow plug light does not come on anymore and starts real rough, Im guessing I have some bad glow plugs? Funny thing is, the glow plug light does not come on right away but does come on when the car is started and stays on for about one minute. I know there is a after glow on this car when the temp is cold, why would the plugs work after the car is started and not before the car is started?

Reply With Quote
  #2
Old 11-30-2011, 01:51 PM
Registered User

Join Date: Oct 2004
Location: McAllen, TX
Posts: 369
just because the light comes on doesn't necessarily mean they are glowing. i just changed all plugs in my friends 90 300d with the same symptoms.. all plugs were bad.
__________________
Reply With Quote
  #3
Old 11-30-2011, 02:24 PM
Registered User

Join Date: Jul 2004
Location: Barrington, RI
Posts: 5,875
Quote:
Originally Posted by 04 Diesel View Post
When I try to start my car the glow plug light does not come on anymore and starts real rough, Im guessing I have some bad glow plugs? Funny thing is, the glow plug light does not come on right away but does come on when the car is started and stays on for about one minute. I know there is a after glow on this car when the temp is cold, why would the plugs work after the car is started and not before the car is started?
That symptom indicates that one or more glow plugs are bad....it doesn't indicate that the plugs are somehow working after the car has started.
__________________
14 E250 Bluetec "Sinclair", Palladium Silver on Black, 153k miles
06 E320 CDI "Rutherford", Black on Tan, 171k mi, Stage 1 tune, tuned TCU
91 300D "Otis", Smoke Silver, 142k mi, wastegate conversion

19 Honda CR-V EX 61k mi
Fourteen other MB's owned and sold
1961 Very Tolerant Wife
Reply With Quote
  #4
Old 11-30-2011, 02:53 PM
compress ignite's Avatar
Drone aspiring to Serfdom

Join Date: Feb 2004
Location: 32(degrees) North by 81(degrees) West
Posts: 5,554
124.128 Pre-Glow System

Remember this system in the OM602 configuration (And Newer OM603s) is
the "Smart" system (ELECTRONIC).

1.It's got the I.C. light turned off to let you know you have at least one bad Glow Plug.
[the one minute or so WAIT period before the Light Illuminates is to give you time to recognize the Signal (No I.C. Bulb Illumination)
2.It's still delivering the required voltage to all the Glow Plugs.
3.The Bad Glow Plug(s) are not "Firing Up" which is why you get the "Shakes" and "Smoke".
4.The Bulb's Illumination after start lets you know the System (Afterglow) is working.

Hoo Boy,Sure sounds good?

Here Ya Go:
Attached Thumbnails

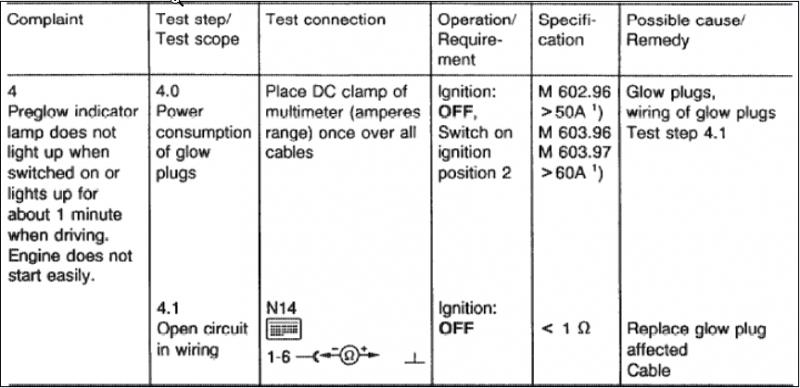

92 300D glow plug ?-screenhunter_06-nov.-30-15.31.jpg   92 300D glow plug ?-screenhunter_05-nov.-30-15.31.jpg
__________________
'84 300SD sold
124.128

Last edited by compress ignite; 11-30-2011 at 03:28 PM.
Reply With Quote
  #5
Old 11-30-2011, 04:59 PM
Registered User

Join Date: Jun 2007
Location: Waterloo Illinois
Posts: 1,336
Thanks, new plugs will be here next friday. I replaced the plugs about 2 years ago, should they have lasted longer?
Reply With Quote
  #6
Old 11-30-2011, 05:57 PM
92 300D 2.5L OBK #59

Join Date: Feb 2007
Location: Central FL
Posts: 1,108
Depends on the brand of glow plugs. Bosch usually have a good life. Depends on glow cycles and miles I believe.
__________________
92 300D 2.5L OM602 OBK #59
Reply With Quote
  #7
Old 12-09-2011, 09:45 PM
Registered User

Join Date: Jun 2007
Location: Waterloo Illinois
Posts: 1,336
New glow plugs are in and she fires up just fine now.
