#1
|
|||
|
|||
Transmission Drain Plug Seals/Washers
91 and 92 300D. I'm told that the drain plugs for the torque converter and the transmission pan have seals/washers (smaller aluminum and larger copper, respectively). Do these need to be replaced when the fluid is changed? If so, where would I get them (other than the dealer)?
__________________
14 E250 Bluetec "Sinclair", Palladium Silver on Black, 153k miles 06 E320 CDI "Rutherford", Black on Tan, 171k mi, Stage 1 tune, tuned TCU 91 300D "Otis", Smoke Silver, 142k mi, wastegate conversion 19 Honda CR-V EX 61k mi Fourteen other MB's owned and sold 1961 Very Tolerant Wife |
#2
|
|||
|
|||
Looks like they come in the kit but not if you purchase the filter and the gasket separately (which is what I did).
__________________
14 E250 Bluetec "Sinclair", Palladium Silver on Black, 153k miles 06 E320 CDI "Rutherford", Black on Tan, 171k mi, Stage 1 tune, tuned TCU 91 300D "Otis", Smoke Silver, 142k mi, wastegate conversion 19 Honda CR-V EX 61k mi Fourteen other MB's owned and sold 1961 Very Tolerant Wife |
#3
|
|||
|
|||
Where ever you purchased the filter and the gasket separately should have them.
__________________
1979 240D Caledonia Green/cream gone 1982 240D stick Ivory/Palimino 1999 E300D White/grey |
#4
|
||||
|
||||

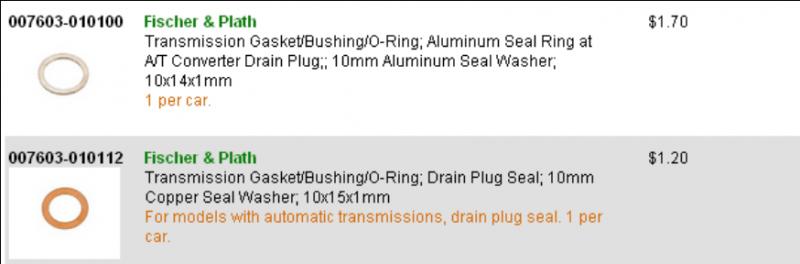

"Seals"
10X14X1
10X15X1 all measurements in mm These are One (1) time use only,and would need to be replaced at each service. [I'm not EVEN going to get into your NOT being a Metallurgist] Call Phillip in the A.M.
__________________
'84 300SD sold 124.128 |
#5
|
||||
|
||||
Humorists
(Does this mean they "Humor" people's apparent Eccentricities ?
Or "Crack" Jokes, Or Both ?) I'm convinced, that we're going to find out Shertex is a "Challenged" individual who is unable to operate search devices...at certain times. Or An errant Comedian software program.
__________________
'84 300SD sold 124.128 |
#6
|
||||
|
||||
hmmm I didnt notice one in the drain plug of my 300sd...maybe that explains the SLIGHT drip...I should look for one and will report back on what i find, FSM does not indicate a washer on either the pan or TC drains
__________________
-SpecialDelivery 1985 300CD Silver/Blue H&R Suspension (Sold, still cryin over that) 1982 300SD Silver/Blue '85 OM617 (Sold) 1982 300D - Blue/Blue (Sold) |
#7
|
|||
|
|||
Quote:
__________________
14 E250 Bluetec "Sinclair", Palladium Silver on Black, 153k miles 06 E320 CDI "Rutherford", Black on Tan, 171k mi, Stage 1 tune, tuned TCU 91 300D "Otis", Smoke Silver, 142k mi, wastegate conversion 19 Honda CR-V EX 61k mi Fourteen other MB's owned and sold 1961 Very Tolerant Wife |
#8
|
||||
|
||||
"Search"
If I "Look" for my KEYS in the Ignition ,I'll never find them.
(They're not "Kept" there) 1.The FSM is (because of many reasons) just a representation of a Service Manual.Viewing it as the "Bible" for your model WILL INEVITABLY GET YOU IN TROUBLE. The Default for the location of Parts/Parts Numbers for Mercedes Imported into the United States is the EPC. I will admit,because of all the Folderol you must go through to even access the EPC,to sneaking off to the Verboten Parts Supplier's Website.'Cause they use Mercedes Parts Numbers and have Neat Pictures of the Parts.
__________________
'84 300SD sold 124.128 |
#9
|
||||
|
||||
Quote:
They're both the same size. I find using the epc easy, but I have windows XP partition for that.
__________________
83 SD 84 CD |
#10
|
|||
|
|||
Automatic transmission fluid pan drain plug washer material.
For the 1981 240D, I.D.14mm, O.D.20mm, THK 1.5mm
The torque specified in the MB Maintenance Manual USA, Volume 2, page 2702, specifies a torque of 14Nm which is for aluminum washers. The copper washers which came with the filter kit supplied by Mercedes Benz required a much higher torque to prevent leakage. The final torque applied was 29.22Nm. Not sure if there are any damage to the mating parts, but the leak stopped. The Torque Wrench Deviation (TWD) of the torque wrench used (JETCO ED-50F, calibration range: 6.7 – 67 Nm) was + .1% at the application range. The washers (2 required) ordered from Mercedes Benz were made of aluminum PN: N 007603-014104, Seal Ring, Oil Filler to Oil Pan. Last edited by jotscan; 06-11-2013 at 04:16 PM. Reason: Added vehicle data |
#11
|
|||
|
|||
Jotscan, you should clarify what vehicle you are talking about because it must be different than the rest of this thread. This thread mostly discussed seal rings with a 10 mm ID, but the part number you listed is a 14x20x1.5 aluminum seal ring, so I doubt it is for the same transmission.
__________________
1968 220D, w115, /8, OM615, Automatic transmission. My 1987 300TD wagon was sold and my 2003 W210 E320 wagon was totaled (sheds tear). |
