Anyone recognize this rubber part found under battery tray?

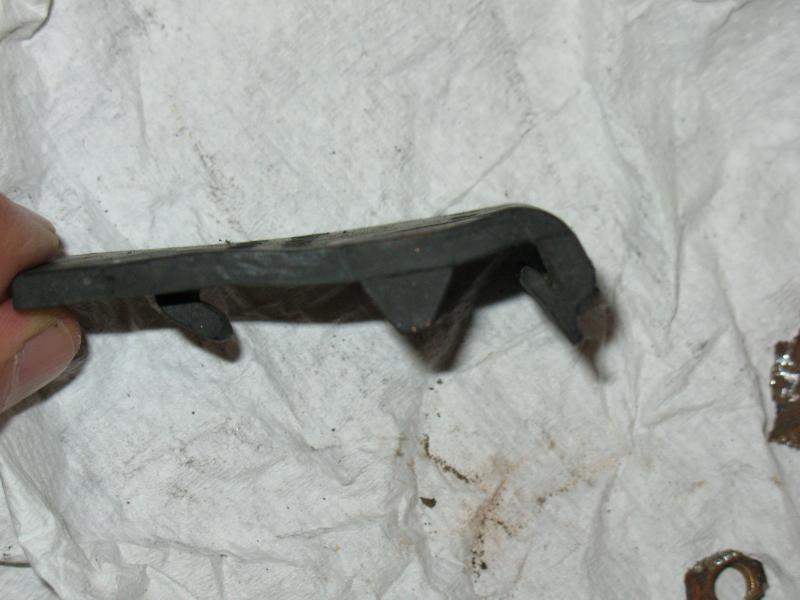

You may recall that I had that plugged drain under the battery tray of my 240D a while back. I've been cleaning up the area under there, getting ready to POR the rusty areas, and I found this rubber piece mixed in with the rusty chips of the old battery tray. Any idea of what it is?

The small metal pieces on the paper towel are the last remnant of the washer nut that was holding the bottom of the tray to the fender, by the way; when I went to work on it with the Dremel it was just an unrecognizable lump of rust! I'm getting better at dealing with these.

Kurt

Attached Thumbnails
Anyone recognize this rubber part found under battery tray?-img_6056.jpg   Anyone recognize this rubber part found under battery tray?-img_6057.jpg
__________________
- '79 240D - engine swap complete! Engine broken in! 28-31 mpg! Lovin' the ride!
- '86 190D (W201-126) - 2.5 NA engine, 5 speed, cloth interior, manual climate controls, 33-34 mpg (sold to forum member).
Reply With Quote
  #2
Old 07-19-2012, 11:31 AM
Registered Hack

Join Date: Mar 2008
Posts: 4,642
I think it might go on the hood. Acts kinda like a striker / damper / anti-vibration.

I just don't recall seeing one that looked like that. Does it have an MB logo / number?
__________________

Reply With Quote
  #3
Old 07-19-2012, 12:08 PM
Chad300tdt's Avatar
Benzless Scoutmaster

Join Date: May 2007
Location: North Wales, PA
Posts: 4,001
It goes on the pinch rail of the inner fender. There should be one on each side and they press into a square hole.
__________________
Chad
2006 Nissan Pathfinder LE
1998 Acura 3.0 CL
OBK#44
"Pleasure in the job puts perfection in the work." - Aristotle (384-322 B.C.)

SOLD
1985 300TD - Red Dragon
1986 300SDL - Coda
1991 - 300TE
1995 - E320
1985 300CD - Gladys
Reply With Quote
  #4
Old 07-19-2012, 01:14 PM
Registered User

Join Date: Mar 2005
Location: Yountville, CA
Posts: 1,176
Quote:
Originally Posted by gastropodus View Post
You may recall that I had that plugged drain under the battery tray of my 240D a while back. I've been cleaning up the area under there, getting ready to POR the rusty areas, and I found this rubber piece mixed in with the rusty chips of the old battery tray. Any idea of what it is?

The small metal pieces on the paper towel are the last remnant of the washer nut that was holding the bottom of the tray to the fender, by the way; when I went to work on it with the Dremel it was just an unrecognizable lump of rust! I'm getting better at dealing with these.

Kurt
too funny, I have that piece (triangular shape) in my glove box - pinch panel, inner fender?? Will have to look now -
Reply With Quote
  #5
Old 07-20-2012, 12:49 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Quote:
Originally Posted by Chad300tdt View Post
It goes on the pinch rail of the inner fender. There should be one on each side and they press into a square hole.
As in the cover that goes over the hole between the inner wheel arch and the engine bay where the front torsion bar pokes its way through?
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #6
Old 07-20-2012, 04:23 AM
Registered User

Join Date: Jun 2006
Location: Durham, NC
Posts: 28
Hood Hinge Bumper

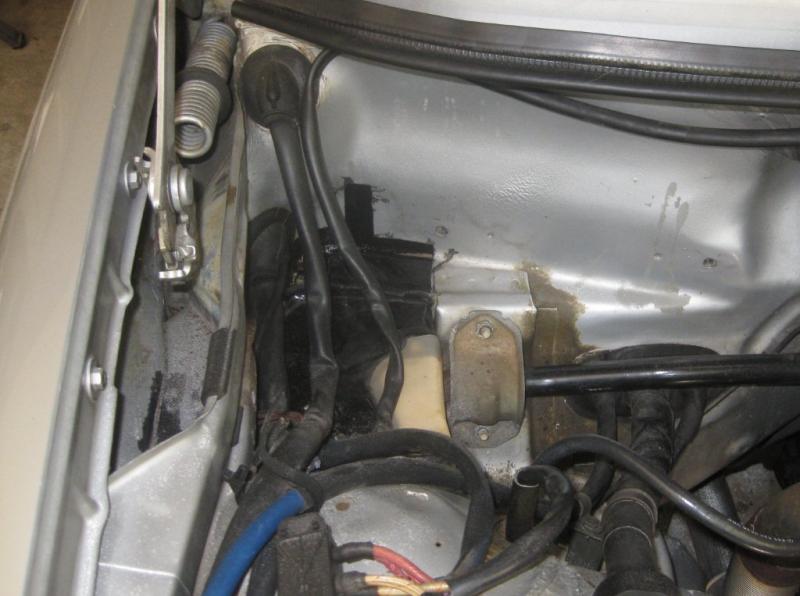

The rubber piece attaches to the upper wheel house structure and serves as a bumper for the hood hinge assembly when in the retracted position. The bumpers are present on both the left and right sides.

See the left side of the attached image.
Attached Thumbnails
Anyone recognize this rubber part found under battery tray?-mb-front-brakes-001.jpg
__________________
Blair Tyson
1985 300D
300,000 + miles
Reply With Quote
  #7
Old 07-20-2012, 06:00 AM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,835
heh. I' ve got several of these... I wondered what they were for.
cool post!
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #8
Old 07-20-2012, 09:07 AM
Chad300tdt's Avatar
Benzless Scoutmaster

Join Date: May 2007
Location: North Wales, PA
Posts: 4,001
Oops. Sorry, I was referring to this piece.
Attached Thumbnails
Anyone recognize this rubber part found under battery tray?-rubber.jpg
__________________
Chad
2006 Nissan Pathfinder LE
1998 Acura 3.0 CL
OBK#44
"Pleasure in the job puts perfection in the work." - Aristotle (384-322 B.C.)

SOLD
1985 300TD - Red Dragon
1986 300SDL - Coda
1991 - 300TE
1995 - E320
1985 300CD - Gladys
Reply With Quote
  #9
Old 07-20-2012, 11:12 AM
daw_two's Avatar
diesel enthusiast

Join Date: Jan 2007
Location: Germantown, TN
Posts: 5,449
please help this sight challenged old man....

Someone needs to highlight or circle this for me. I don't see it in the left side of the image.


Quote:
Originally Posted by aeromechanix View Post
The rubber piece attaches to the upper wheel house structure and serves as a bumper for the hood hinge assembly when in the retracted position. The bumpers are present on both the left and right sides.

See the left side of the attached image.
__________________
daw_two
Germantown, TN

Links:
Sold last car --- 05/2012 1984 300D Light Ivory, Red interior
Cluster Needles Paint
New Old Stock (NOS) parts

Past:
3/2008 1986 300SDL "Coda"
04/2010 1965 190D(c) "Ben"
& many more
Reply With Quote
  #10
Old 07-20-2012, 02:44 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
I've got a feeling Gastropodus is looking at part number 92 in this picture



And I think Chad's talking about 74

And at first I thought he meant another bit that isn't on this picture!
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #11
Old 07-20-2012, 02:47 PM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,835
Quote:
Originally Posted by daw_two View Post
Someone needs to highlight or circle this for me. I don't see it in the left side of the image.
ok?
Attached Thumbnails
Anyone recognize this rubber part found under battery tray?-mb-front-brakes-001.jpg
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #12
Old 07-20-2012, 04:20 PM
daw_two's Avatar
diesel enthusiast

Join Date: Jan 2007
Location: Germantown, TN
Posts: 5,449
Thanks, vstech!!!
__________________
daw_two
Germantown, TN

Links:
Sold last car --- 05/2012 1984 300D Light Ivory, Red interior
Cluster Needles Paint
New Old Stock (NOS) parts

Past:
3/2008 1986 300SDL "Coda"
04/2010 1965 190D(c) "Ben"
& many more
Reply With Quote
  #13
Old 07-21-2012, 01:54 PM
Registered User

Join Date: May 2007
Location: Out in the Boonies of Hot, Dry, Dusty, Windy Nevada
Posts: 9,652
I think most of those hood spring bumpers are missing, with time they dry out and fall off. I have tried to keep the one on the 85 in place, but won`t stay on.

Just checked the 240, and they both are still in place.

Wonder if the part is still available, or another unobtanium part?

Charlie

__________________
there were three HP ratings on the OM616...

1) Not much power
2) Even less power
3) Not nearly enough power!! 240D w/auto

Anyone that thinks a 240D is slow drives too fast.

80 240D Naturally Exasperated, 4-Spd 388k DD 150mph spedo 3:58 Diff
