Engine Cleanup


As part of the process of installing the "test pipe", in the 107 diesel, I thought it would be a good time to get the engine cleaned up. I had to pull the turbo and manifolds so the entire side of the engine is exposed for cleaning.

The intake manifold was an absolute mess, but it cleaned up nicely.

http://www.peachparts.com/shopforum/...1&d=1343855300

The turbo and exhaust manifold are next.

I want to thoroughly degrease and pressure wash the engine so I needed a way to protect the ports while I do the job - this is what I came up with.

http://www.peachparts.com/shopforum/...1&d=1343856512

http://www.peachparts.com/shopforum/...1&d=1343855400

It's a piece of 3/16" angle aluminum. I'll use the old gasket and smear it with grease then cinch down the port protector to provide a water tight seal. I originally thought that the angle would provide some needed dimensional stability, but I don't think so, so I cut most of the angle off.

:2thumbsup Looking good

Good time to test fit a non-trap turbo setup :)

Sixto
87 300D^2

You mean something like this?

http://www.peachparts.com/shopforum/...testpipe05.jpg

You know what I meant :)

Sixto
87 300D^2

Continued with cleaning up engine components. Focusing on the exhaust section now.

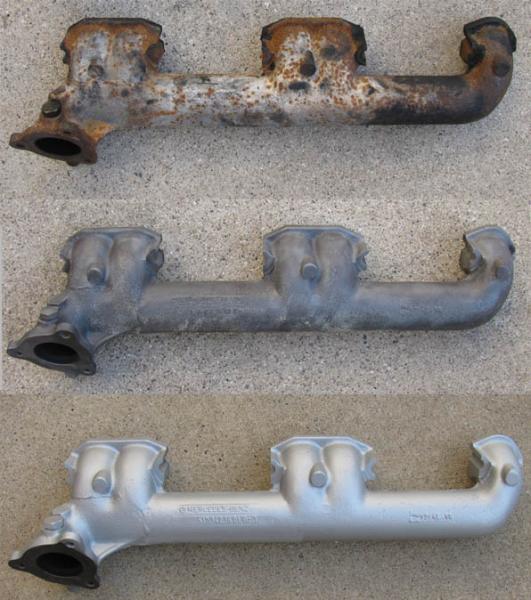

Here's a before, during and after picture of the exhaust manifold. In prep for paint, I wire brushed it, then media blasted it and then painted it with VHT header paint.

http://www.peachparts.com/shopforum/...1&d=1344018609

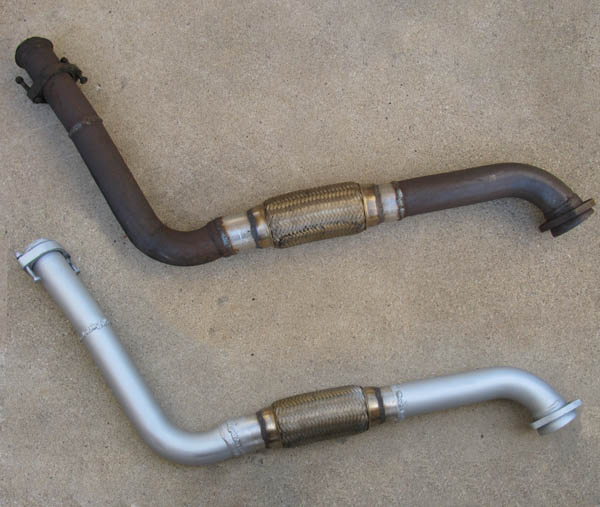

I then did the down tube.

http://www.peachparts.com/shopforum/...1&d=1344019724

Then the turbine housing

http://www.peachparts.com/shopforum/...1&d=1344019881

http://www.peachparts.com/shopforum/...1&d=1344019992

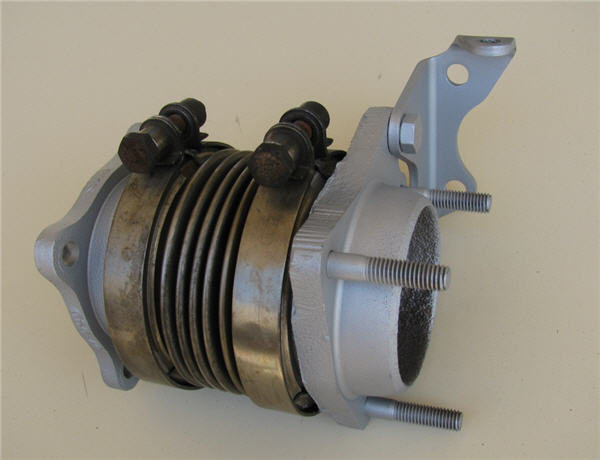

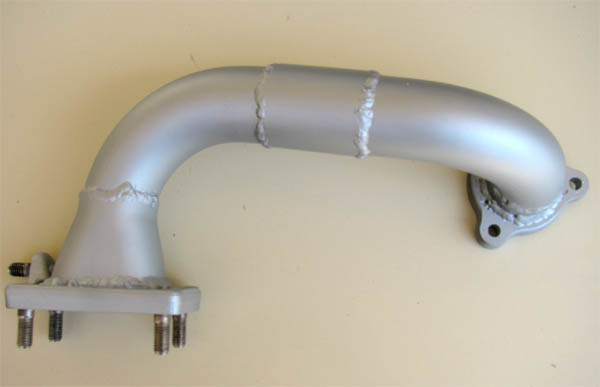

And I fabbed up a new test pipe and painted it with VHT header paint to match.

http://www.peachparts.com/shopforum/...1&d=1344020241

Now when my gasket kit comes in, I'll be ready install everything.

Nice!

How about Jet-Hot coating and Thermo-Tec wrap while you're in there?

http://www.w124performance.com/image...hermo-tec4.jpg
Sixto
87 300D^2

I hope the paint is tough enough to stay on e the exhaust parts from the heat.

Check out these guys.
Caps Brite Hot Coatings | Powder Coatings, Ceramic Coatings, Cermakrome, And More

I have seen their stuff and it looks good, they aren`t new kids on the block, they have been doing this for over 20 years.



Charlie

http://www.capsbhc.com/homeheader.jpg

How is this for shinny. couldn`t edit and post this in the above post. :confused:

Charlie

I'm hoping the same thing.

I tried to find some power coat material that would work for exhausts. Obviously there are places that will do it commercially, but I was hoping to find some DIY stuff. No much luck.

The various forums show widely different experiences with the high-temp exhaust paint. Some report good results and others show that it flakes off almost right away. True for all brands.

I elected to try the VHT Flameproof coating which is supposedly good up to 2000 degrees F. If it works, great, and if not, well I tried. On the exhaust manifold I really tried to prep the surface well by wire brushing, media blasting, washing and degreasing. Same for the turbine housing. The down tube just wire brushing.

I guess I'll know soon enough.

The test pipe looks great. Did you cut the flanges off the trap ox to use on your pipe or did you make new ones?

did you just spray the stuff on and let it dry, or did you follow their extensive instructions?

most high temp paint has a baking in procedure to get best results...
hot rod magazine did a writeup on it... but it involved heating the pipes to 450 for 90 minutes or some such... then cooling slowly, then heating to 450 for 30 minutes and cooling slowly...
I think it was VHT high temp metal flake... it's been a decade or so since I read it though...

I recently used high temperature paint on a set of calipers - waste of time. Due to "other problems" I didn't actually go any where with them - zero miles driven - but they were fitted to the car. Within six months they had rust spots showing through.

I degreased, cleaned, shotblasted, coated and cooked the buggers. No hope in this climate!

Cut the flanges off the trap cat. The pipe is 180 degree 3" radius mandrel bent 1-7/8 and a 2" two-into-one piece that provided the entry into the turbo flange as well as sleeves for the other joints. Got the exhaust pipe pieces at a local dune buggy shop.

Here is mach4's fabrication thread....

http://www.peachparts.com/shopforum/diesel-discussion/321831-cali-617-test-pipe.html


.
